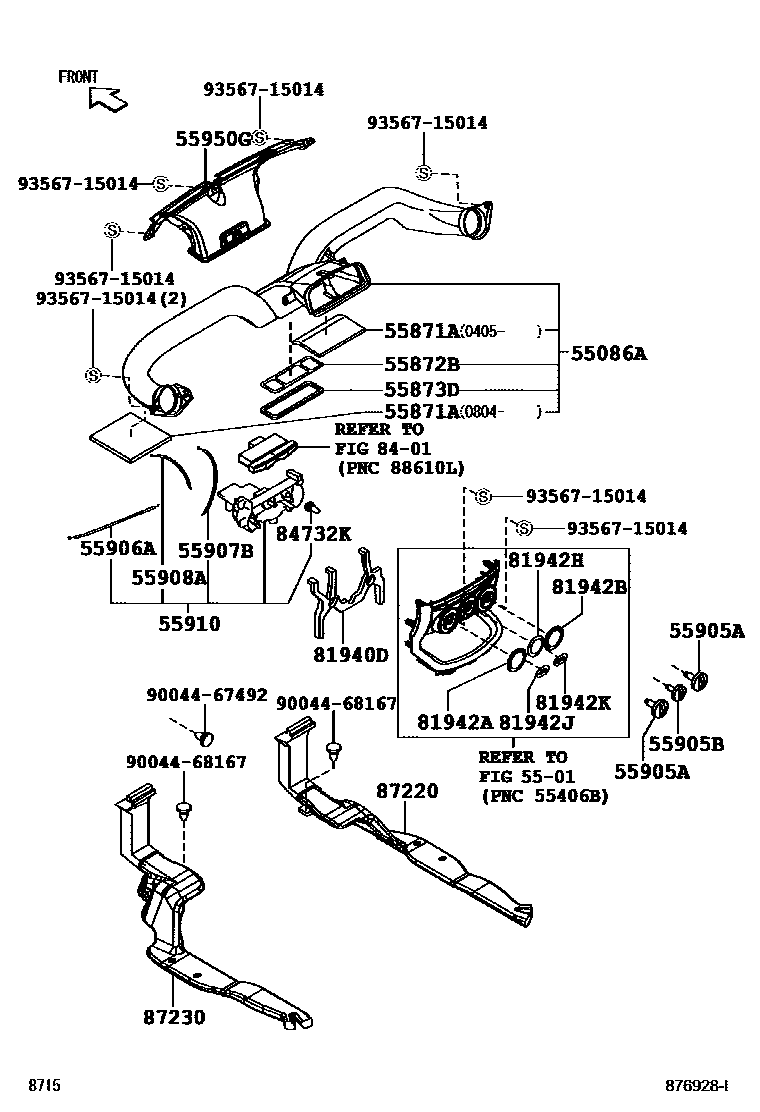

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1 0002 1F-����

5501

55086ADUCT SUB-ASSY, HEATER TO REGISTER, CENTER

main55086-B1010iKGC1#,QNC10200405-201002

main55086-B1030iKGC15..G;KGC10,QNC10..G,X200612-201002

55871ASEAL, AIR DUCT, NO.1

main55871-B1010iKGC1#,QNC10200405-201002

55872BSEAL, AIR DUCT,NO.2

main55872-B1010iKGC1#,QNC10200405-201002

55873DSEAL, AIR DUCT, CENTER

main55873-B1010iKGC1#,QNC10200405-201002

55905AKNOB, HEATER CONTROL

main55905-B1020iKGC1#,QNC10..G,X200405-200511

sub55905-B1060

main55905-B1040iKGC1#,QNC10..RACY200412-201002

main55905-B1060iKGC1#,QNC10..G,X200511-201002

main55905-B1100iKGC10..X;KGC15..G200802-201002

55905BKNOB, HEATER CONTROL, NO.2

main55905-B1030iKGC1#,QNC10..G,X200405-200511

sub55905-B1070

main55905-B1050iKGC1#,QNC10..RACY200412-201002

main55905-B1070iKGC1#,QNC10..G,X200511-201002

main55905-B1110iKGC10..X;KGC15..G200802-201002

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-B1010iKGC1#,QNC10200405-201002

55907BCABLE SUB-ASSY, TEMPERATURE DAMPER CONTROL

main55907-B1010iKGC1#,QNC10200405-201002

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-B1010iKGC1#,QNC10200405-201002

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55902-B1010iKGC1#,QNC10..G,X200405-201002

main55902-B1030iKGC1#,QNC10..RACY200412-201002

55950GNOZZLE ASSY, DEFROSTER

main55950-B1010iKGC1#,QNC10200405-201002

81940DLENS ASSY, HEATER CONTROL

main81940-B1010iKGC1#,QNC10200405-201002

81942ASHEET, HEATER CONTROL NAME, NO.1

main81942-B1030iKGC1#,QNC10..G,X200405-200511

sub81942-B1160

main81942-B1080iQNC10..RACY200412-201002

main81942-B1160iKGC1#,QNC10..G,X200511-201002

81942BSHEET, HEATER CONTROL NAME, NO.2

main81942-B1050iKGC1#,QNC10..G,X200405-200511

sub81942-B1100

main81942-B1100iKGC1#,QNC10200412-201002

81942HSHEET, HEATER CONTROL NAME, NO.3

main81942-B1040iKGC1#,QNC10..G,X200405-200511

sub81942-B1170

main81942-B1090iQNC10..RACY200412-201002

main81942-B1170iKGC1#,QNC10..G,X200511-201002

81942JSHEET, HEATER CONTROL NAME, NO.4

main81942-B1060iKGC1#,QNC10..G,X200405-200511

sub81942-B1180

main81942-B1110iQNC10..RACY200412-201002

main81942-B1180iKGC1#,QNC10..G,X200511-201002

81942KSHEET, HEATER CONTROL NAME, NO.5

main81942-B1070iKGC1#,QNC10..G,X200405-200511

sub81942-B1190

main81942-B1120iQNC10..RACY200412-201002

main81942-B1190iKGC1#,QNC10..G,X200511-201002

8401

84732KBULB, HEATER BLOWER SWITCH

main81936-B1020iKGC1#,QNC10200405-201002

87220DUCT ASSY, AIR

main87220-B1010iKGC1#,QNC10200405-200612

87230DUCT ASSY, AIR, HEATER

main87230-B1010iKGC1#,QNC10200405-200612

9004467492

main90044-67492

9004468167

main90044-68167

9356715014

main93567-15014

25 parts on this diagram · 2 diagrams in section
