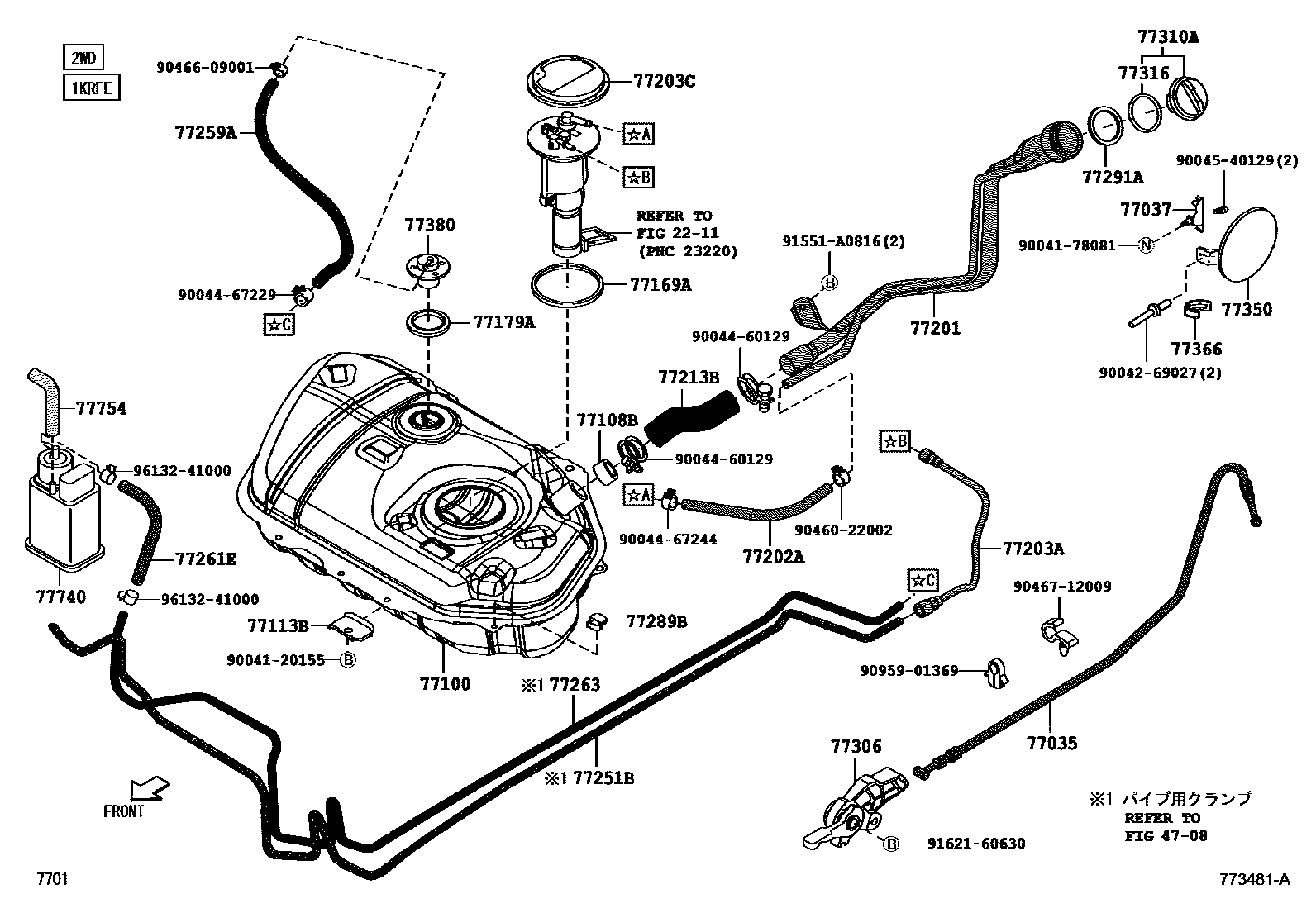

FUEL TANK & TUBE
2211
4708
77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77037LOCK SUB-ASSY, FUEL FILLER OPENING LID
77108BVALVE SUB-ASSY, FUEL TANK FILLER CHECK
77169AGASKET, FUEL SUCTION TUBE SET
77179AGASKET, FUEL TANK BREATHER TUBE
77201PIPE SUB-ASSY, FUEL TANK INLET
77202AHOSE, FUEL, NO.1 (FOR BREATHER TUBE)
77203ATUBE SUB-ASSY, FUEL SUCTION
77203CBRACKET, FUEL PUMP
77213BHOSE, FUEL TANK TO FILLER PIPE
77251BTUBE, FUEL MAIN
77259AHOSE, FUEL(FOR BREATHER TUBE)
77261EHOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE)
77263TUBE, FUEL TANK TO CANISTER, NO.3
77289BCLAMP, FUEL TUBE, NO.3
77291ASHIELD, FUEL TANK FILLER PIPE
77306LEVER SUB-ASSY, FUEL LID LOCK OPEN
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
77350LID ASSY, FUEL FILLER OPENING
77366SPRING, FUEL FILLER OPENING LID HINGE
77380VALVE ASSY, FUEL CUT OFF
77740CANISTER ASSY, CHARCOAL
77754HOSE, CHARCOAL CANISTER OUTLET, NO.1
9004120155
main90041-20155
9004178081
main90041-78081
9004269027
main90042-69027
9004460129
main90044-60129
9004467229
main90044-67229
9004467244
main90044-67244
9004540129
main90045-40129
9046022002
main90460-22002
9046609001
main90466-09001
9046712009
main90467-12009
9095901369
main90959-01369
91551A0816
main91551-A0816
9162160630
main91621-60630
9613241000
main96132-41000
42 parts on this diagram · 3 diagrams in section
