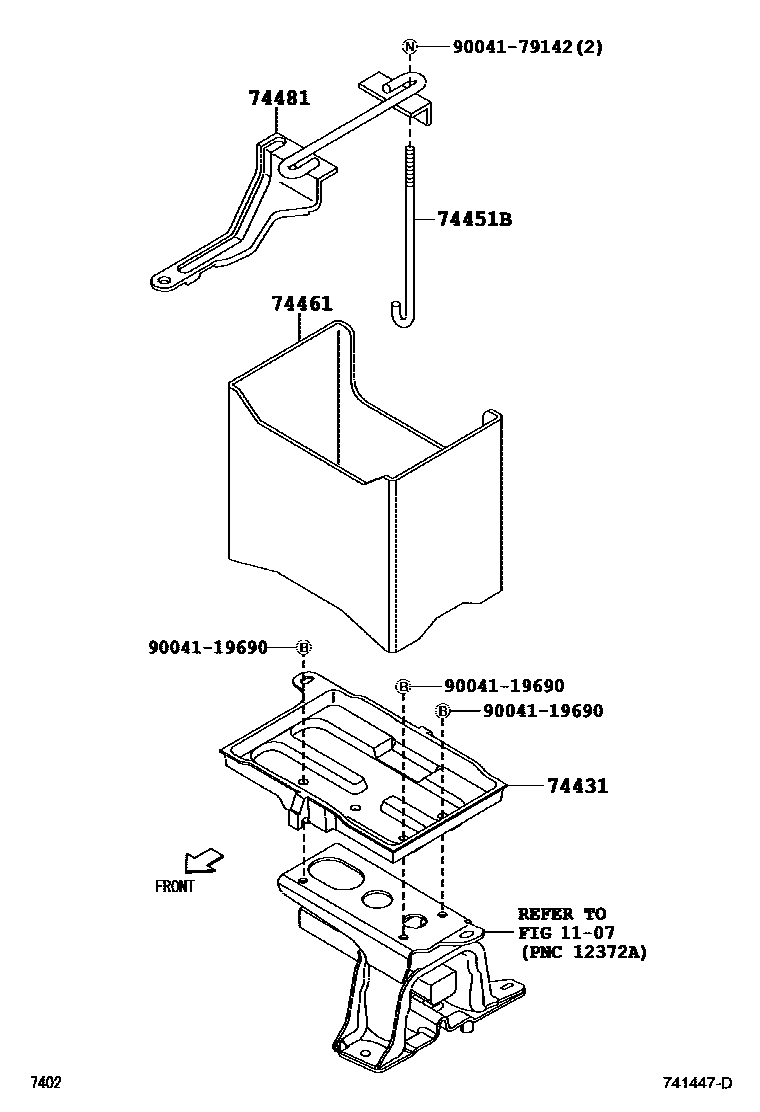

BATTERY CARRIER

1107

74431TRAY, BATTERY

main74411-B1010iKGC1#,QNC10200405-201001

sub74411-B1011

74451BBOLT, BATTERY CLAMP

main74451-B1010iKGC1#,QNC10200405-201002

74461COVER, BATTERY

main74405-97203iKGC1#,QNC10200405-200912

sub74405-B1010

main74405-B1010iKGC1#,QNC10201001-201002

74481CLAMP, BATTERY HOLD DOWN

main74404-B1010iKGC1#,QNC10200405-201002

9004119690

main90041-19690

9004179142

main90041-79142

7 parts on this diagram · 1 diagram in section
