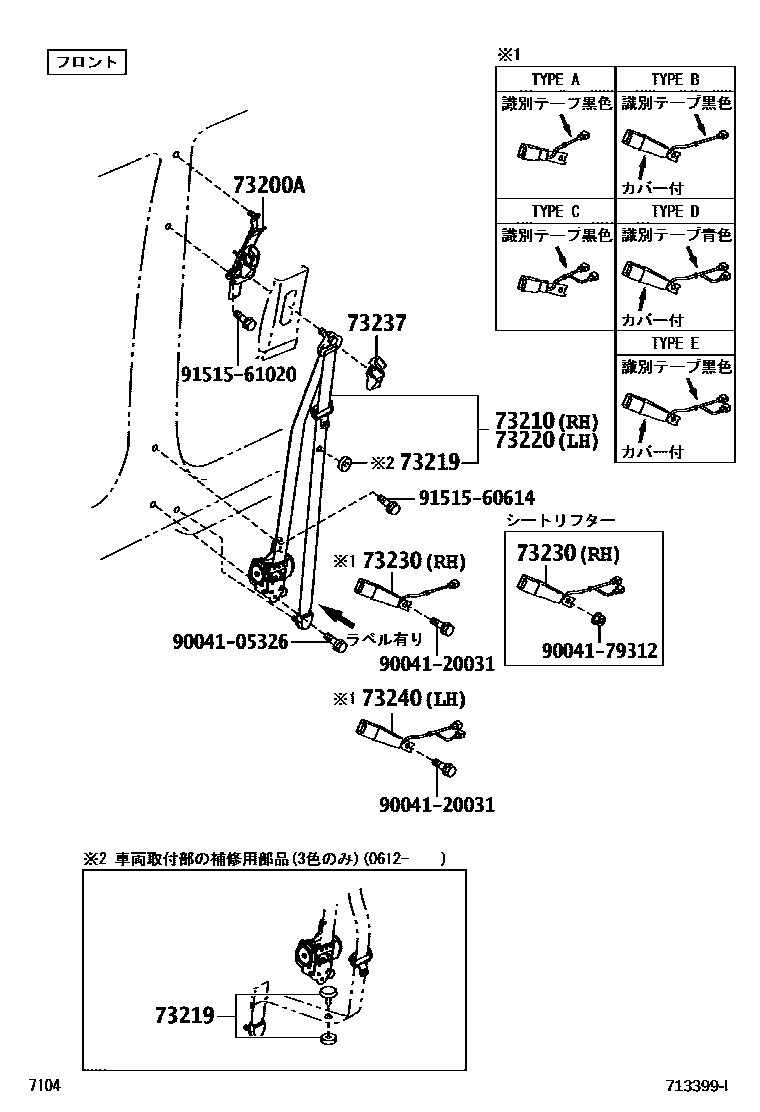

SEAT BELT & CHILD RESTRAINT SEAT

0001 1���� 0002 1��

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-B1010-B0×2iKGC1#,QNC10200405-200612

LT.GRAY,TRIM1#

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-B1060-B0supersedes 73210-B1010-B0iKGC1#,QNC10200612-201002

73219STOPPER, TONGUE PLATE

main73219-33010iKGC1#,QNC10200612-201002

main73219-33020iKGC1#,QNC10200612-201002

main73219-33030iKGC1#,QNC10200612-201002

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-B1070-B0iKGC1#,QNC10200612-201002

main73220-B1060-B0supersedes 73220-B1010-B0iKGC1#,QNC10..G,X200612-201002

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-B1010-B0iKGC1#,QNC10200405-200409

main73230-B2050-S2iKGC1#,QNC10200612-201002

73237COVER, SHOULDER BELT ANCHOR

main73237-B1010-B0×2iKGC1#,QNC10200405-200612

LT.GRAY,TRIM1#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-B1020-B0iKGC1#,QNC10200405-200409

main73230-B1080-B0iKGC1#,QNC10200612-201002

main73230-B1050-B0iKGC15..G;KGC10,QNC10..G,X200405-200612

main73230-B1180-B0iKGC1#..X200904-201002

9004105326

main90041-05326

9004120031

main90041-20031

9004179312

main90041-79312

9151560614

main91515-60614

9151561020

main91515-61020

12 parts on this diagram · 2 diagrams in section
