REAR SEAT & SEAT TRACK

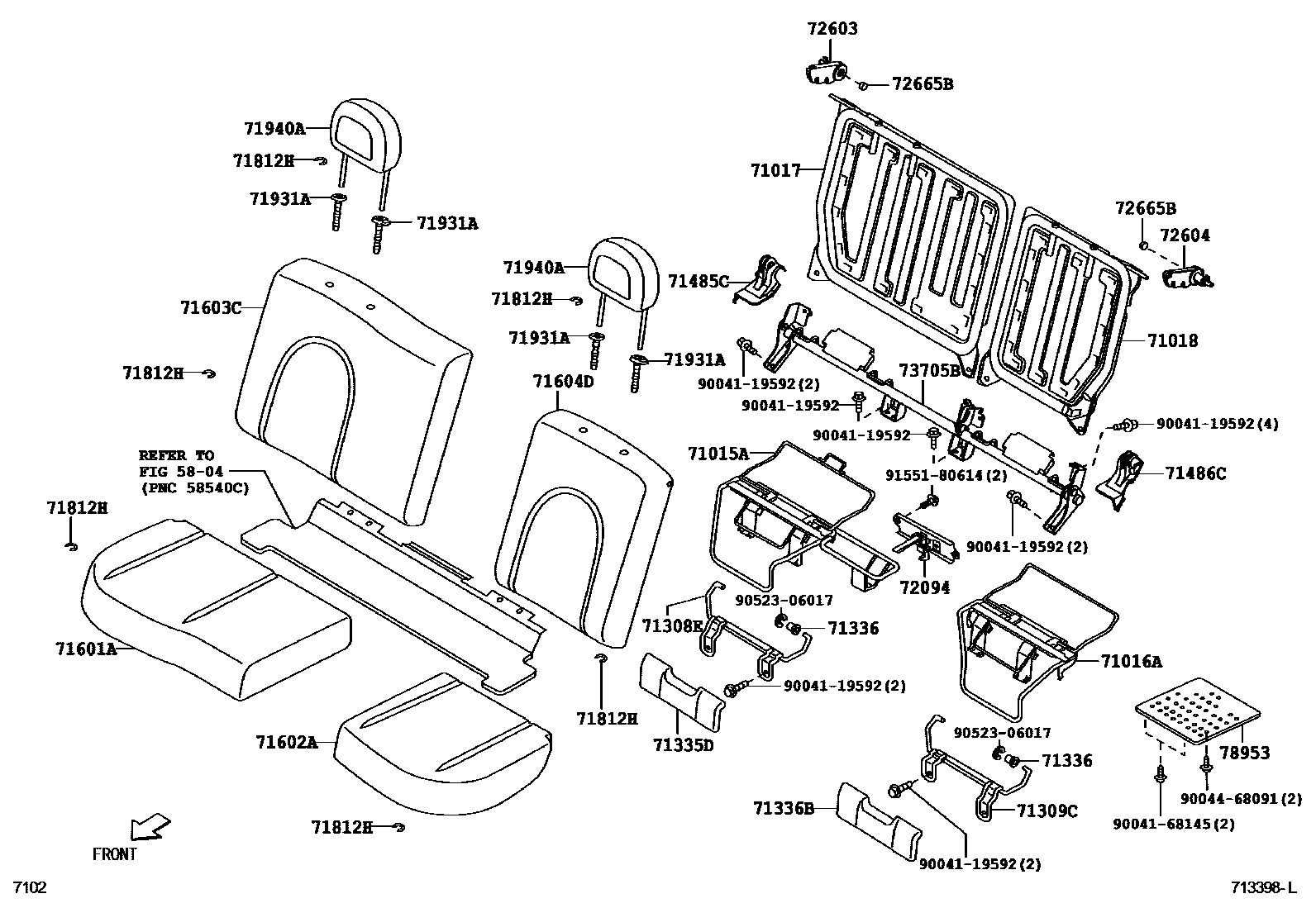

Parts diagram
5804
71015AFRAME SUB-ASSY, REAR SEAT CUSHION, RH
main71015-B1010i200405-201002
71016AFRAME SUB-ASSY, REAR SEAT CUSHION, LH
main71016-B1010i200405-201002
71017FRAME SUB-ASSY, REAR SEATBACK, RH
main71017-B1020i200405-201002
71018FRAME SUB-ASSY, REAR SEATBACK, LH
main71018-B1020i200405-201002
71308ELEG SUB-ASSY, REAR SEAT, RH
main71033-B1010i200405-201002
71309CLEG SUB-ASSY, REAR SEAT, REAR LH
main71033-B1020i200405-201002
71335DPLATE, REAR SEAT LEG COVER, RH
main71335-B1010-B0i200405-201002
DK.GRAY,TRIM1#
sub71335-B1010
71336BUSH OR SPACER, REAR SEATBACK HINGE
main21552-B1010i200808-201002
main90043-86093i200405-200807
71336BPLATE, REAR SEAT LEG COVER, LH
main71336-B1010-B0i200405-201002
DK.GRAY,TRIM1#
sub71336-B1010
71485CCOVER, REAR SEAT HINGE, RH
main71485-B1010-B0i200405-201002
DK.GRAY,TRIM1#
sub71485-B1010
71486CCOVER, REAR SEAT HINGE, LH
main71486-B1010-B0i200405-201002
DK.GRAY,TRIM1#
71601APAD SUB-ASSY, REAR SEAT CUSHION W/COVER
main71601-B1010-B0i200405-200503
BEIGE,TRIM1#
sub71601-B1010
main71601-B1010-B2i200505-200612
GRAY,TRIM10
sub71601-B1010
main71601-B1010-E0i200503-200612
BEIGE,TRIM1#
sub71601-B1010
main71601-B1010-E0i200505-200612
BEIGE,TRIM10
sub71601-B1010
main71601-B1020-B0i200412-200503
BLACK,TRIM1#
sub71601-B1020
main71601-B1020-C0i200503-200612
BLACK,TRIM1#
sub71601-B1020
main71601-B1070-B0i200612-201002
GRAY,TRIM12
main71601-B1070-C0i200612-201002
BLACK,TRIM1#
main71601-B1070-E0i200612-201002
GREGE,TRIM1#
main71601-B1070-E0i200612-201002
GREGE,TRIM11
71602APAD SUB-ASSY, REAR SEAT CUSHION W/COVER, LH
main71602-B1010-B2i200505-200612
GRAY,TRIM10
sub71602-B1010
main71602-B1010-E0i200405-200612
BEIGE,TRIM1#
sub71602-B1010
main71602-B1010-E0i200505-200612
BEIGE,TRIM10
sub71602-B1010
main71602-B1020-B0i200412-200503
BLACK,TRIM1#
sub71602-B1020
main71602-B1020-C0i200503-200612
BLACK,TRIM1#
sub71602-B1020
main71602-B1070-B0i200612-201002
GRAY,TRIM12
main71602-B1070-C0i200612-201002
BLACK,TRIM1#
main71602-B1070-E0i200612-201002
GREGE,TRIM1#
main71602-B1070-E0i200612-201002
GREGE,TRIM11
71603CPAD SUB-ASSY, REAR SEATBACK W/COVER
main71603-B1010-B0i200405-200503
BEIGE,TRIM1#
sub71603-B1010
main71603-B1010-B2i200505-200612
GRAY,TRIM10
sub71603-B1010
main71603-B1010-E1i200503-200612
BEIGE,TRIM1#
sub71603-B1010
main71603-B1010-E1i200505-200612
BEIGE,TRIM10
sub71603-B1010
main71603-B1040-B0i200412-200503
BLACK,TRIM1#
sub71603-B1040
main71603-B1040-C1i200503-200612
BLACK,TRIM1#
sub71603-B1040
main71603-B1120-B0i200612-201002
GRAY,TRIM12
main71603-B1120-C0i200612-201002
BLACK,TRIM1#
main71603-B1120-E0i200612-201002
GREGE,TRIM11
main71603-B1120-E0i200612-201002
main71603-B1120-F0i200612-201002
main71603-B1120-F0i200612-201002
CREAM,TRIM11
71604DPAD SUB-ASSY, REAR SEATBACK W/COVER, LH
main71604-B1010-B0i200405-200503
BEIGE,TRIM1#
sub71604-B1010
main71604-B1010-B2i200505-200612
GRAY,TRIM10
sub71604-B1010
main71604-B1010-E1i200505-200612
BEIGE,TRIM10
sub71604-B1010
main71604-B1010-E1i200503-200612
BEIGE,TRIM1#
sub71604-B1010
main71604-B1040-B0i200412-200503
BLACK,TRIM1#
sub71604-B1040
main71604-B1040-C1i200503-200612
BLACK,TRIM1#
sub71604-B1040
main71604-B1110-B0i200612-201002
GRAY,TRIM12
main71604-B1110-C0i200612-201002
BLACK,TRIM1#
main71604-B1110-E0i200612-201002
GREGE,TRIM11
main71604-B1110-E0i200612-201002
main71604-B1110-F0i200612-201002
main71604-B1110-F0i200612-201002
CREAM,TRIM11
71812HRING, HOG, SMALL (FOR REAR SEAT)
main71812-87201i200412-201002
main71812-87201i200405-200612
71931ASUPPORT, REAR SEAT HEADREST
main71930-97202-C0i200412-201002
sub71930-97202
main71930-97202-C0i200612-201002
sub71930-97202
main71930-97202-C0i200505-200612
sub71930-97202
main71930-97202-E0i200505-200612
sub71930-97202
main71930-97202-E0i200409-200612
sub71930-97202
main71930-97202-E3i200612-201002
sub71930-97202
main71930-97202-E3i200612-201002
sub71930-97202
main71931-97202-C0i200412-201002
sub71931-97202
main71931-97202-C0i200505-200612
sub71931-97202
main71931-97202-C0i200612-201002
sub71931-97202
main71931-97202-E0i200505-200612
sub71931-97202
main71931-97202-E0i200409-200612
sub71931-97202
main71931-97202-E3i200612-201002
sub71931-97202
main71931-97202-E3i200612-201002
sub71931-97202
71940AHEADREST ASSY, REAR SEAT
main71940-B1010-B0i200505-200612
GRAY,TRIM10
sub71940-B1010
main71940-B1010-E0i200505-200612
BEIGE,TRIM10
sub71940-B1010
main71940-B1010-E0i200405-200612
BEIGE,TRIM1#
sub71940-B1010
main71940-B1020-C0i200412-200612
BLACK,TRIM1#
main71940-B1170-B0i200612-201002
GRAY,TRIM12
main71940-B1170-C0i200612-201002
BLACK,TRIM1#
main71940-B1170-E0i200612-201002
GREGE,TRIM11
main71940-B1170-F0i200612-201002
CREAM,TRIM11
main71940-B1210-C0i200612-201002
BLACK,TRIM1#
sub71940-B1210
72094LOCK SUB-ASSY, REAR SEAT TURN
main72094-B1010i200405-201002
main72094-B1020i200405-201002
72603LOCK SUB-ASSY, REAR SEATBACK, RH
main72603-B1010-B0i200405-201001
LT.GRAY,TRIM1#
sub72603-B2010
main72603-B1010-E0i201001-201002
LINEN BEIGE,TRIM1#
sub72603-B2010
72604LOCK SUB-ASSY, REAR SEATBACK, LH
main72604-B1010-B0i200405-201001
LT.GRAY,TRIM1#
sub72604-B2010
main72604-B1010-E0i201001-201002
LINEN BEIGE,TRIM1#
sub72604-B2010
72665BCOVER, REAR SEATBACK LOCK
main72665-B1010-B0i200405-201001
LT.GRAY,TRIM1#
sub72665-B1010
main72665-B1010-E0i201001-201002
LINEN BEIGE,TRIM1#
sub72665-B1010
73705BBRACKET SUB-ASSY, CROSS ANCHOR
main73705-B1010i200405-201002
78953PLATE, REAR SEAT UNDER
main78953-B1010
9004119592
main90041-19592
9004168145
main90041-68145
9004468091
main90044-68091
9052306017
main90523-06017
9155180614
main91551-80614

30 parts on this diagram · 3 diagrams in section
