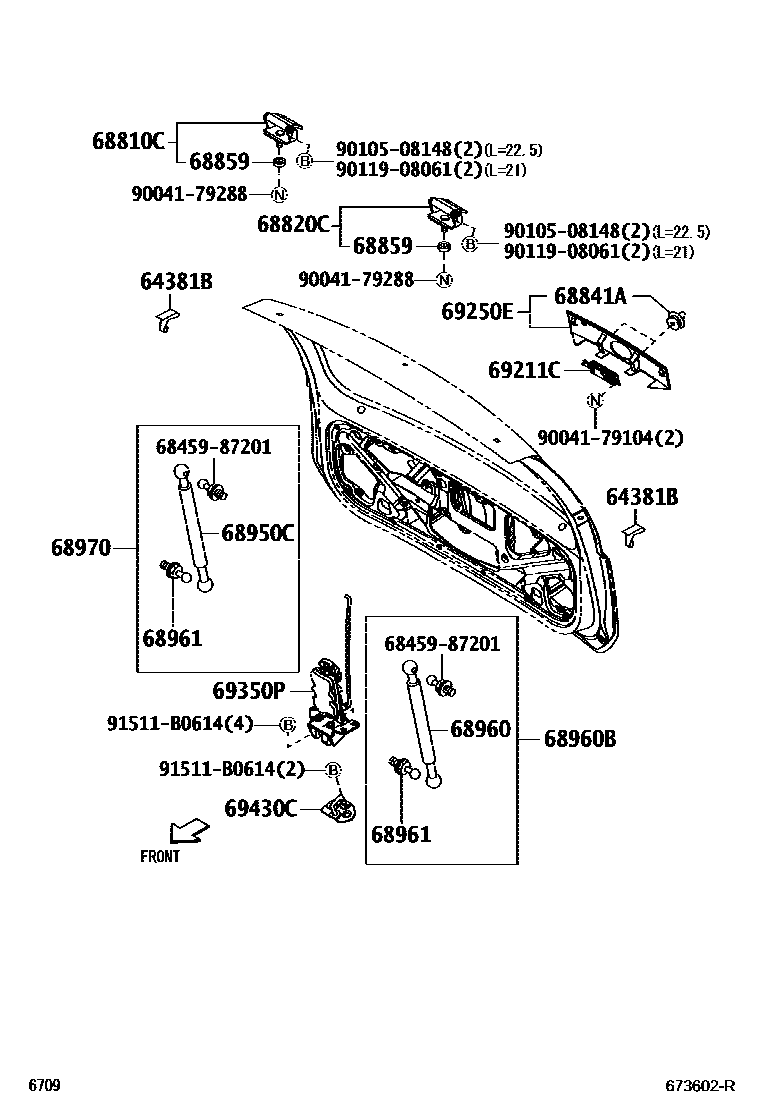

BACK DOOR LOCK & HANDLE

64381BHANGER, PACKAGE TRAY TRIM

68810CHINGE ASSY, BACK DOOR, RH

main68801-B1010iKGC1#,QNC10¥2,170200405-201002

68820CHINGE ASSY, BACK DOOR, LH

main68801-B1010iKGC1#,QNC10¥2,170200405-201002

68841ACLIP(FOR TORSION BAR COVER)

main90044-67474iKGC1#,QNC10¥80200405-201002

68859PACKING, BACK DOOR HINGE

main68859-87201iKGC1#,QNC10¥380200405-201002

68950CSTAY ASSY, BACK DOOR, RH

main68950-B1010iKGC1#,QNC10¥4,330200405-200510

sub68950-B1011¥6,200

main68950-B1011iKGC1#,QNC10¥6,200200511-200612

sub68950-B1012¥7,500

main68950-B1011iKGC1#,QNC10¥6,200200612-201002

�m�n�D�Q�@�X�^�b�h�{���g�@�i�V

sub68950-B1012¥7,500

main68950-B9080iKGC1#,QNC10¥5,900200612-201002

�m�n�D�P�@�X�^�b�h�{���g�@�c�L

sub68950-B9081¥8,600

68960STAY ASSY, BACK DOOR, LH

main68960-B1010iKGC1#,QNC10¥4,330200405-200510

sub68960-B1011¥5,100

main68960-B1011iKGC1#,QNC10¥5,100200511-200612

sub68960-B1012¥7,500

main68960-B1011iKGC1#,QNC10¥5,100200612-201002

�m�n�D�Q�@�X�^�b�h�{���g�@�i�V

sub68960-B1012¥7,500

main68960-B9080iKGC1#,QNC10¥5,900200612-201002

�m�n�D�P�@�X�^�b�h�{���g�@�c�L

sub68960-B9081¥8,600

68960BSTAY ASSY, BACK DOOR, LH

main68960-B9080iKGC1#,QNC10¥5,900200405-201002

sub68960-B9081¥8,600

68961BOLT, BACK DOOR STAY

main68961-B1010iKGC1#,QNC10¥590200405-201002

68970STAY ASSY, BACK DOOR, RH

main68950-B9080iKGC1#,QNC10¥5,900200405-201002

sub68950-B9081¥8,600

69211CHANDLE, BACK DOOR OUTSIDE

main69023-B1010iKGC1#,QNC10¥2,030200405-201002

69250ECOVER ASSY, DOOR OUTSIDE HANDLE

main69250-B1050-B2iKGC1#,QNC10200405-200612

DK.BLUE M.M.,B42

sub69250-B1050¥4,540

main69250-B1050-B7iKGC1#,QNC10..G,X200405-201002

LT.BLUE ME.OP.,B57

sub69250-B1050¥4,540

main69250-B1050-D0iKGC1#,QNC10..G,X200612-201001

MAROON MC.,R56

sub69250-B1050¥4,540

main69250-B1050-E0iKGC1#,QNC10..G,X200809-201002

CHAMPAGNE ME.,T23

sub69250-B1050¥4,540

main69250-B1050-F0iKGC1#,QNC10..G,X200612-201001

YELLOW ME.,Y08

sub69250-B1050¥4,540

main69250-B1050-G0iKGC1#,QNC10..G,X200405-200612

LIME GREEN ME.,G40

sub69250-B1050¥4,540

main69250-B1050-G1iKGC1#,QNC10200612-201001

YELLOW GREEN M.M.,G43

sub69250-B1050¥4,540

main69250-B1050-K0iKGC1#..X200904-201002

GRAYISH PURPLE ME.OP.,P12

sub69250-B1050¥4,540

main69250-B1050-R0iKGC1#,QNC10200405-201002

RED,R40

sub69250-B1050¥4,540

main69250-B1050-R3iKGC1#,QNC10..G,X200405-200612

MD CORAL ME.,R43

sub69250-B1050¥4,540

main69250-B1050-S8iKGC1#,QNC10200405-201002

SILVER ME.,S28

sub69250-B1050¥4,540

main69250-B1050-T7iKGC1#,QNC10..G,X200405-200809

CHAMPAGNE ME.OP.,T17

sub69250-B1050¥4,540

main69250-B1050-W6iKGC1#,QNC10200405-201002

WHITE PEARL.MC.,W16

sub69250-B1050¥4,540

main69250-B1050-W9iKGC1#,QNC10..G,X200405-201002

WHITE,W09

sub69250-B1050¥4,540

main69250-B1050-X7iKGC1#,QNC10200405-201002

BLACK M.M.,X07

sub69250-B1050¥4,540

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-B1010iKGC1#,QNC10¥11,500200405-200606

sub69350-B1011¥11,500

main69350-B1011iKGC1#,QNC10¥11,500200607-201002

sub69350-B1012¥20,300

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-97401iKGC1#,QNC10¥1,500200405-201002

6845987201

main68459-87201¥460

9004179104

main90041-79104¥100

9004179288

main90041-79288¥220

9010508148

main90105-08148¥80

9011908061

main90119-08061¥70

91511B0614

main91511-B0614¥90

20 parts on this diagram · 1 diagram in section
