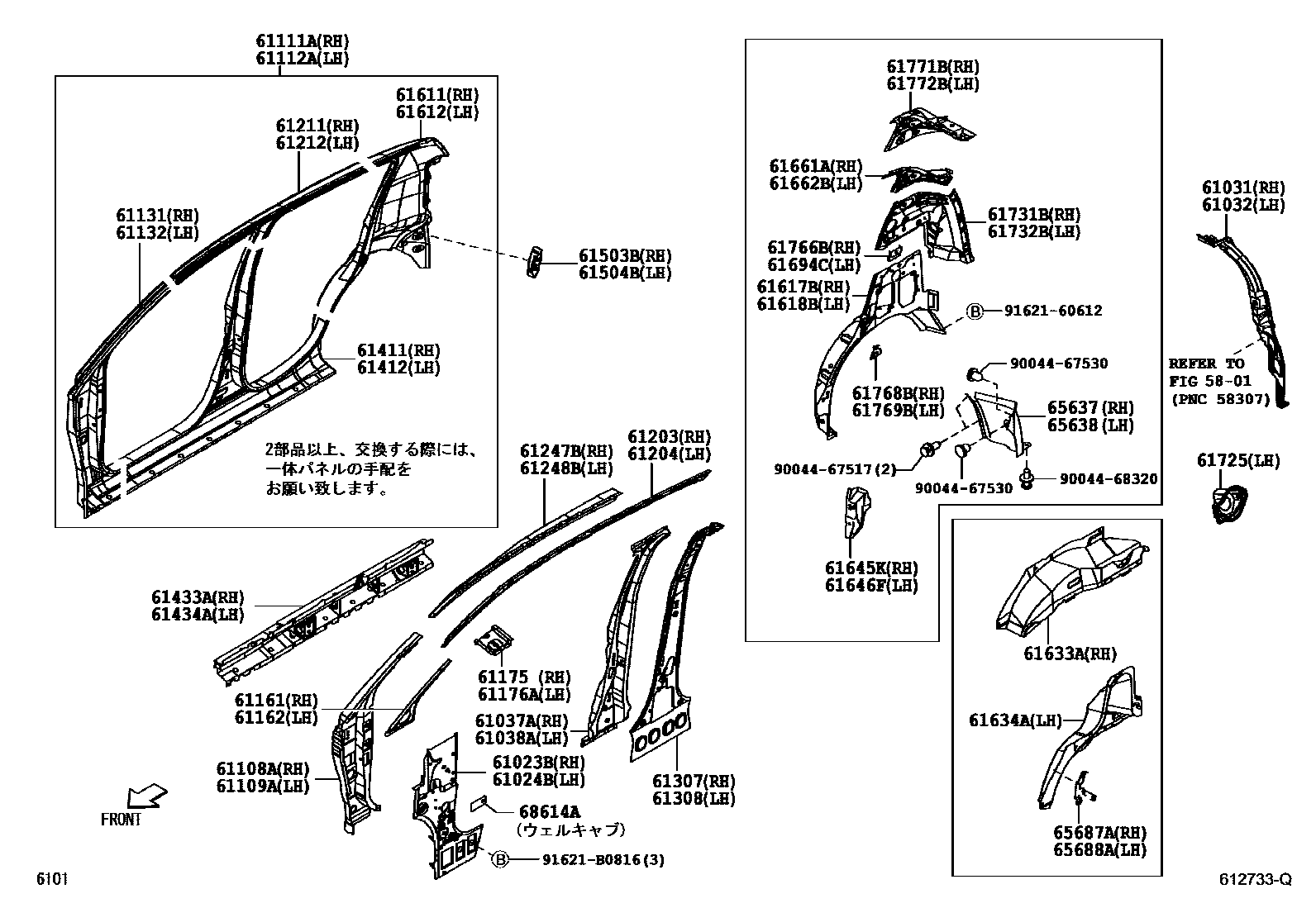

SIDE MEMBER
5801
61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH
61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH
61031EXTENSION SUB-ASSY, QUARTER PANEL, REAR LOWER RH
61032EXTENSION SUB-ASSY, QUARTER PANEL, REAR LOWER LH
61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH
61038AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH
61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH
61111APANEL, FRONT SIDE, OUTER RH
61131PILLAR, FRONT BODY, UPPER OUTER RH
61161PILLAR, FRONT BODY, UPPER INNER RH
61162PILLAR, FRONT BODY, UPPER INNER LH
61175REINFORCEMENT, FRONT BODY PILLAR, INNER NO.2 RH
61176AREINFORCEMENT, FRONT BODY PILLAR, INNER NO.2 LH
61203RAIL SUB-ASSY, ROOF SIDE, INNER RH
61204RAIL SUB-ASSY, ROOF SIDE, INNER LH
61211RAIL, ROOF SIDE, OUTER RH
61212RAIL, ROOF SIDE, OUTER LH
61247BREINFORCEMENT, ROOF SIDE RAIL, INNER RH
61248BREINFORCEMENT, ROOF SIDE RAIL, INNER LH
61307PILLAR SUB-ASSY, CENTER BODY, INNER RH
61308PILLAR SUB-ASSY, CENTER BODY, INNER LH
61433AREINFORCEMENT, ROCKER PANEL, OUTER RH
61434AREINFORCEMENT, ROCKER PANEL, OUTER LH
61503BREINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH
61504BREINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, LH
61611PANEL, QUARTER, RH
61612PANEL, QUARTER, LH
61617BPANEL, QUARTER INNER, LOWER RH
sub61617-B1020
61618BPANEL, QUARTER, INNER LOWER LH
sub61618-B1020
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
61634APANEL, QUARTER WHEEL HOUSE, INNER LH
61645KGUSSET, QUARTER WHEEL HOUSE INNER, RH
61646FGUSSET, QUARTER WHEEL HOUSE INNER, LH
61661AEXTENSION, QUARTER PANEL TO UPPER BACK, RH
61662BEXTENSION, QUARTER PANEL TO UPPER BACK, LH
61694CRETAINER, REAR SEATBACK SET, LH
61725BOX, FUEL INLET
61731BPANEL, ROOF SIDE, INNER RH
61732BPANEL, ROOF SIDE, INNER LH
61766BREINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER RH
61768BREINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR RH
61769BREINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR LH
61771BFRAME, BACK DOOR OPENING UPPER CORNER, RH
61772BFRAME, BACK DOOR OPENING UPPER CORNER, LH
65637LINER, REAR WHEEL HOUSE, RH
65638LINER, REAR WHEEL HOUSE, LH
65687ABRACKET, WHEEL HOUSE BRACE, RH
65688ABRACKET, WHEEL HOUSE BRACE, LH
68614ASPACER, FRONT DOOR CHECK
9004467517
main90044-67517
9004467530
main90044-67530
9004468320
main90044-68320
9162160612
main91621-60612
91621B0816
main91621-B0816
60 parts on this diagram · 4 diagrams in section
