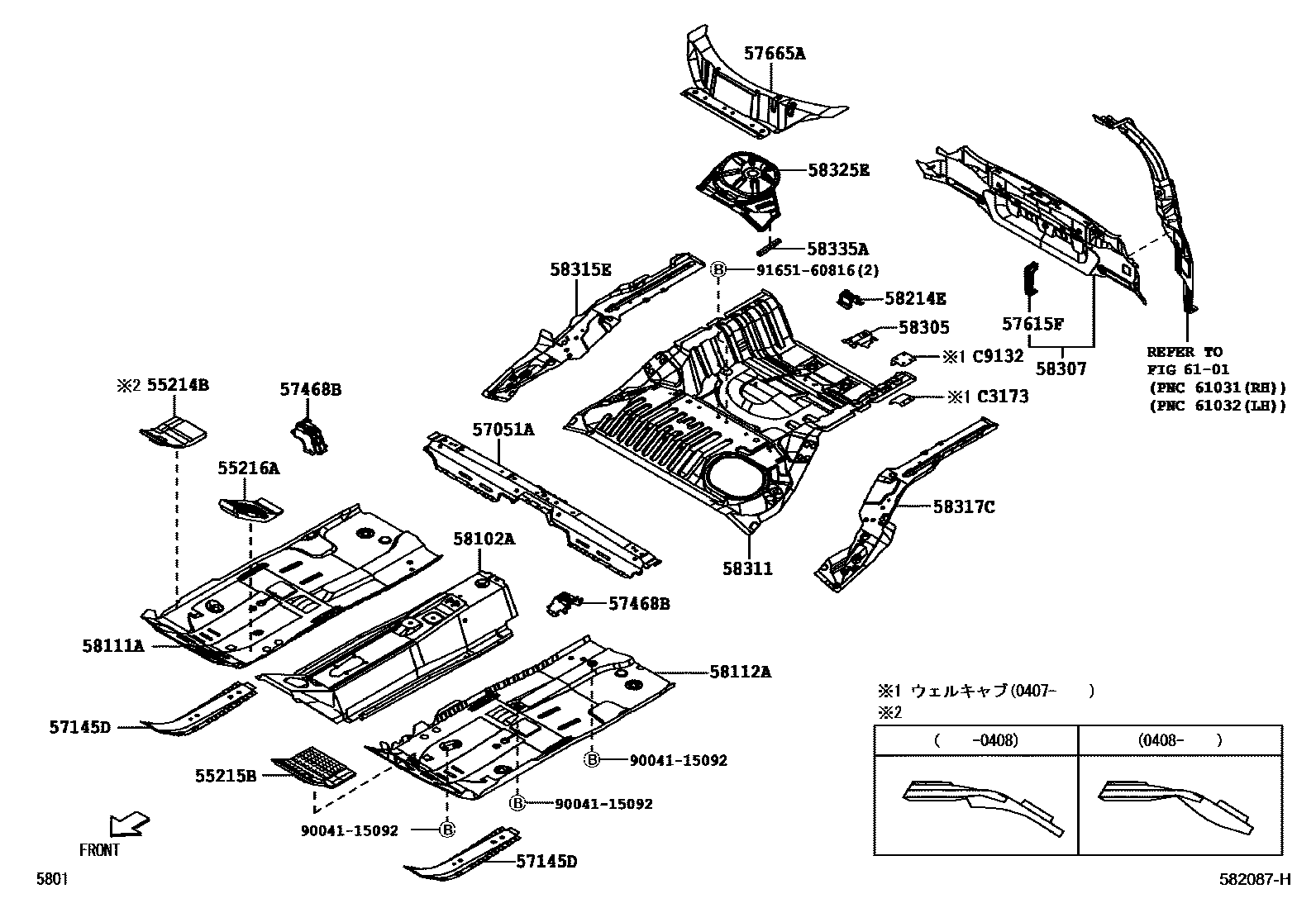

FLOOR PAN & LOWER BACK PANEL
55214BPAD, DASH PANEL INSULATOR, NO.2
55215BPAD, DASH PANEL INSULATOR, NO.3
55216APAD, DASH PANEL INSULATOR, NO.4
57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57145DREINFORCEMENT, FRONT SIDE MEMBER TO FLOOR PAN
57468BBRACKET, FRONT SEAT, REAR
57615FBRACKET, REAR BUMPER MOUNTING
57665AREINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.2
58102AREINFORCEMENT SUB-ASSY, FRONT FLOOR
58111APAN, FRONT FLOOR, RH
58112APANEL, FRONT FLOOR, LH
58214EBRACKET, JACK SUPPORT
58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
58315EEXTENSION REAR FLOOR SIDE PANEL, FRONT RH
58317CEXTENSION, REAR FLOOR SIDE PANEL, REAR LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58335ASEAL, REAR FLOOR SIDE SERVICE HOLE COVER
6101
C3173PLATE, REAR FLOOR SIDE, REAR LH
C9132PLATE, CHAIR LIFT HOLD
9004115092
9165160816
24 parts on this diagram · 2 diagrams in section
