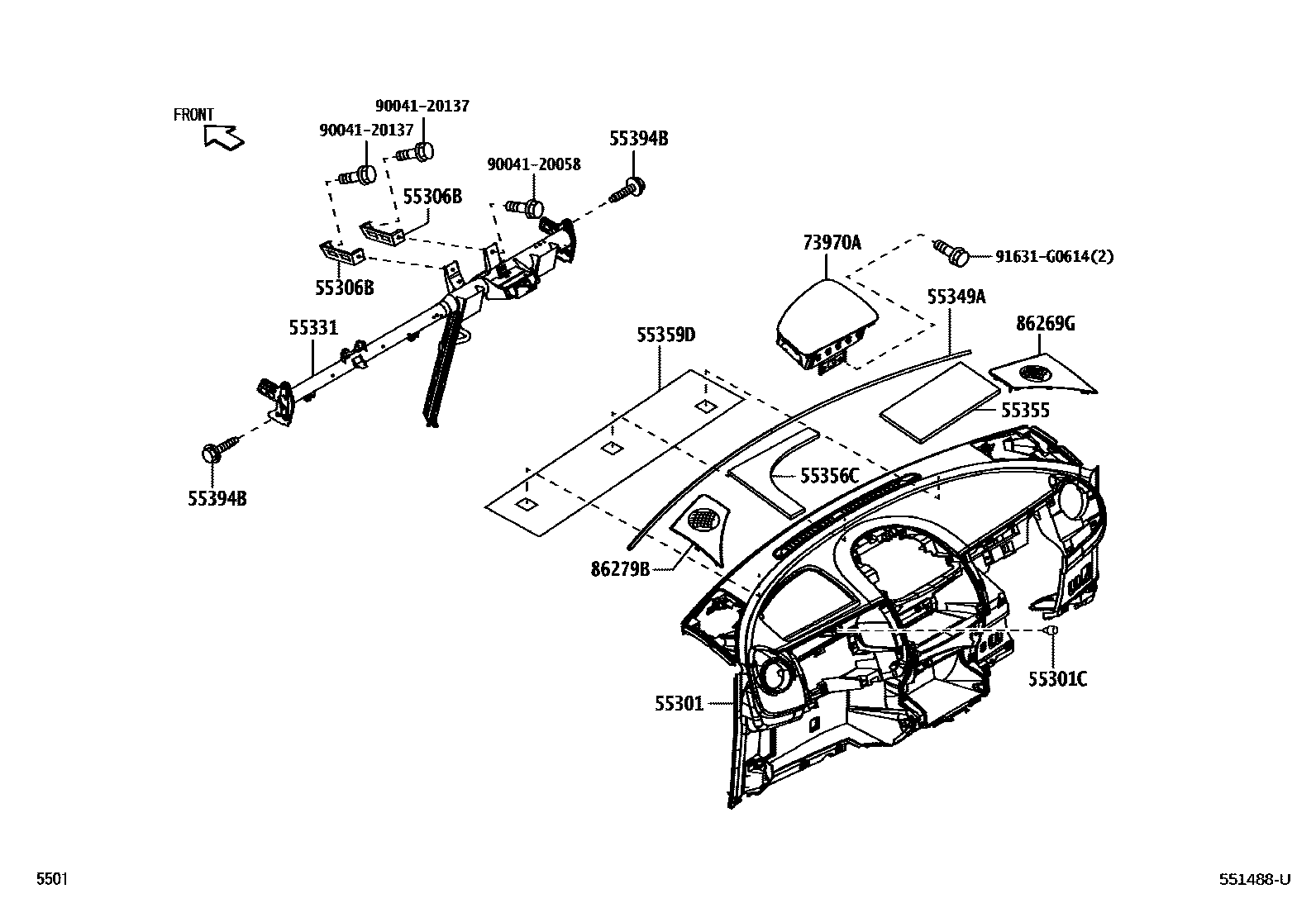

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1������������ & ������ 0002 1���� ���� 0003 1���� ���� 0004 1���� ����

55301PANEL SUB-ASSY, INSTRUMENT

main55311-B1010-B0iKGC1#,QNC10..G,X200405-201002

DK.GRAY,TRIM1#

sub55311-B1010

main55311-B1030-B0iQNC10..RACY200412-200612

DK.GRAY,TRIM1#

main55311-B1030-B0iKGC1#,QNC10..RACY200612-201002

55301CGROMMET(FOR INSTRUMENT PANEL)

main58959-B1010iKGC1#,QNC10200405-201002

55306BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL

main55341-B1010iKGC1#,QNC10200405-201002

55331REINFORCEMENT, INSTRUMENT PANEL

main55305-B1010iKGC1#,QNC10200405-201002

55349ACUSHION, INSTRUMENT PANEL

main55349-B1010iKGC1#,QNC10200405-201002

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-B1010iKGC1#,QNC10200405-201002

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55356-B1010iKGC1#,QNC10200405-201002

55359DCUSHION, INSTRUMENT PANEL, NO.5

main55359-B1060iKGC1#,QNC10200806-201002

55394BBOLT, INSTRUMENT PANEL

main55394-B1010iKGC1#,QNC10200602-200808

main55394-B1020iKGC1#,QNC10200809-201002

main55394-B2010iKGC1#,QNC10200405-200601

73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER

main73970-B1020-B0iKGC1#,QNC10200405-201002

DK.GRAY,TRIM1#

sub73970-B1020

86269GGRILLE, SPEAKER, RH

main86269-B1010-B0iKGC1#,QNC10200405-201002

DK.GRAY,TRIM1#

sub86269-B1010

86279BGRILLE, SPEAKER, LH

main86279-B1010-B0iKGC1#,QNC10200405-201002

DK.GRAY,TRIM1#

sub86279-B1010

9004120058

main90041-20058

9004120137

main90041-20137

91631G0614

main91631-G0614

15 parts on this diagram · 4 diagrams in section
