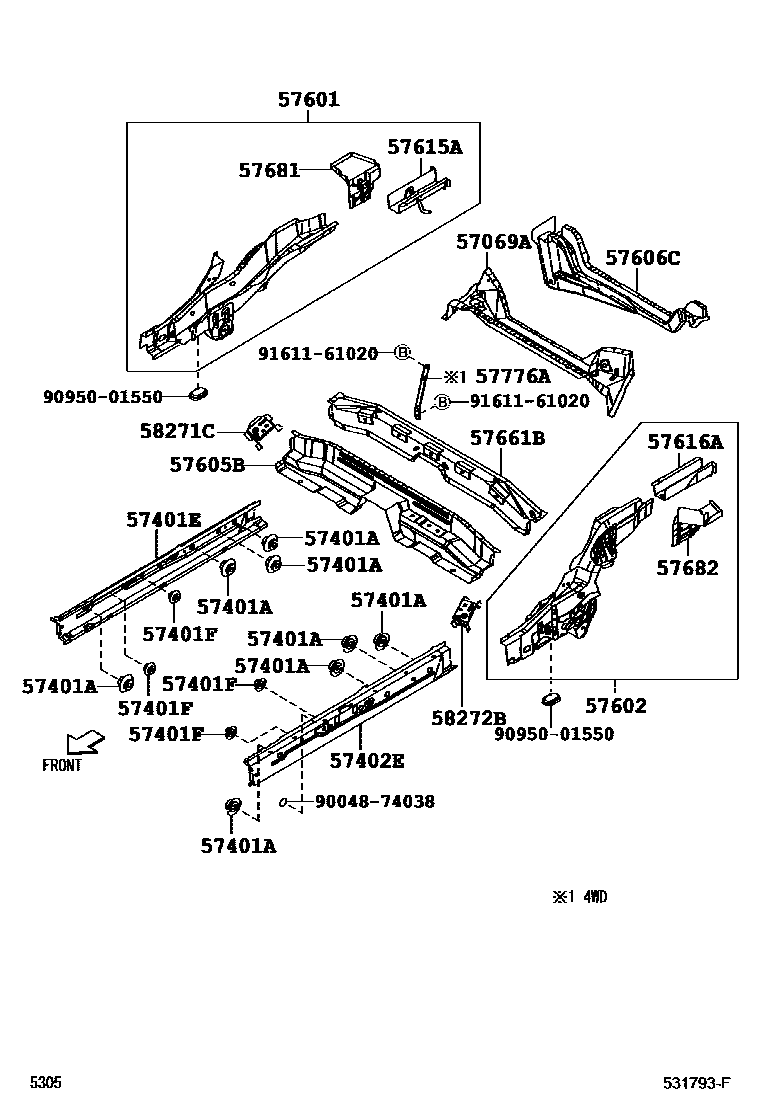

FLOOR SIDE MEMBER

0001 1 0002 1

57069AMEMBER, REAR FLOOR, CENTER

main57069-B1010iKGC10,QNC10200405-201002

main57069-B1020iKGC15200405-201002

57401APLUG, HOLE(FOR MAIN FLOOR SIDE MEMBER)

main90048-71116iKGC1#,QNC10200405-201002

57401EMEMBER ASSY, FLOOR SIDE, RH

main57401-B1010iKGC1#,QNC10200405-201002

57401FPLUG, HOLE

main90048-71292iKGC1#,QNC10200405-201002

57402EMEMBER ASSY, FLOOR SIDE, LH

main57402-B1010iKGC1#,QNC10200405-201002

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-B1010iKGC10,QNC10200405-200511

main57601-B1011iKGC10,QNC10200511-201002

main57601-B1020iKGC15200405-201002

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-B1010iKGC10,QNC10200405-200511

main57602-B1011iKGC10,QNC10200511-201002

main57602-B1020iKGC15200405-201002

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-B1010iKGC10,QNC10200405-201002

sub57605-B1011

main57605-B1020iKGC15200405-201002

sub57605-B1021

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-B1010iKGC15200405-200511

main57606-B1011iKGC15200511-201002

main57606-B1020iKGC10,QNC10200405-200511

main57606-B1021iKGC10,QNC10200511-201002

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57033-B1010iKGC10,QNC10200405-201002

main57033-B1020iKGC15200405-200512

main57033-B1030iKGC15200512-201002

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57034-B1010iKGC15200405-201002

main57034-B1040iKGC15200512-201002

57661BMEMBER, REAR FLOOR CROSS, FRONT

main57068-B1010iKGC1#,QNC10200405-201002

57681BRACKET, REAR SHOCK ABSORBER, RH

main61063-B1010iKGC1#,QNC10200405-201002

57682BRACKET, REAR SHOCK ABSORBER, LH

main61064-B1010iKGC1#,QNC10200405-201002

57776ABRACE, REAR LOWER ARM BRACKET

main57776-B2010iKGC15200405-201002

58271CREINFORCEMENT, BELT ANCHOR TO FROOR PAN, NO.3

main58298-B1010iKGC1#,QNC10200405-201002

58272BREINFORCEMENT, BELT ANCHOR TO FLOOR PAN, NO.4

main58299-B1010iKGC1#,QNC10200405-201002

9004874038

main90048-74038

9095001550

main90950-01550

9161161020

main91611-61020

20 parts on this diagram · 2 diagrams in section
