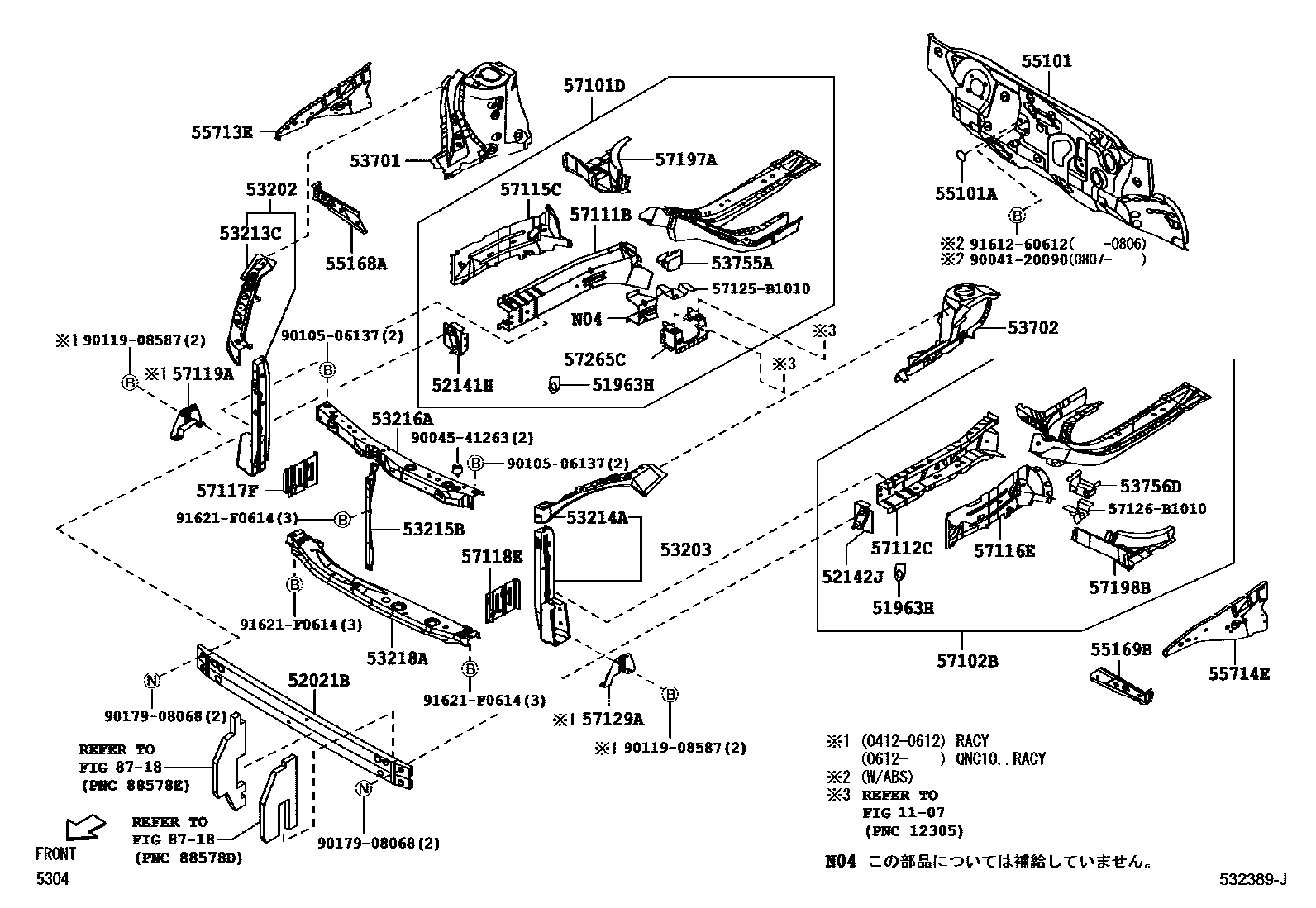

FRONT FENDER APRON & DASH PANEL
1107
51963HHOOK, TRANSPORT W/REINFORCEMENT
52021BREINFORCEMENT SUB-ASSY, FRONT BUMPER
52141HARM, FRONT BUMPER, UPPER RH
52142JARM, FRONT BUMPER, UPPER LH
53203SUPPORT SUB-ASSY, RADIATOR, LH
53213CSUPPORT, RADIATOR, UPPER FRONT
53214ASUPPORT, RADIATOR, UPPER LH
53215BSUPPORT, HOOD LOCK
53216ASUPPORT, RADIATOR, UPPER
53218ASUPPORT, RADIATOR, LOWER
53701APRON SUB-ASSY, FRONT FENDER, RH
53702APRON SUB-ASSY, FRONT FENDER, LH
53755AREINFORCEMENT, BRAKE ACTUATOR MOUNTING, NO.1
53756DBRACKET, BRAKE ACTUATOR MOUNTING
55101PANEL SUB-ASSY, DASH
55101APLUG, HOLE, NO.1(FOR DASH PANEL)
55168ABRACKET, FRONT FENDER MOUNTING, RH
55169BBRACKET, FRONT FENDER MOUNTING, LH
55713EPANEL, COWL TOP SIDE, RH
55714EPANEL, COWL TOP SIDE, LH
57101DMEMBER SUB-ASSY, FRONT SIDE, RH
57102BMEMBER SUB-ASSY, FRONT SIDE, LH
57111BMEMBER, FRONT SIDE, RH
57112CMEMBER, FRONT SIDE, LH
57115CPLATE, FRONT SIDE MEMBER, OUTER, RH
57116EPLATE, FRONT SIDE MEMBER, OUTER, LH
57117FPLATE, FRONT SIDE MEMBER, NO.2 RH
57118EPLATE, FRONT SIDE MEMBER, NO.2, LH
sub57118-B1050
57119APLATE, FRONT SIDE MEMBER, FRONT RH
57129APLATE, FRONT SIDE MEMBER, FRONT LH
57197ABOX, TORQUE, FRONT RH
57198BBOX, TORQUE, FRONT, LH
57265CBRACKET, ENGINE MOUNTING, RH
8718
57125B1010BRACKET, FRONT SIDE MEMBER, RH
main57125-B1010
57126B1010BRACKET, FRONT SIDE MEMBER, LH
main57126-B1010
9004120090
main90041-20090
9004541263
main90045-41263
9010506137
main90105-06137
9011908587
main90119-08587
9017908068
main90179-08068
9161260612
main91612-60612
91621F0614
main91621-F0614
45 parts on this diagram · 1 diagram in section
