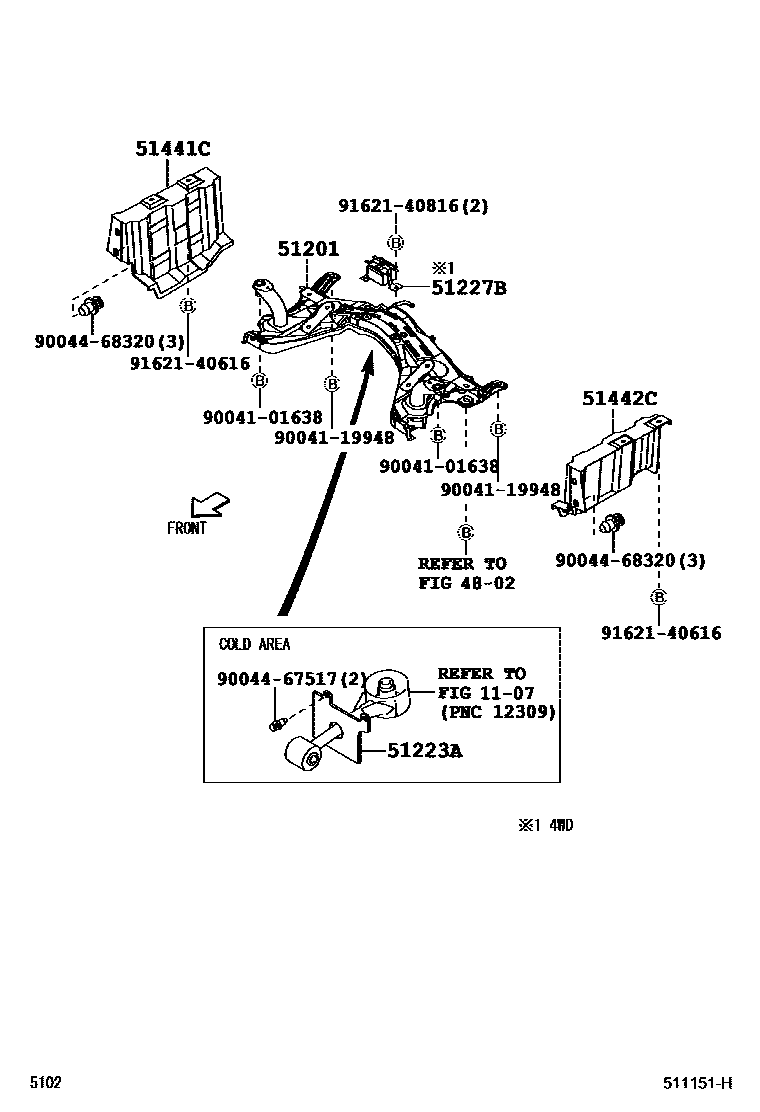

SUSPENSION CROSSMEMBER & UNDER COVER

1107

4802

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-B1010iKGC10,QNC10200405-200901

sub51201-B1011

main51201-B1011iKGC10,QNC10200902-200910

sub51201-B1032

main51201-B1020iKGC15200405-200901

sub51201-B1021

main51201-B1021iKGC15200902-200909

sub51201-B1022

main51201-B1022iKGC15200910-201002

sub51201-B1023

main51201-B1032iKGC10,QNC10200910-201001

sub51201-B1033

51223ACOVER, ENGINE MOUNTING HOLE

main51223-B1010iKGC10,QNC10200405-200612

51227BDAMPER, FRONT SUSPENSION MEMBER DYNAMIC

main51204-B1010iKGC15200405-201002

51441CCOVER, ENGINE UNDER, RH

main51441-B1010iKGC1#,QNC10200405-201002

51442CCOVER, ENGINE UNDER, LH

main51442-B1010iKGC1#,QNC10200405-201002

9004101638

main90041-01638

9004119948

main90041-19948

9004467517

main90044-67517

9004468320

main90044-68320

9162140616

main91621-40616

9162140816

main91621-40816

13 parts on this diagram · 1 diagram in section
