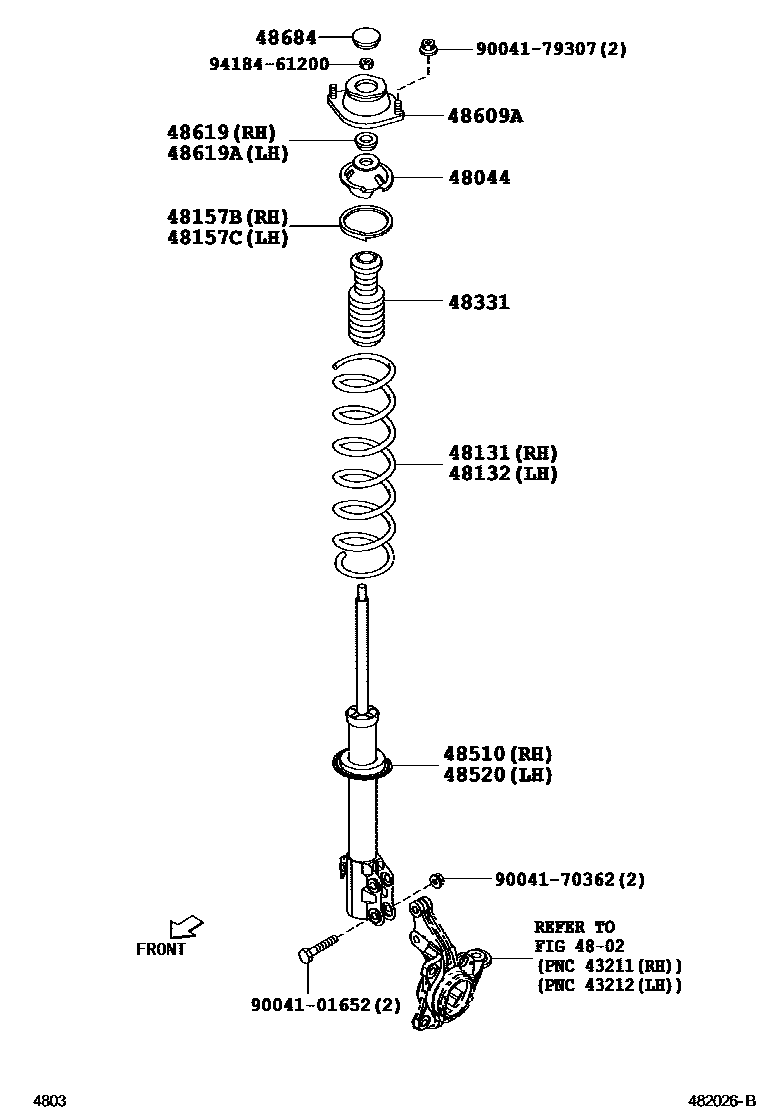

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1

48044SEAT SUB-ASSY, FRONT SPRING, NO.1

main48470-97403iKGC1#,QNC10200405-201002

48131SPRING, FRONT COIL, RH

main48131-B1010iKGC1#200405-201002

sub48131-B1011

main48131-B1020iQNC10..G200405-201002

sub48131-B1021

main48131-B1070iQNC10..RACY200412-201002

sub48131-B1071

main48131-B1070iQNC10..RACY200412-200612

sub48131-B1071

main48131-B1070iQNC10..RACY200412-200612

sub48131-B1071

48132SPRING, FRONT COIL, LH

main48131-B1010iKGC1#200405-201002

sub48131-B1011

main48131-B1020iQNC10..G200405-201002

sub48131-B1021

main48131-B1070iQNC10..RACY200412-201002

sub48131-B1071

main48131-B1070iQNC10..RACY200412-200612

sub48131-B1071

main48131-B1070iQNC10..RACY200412-200612

sub48131-B1071

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-B1010iKGC1#,QNC10200405-201002

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-B1010iKGC1#,QNC10200405-201002

48331BUMPER, FRONT SPRING, NO.1

main48331-B1010iKGC1#,QNC10200405-201002

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-B1010iKGC10;QNC10..G200405-201002

main48510-B1030iKGC15200405-201002

sub48510-B1010

main48510-B1040iQNC10..RACY200412-201002

48520ABSORBER ASSY, SHOCK, FRONT LH

main48510-B1010iKGC10,QNC10..G,X200405-201002

main48510-B1030iKGC15200405-201002

sub48510-B1010

main48510-B1040iQNC10..RACY200412-201002

48609ASUPPORT SUB-ASSY, FRONT SUSPENSION

main48609-97402iKGC1#,QNC10200405-200612

sub48609-B2030

main48609-B1050iKGC1#,QNC10200612-201002

sub48609-B1051

48619BEARING, STRUT MOUNTING, RH

main48619-B2010iKGC1#,QNC10200405-201002

48619ABEARING, STRUT MOUNTING, LH

main48619-B2010iKGC1#,QNC10200405-201002

48684COVER, BEARING DUST

main48684-87202iKGC1#,QNC10200405-201002

9004101652

main90041-01652

9004170362

main90041-70362

9004179307

main90041-79307

9418461200

main94184-61200

16 parts on this diagram · 2 diagrams in section
