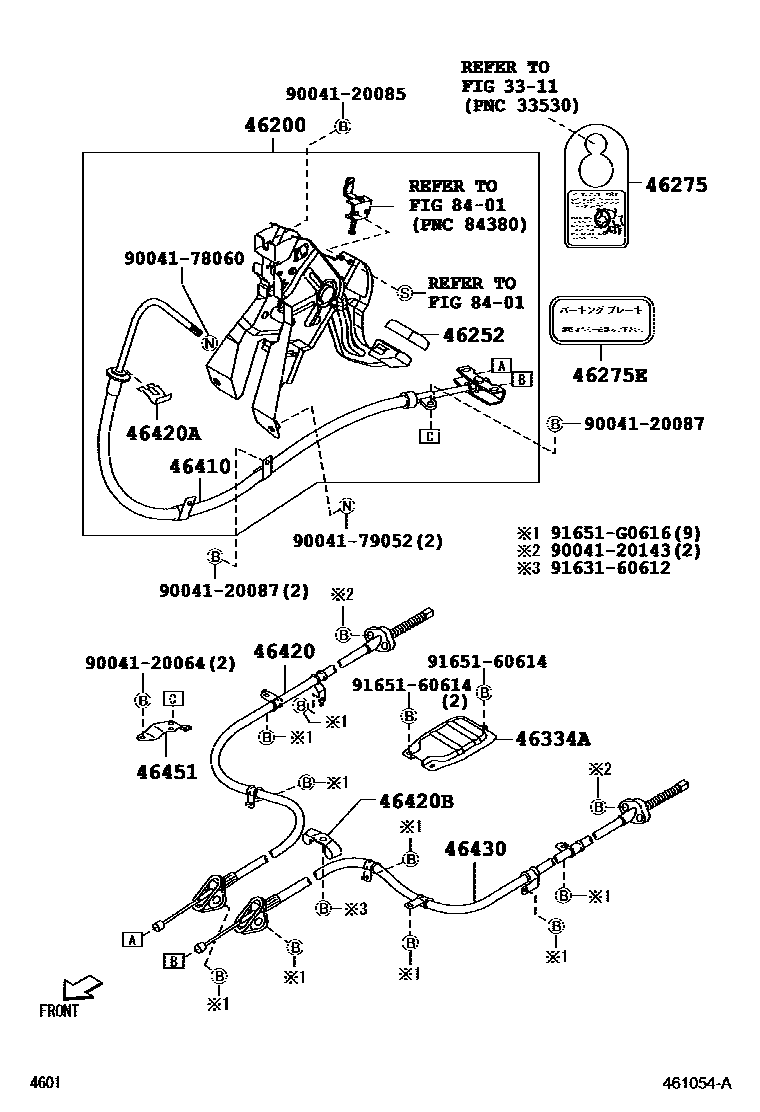

PARKING BRAKE & CABLE

0001 1 0002 1

3311

46200PEDAL ASSY, PARKING BRAKE CONTROL

main46200-B1010iKGC1#,QNC10200405-201002

sub46200-B1040

46252PAD, PARKING PEDAL

main46252-B2010iKGC1#,QNC10200405-200703

sub46252-B2020

main46252-B2020iKGC1#,QNC10200704-201002

46275PLATE, PARKING BRAKE RELEASE CAUTION

main46275-97204iKGC1#,QNC10200405-201002

46275ELABEL, PARKING BRAKE RELEASE INFORMATION

main46275-97201iKGC1#,QNC10200405-200408

sub46275-B1010

main46275-B1010iKGC1#,QNC10200409-201002

46334APROTECTOR, PARKING BRAKE CABLE JOINT

main57889-B1010iKGC15..G;KGC10,QNC10..G,X200612-201002

main57889-B1010iKGC10..X;KGC15..G200802-201002

main57889-B1010iKGC1#..X200904-201002

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-B1010iKGC1#,QNC10200405-201002

sub46410-B1011

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-B1010iKGC10,QNC10200405-200705

sub46420-B1011

main46420-B1011iKGC10,QNC10200706-201002

main46420-B1020iKGC15200405-201002

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main90044-65529iKGC1#,QNC10200405-200501

main90044-65531iKGC1#,QNC10200502-201002

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main90044-61832iKGC1#,QNC10200405-201002

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-B1010iKGC10,QNC10200405-200705

sub46430-B1011

main46430-B1011iKGC10,QNC10200706-201002

main46430-B1020iKGC15200405-201002

46451BRACKET, CABLE SUPPORT

main58253-B1010iKGC1#,QNC10200405-201002

main58253-B1020iKGC15..G;KGC10,QNC10..G,X200612-201002

main58253-B1020iKGC10..X;KGC15..G200802-201002

main58253-B1020iKGC1#..X200904-201002

8401

9004120064

main90041-20064

9004120085

main90041-20085

9004120087

main90041-20087

9004120143

main90041-20143

9004178060

main90041-78060

9004179052

main90041-79052

9163160612

main91631-60612

9165160614

main91651-60614

91651G0616

main91651-G0616

22 parts on this diagram · 2 diagrams in section
