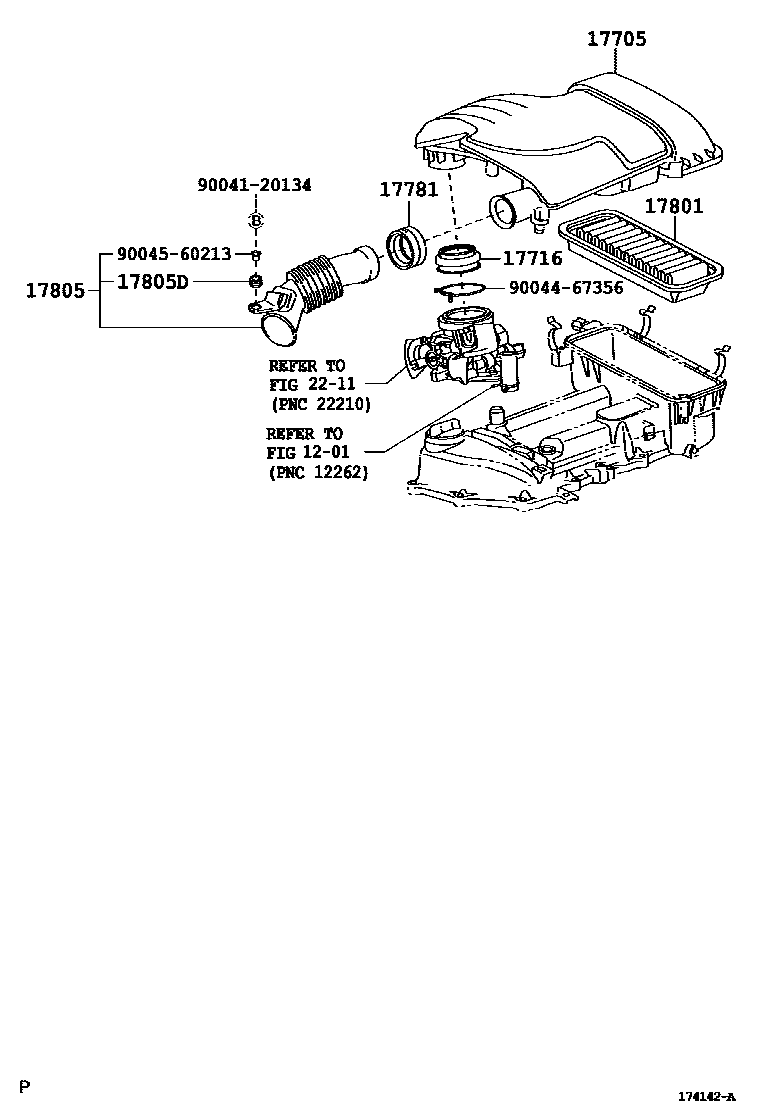

AIR CLEANER

0001 1 0002 1 0003 1

1201

17705CAP SUB-ASSY, AIR CLEANER

main17705-40100i1KRFE..KGC1#200612-201002

main17705-B1010iK3VE..QNC10200405-200508

main17705-B1030iK3VE..QNC10200508-200612

main17705-B1050iK3VE..QNC10200612-201002

17716SUPPORT,AIR CLEANER CAP

main17716-40020i1KRFE..KGC1#200405-200612

17781SEAL, AIR CLEANER INLET

main17781-B1010i1KRFE..KGC1#200405-200612

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-23030i1KRFE..KGC1#200405-200612

main17801-97402iK3VE..QNC10200405-200612

17805CONNECTOR SUB-ASSY, INTAKE AIR

main17881-B1010iK3VE..QNC10200405-200508

main17881-B1020i1KRFE..KGC1#200612-201002

main17881-B1050iK3VE..QNC10200508-200610

main17881-B1051iK3VE..QNC10200611-200612

17805DGROMMET(FOR INTAKE AIR CONNECTOR)

main90044-80625iK3VE..QNC10200508-200612

main90480-11016i1KRFE..KGC1#200405-200612

2211

9004120134

main90041-20134

9004467356

main90044-67356

9004560213

main90045-60213

11 parts on this diagram · 3 diagrams in section
