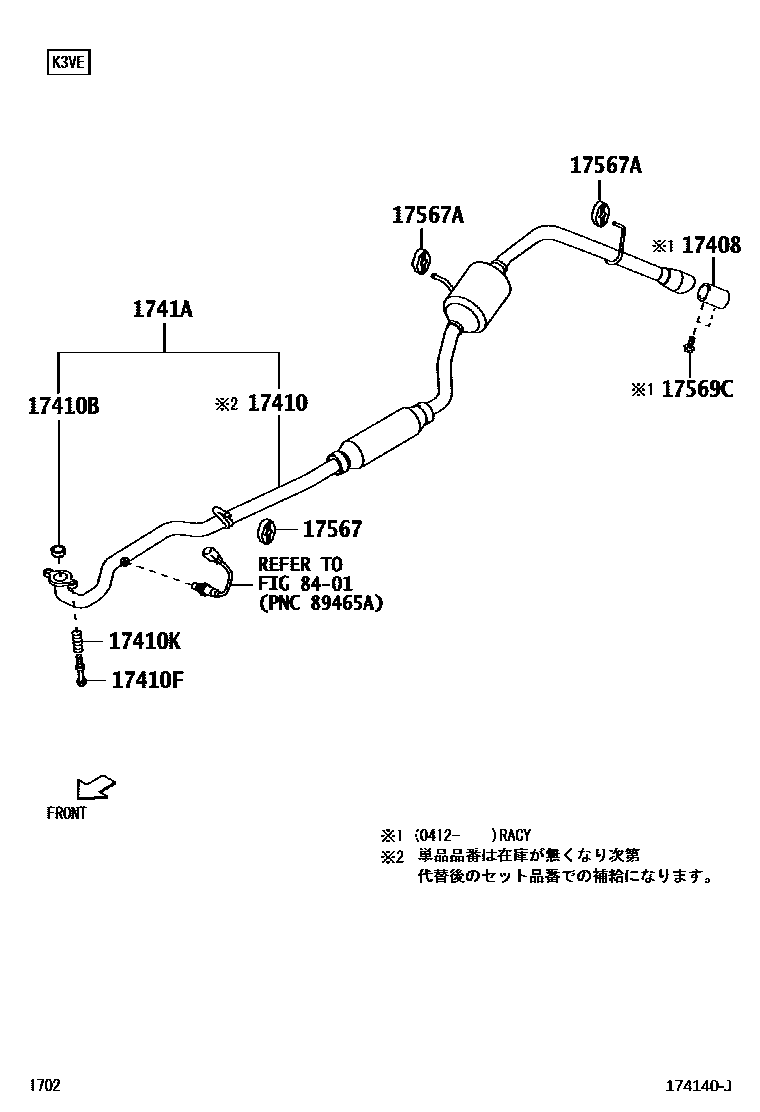

EXHAUST PIPE

0001 1 0002 1

17408BAFFLE SUB ASSY, EXHAUST TAILPIPE

main17408-B1010iK3VE..QNC10..RACY200412-201002

main17408-B1010iK3VE..QNC10..RACY200412-201002

17410PIPE ASSY, EXHAUST, FRONT

main17410-B1010i1KRFE..KGC1#200405-201002

sub17410-B9600

main17410-B1030iK3VE..QNC10..G200405-201002

sub17410-B1031

main17410-B1090iK3VE..QNC10..RACY200412-201002

sub17410-B1091

main17410-B1200i1KRFE..KGC1#..RACY200612-201002

sub17410-B9640

17410BGASKET, EXHAUST PIPE

main17451-97204i1KRFE..KGC1#200405-200612

sub17451-B1020

main17451-97503iK3VE..QNC10200405-200612

sub17451-B1031

main17451-B1020i1KRFE..KGC1#200612-201002

main17451-B1030iK3VE..QNC10200612-200904

sub17451-B1031

main17451-B1031iK3VE..QNC10200905-201002

17410FBOLT OR RING, EXHAUST PIPE FRONT (FOR FRONT)

main17569-97201iK3VE,1KRFE..KGC1#,QNC10200405-201002

17410KSPRING, EXHAUST PIPE

main17152-97201iK3VE,1KRFE..KGC1#,QNC10200609-201002

main17152-B1010iK3VE,1KRFE..KGC1#,QNC10200405-200608

1741APIPE SET, EXHAUST

main17410-B9600i1KRFE..KGC1#..G,X200405-201002

main17410-B9610iK3VE..QNC10..G200405-201002

main17410-B9620iK3VE..QNC10..RACY200412-201002

main17410-B9640i1KRFE..KGC1#..RACY200612-201002

17567CUSHION, EXHAUST PIPE SUPPORT

main17567-87210i1KRFE..KGC1#200405-201002

sub17567-B1010

17567ACUSHION, EXHAUST PIPE SUPPORT, NO.2

main17567-B2010i1KRFE..KGC1#200405-201002

17569CBOLT, EXHAUST PIPE SUPPORT

main17569-B1010iK3VE..QNC10..RACY200412-201002

main17569-B1010iK3VE..QNC10..RACY200412-201002

8401

10 parts on this diagram · 2 diagrams in section
