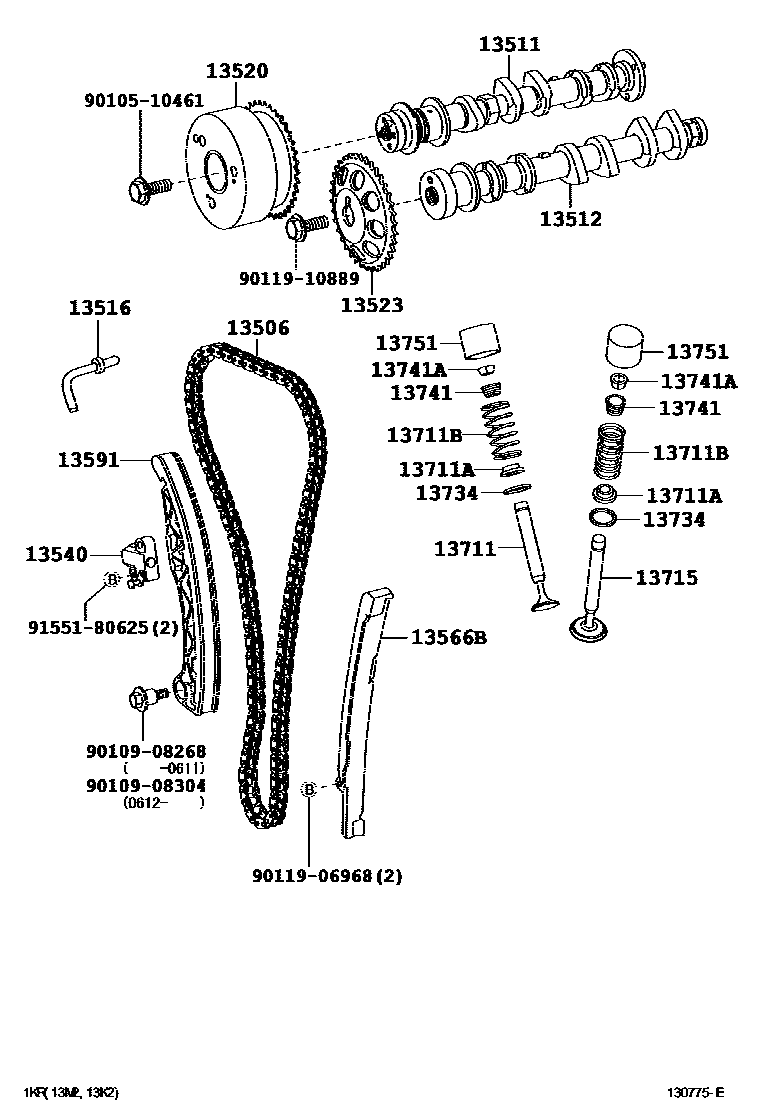

CAMSHAFT & VALVE
13506CHAIN SUB-ASSY
13511CAMSHAFT
13512CAMSHAFT, NO.2
13516JET, OIL
13520SPROCKET ASSY, CAMSHAFT TIMING
13523GEAR OR SPROCKET, CAMSHAFT TIMING
13540TENSIONER ASSY, CHAIN, NO.1
13566BGUIDE, TIMING CHAIN
13591ARM, TIMING CHAIN TENSION
13711VALVE, INTAKE
13711ASEAL OR RING, O(FOR VALVE STEM OIL)
13711BSPRING, COMPRESSION(FOR INNER)
13715VALVE, EXHAUST
13734SEAT, VALVE SPRING
13741RETAINER, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
13751LIFTER, VALVE
MARK12
MARK14
MARK16
MARK18
MARK20
MARK22
MARK24
MARK26
MARK28
MARK30
MARK32
MARK34
MARK36
MARK38
MARK40
MARK42
MARK44
MARK46
MARK48
MARK50
MARK52
MARK54
MARK56
MARK58
MARK60
MARK62
MARK64
MARK66
MARK68
9010510461
9010908268
9010908304
9011906968
9011910889
9155180625
23 parts on this diagram · 2 diagrams in section
