CRANKSHAFT & PISTON

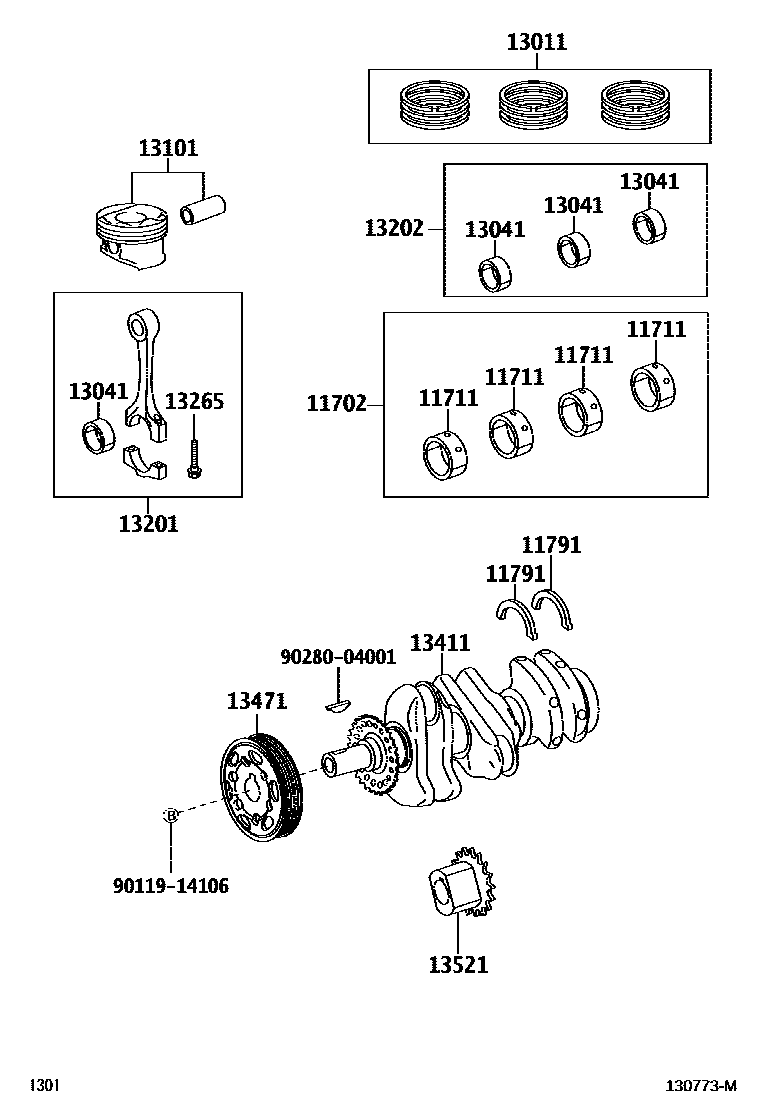

Parts diagram
11702BEARING SET, CRANKSHAFT
main11704-40040i200405-201002
main11704-97401i200405-200512
sub11704-B1021
main11704-B1021i200512-201002
11711BEARING, CRANKSHAFT
main11701-40040-02i200405-201002
main11701-40040-03i200405-201002
main11701-40040-04i200405-201002
main11701-40040-05i200405-201002
main11701-97401-02i200405-200512
main11701-97401-03i200405-200512
main11701-97401-04i200405-200512
main11701-97401-05i200405-200512
main11701-B1020-02i200512-200605
sub11701-B1021
main11701-B1020-03i200512-200605
sub11701-B1021
main11701-B1020-04i200512-200605
sub11701-B1021
main11701-B1020-05i200512-200605
sub11701-B1021
main11701-B1021-02i200605-201002
main11701-B1021-03i200605-201002
main11701-B1021-04i200605-201002
main11701-B1021-05i200605-201002
11791WASHER, CRANKSHAFT THRUST, UPPER
main11791-40020i200405-201002
main11791-97401i200405-200512
sub11791-B1020
main11791-B1020i200512-201002
main11792-40020i200612-201002
main11792-B1020i200612-201002
main11793-40020i200612-201002
main11793-B1020i200612-201002
13011RING SET, PISTON
main13011-40030i200405-200808
sub13011-40050
main13011-40050i200808-200911
sub13011-40051
main13011-40051i200911-201002
sub13011-40052
main13011-97401i200405-200501
sub13011-97404
main13011-97404i200501-201002
main13013-B1010i200405-201002
13041BEARING, CONNECTING ROD
main13041-40030i200405-200505
sub13041-40031
main13041-40030-01i200405-200805
MARK1
sub13041-40031
main13041-40030-02i200405-200805
MARK2
sub13041-40031
main13041-40030-03i200405-200805
MARK3
sub13041-40031
main13041-40031-01i200805-201002
MARK1
sub13041-40032
main13041-40031-02i200805-201002
MARK2
sub13041-40032
main13041-40031-03i200805-201002
MARK3
sub13041-40032
main13041-97401i200405-201002
13101PISTON SUB-ASSY, W/PIN
main13101-40020i200405-200411
sub13101-40021
main13101-40021i200411-200909
sub13101-40030
main13101-40030i200909-201002
main13101-97401i200405-200612
sub13101-B1050
main13101-B1030i200612-201002
sub13101-B1070
main13101-B1060i200911-201002
sub13101-B1061
main13101-B1070i200903-200911
sub13101-B1060
main13103-97401i200405-200612
sub13103-B1070
main13103-B1050i200612-201002
sub13103-B1090
main13103-B1080i200911-201002
sub13103-B1081
main13103-B1090i200908-200911
sub13103-B1080
13201ROD SUB-ASSY, CONNECTING
main13201-49075i200405-200805
sub13201-49076
main13201-49076i200805-201002
sub13201-49077
main13201-97401i200405-201002
13202BEARING SET, CONNECTING ROD
main13204-40030i200405-200804
sub13204-40031
main13204-40031i200805-201002
main13204-97401i200405-200612
sub13204-B1010
main13204-B1010i200612-201002
main13205-B1010i200805-201002
main13205-B1020i200612-200805
sub13205-B1010
13265BOLT, CONNECTING ROD
main13265-21020i200405-201002
main13265-97401i200405-201002
13411CRANKSHAFT
main13401-40020i200405-201002
sub13401-40060
main13411-97401i200405-201002
13471PULLEY, CRANKSHAFT
main13470-97401i200405-201002
main13471-40060i200405-201002
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
main13521-40020i200405-201002
main13521-97401i200405-201002
9011914106
main90119-14106
9028004001
main90280-04001

14 parts on this diagram · 2 diagrams in section
