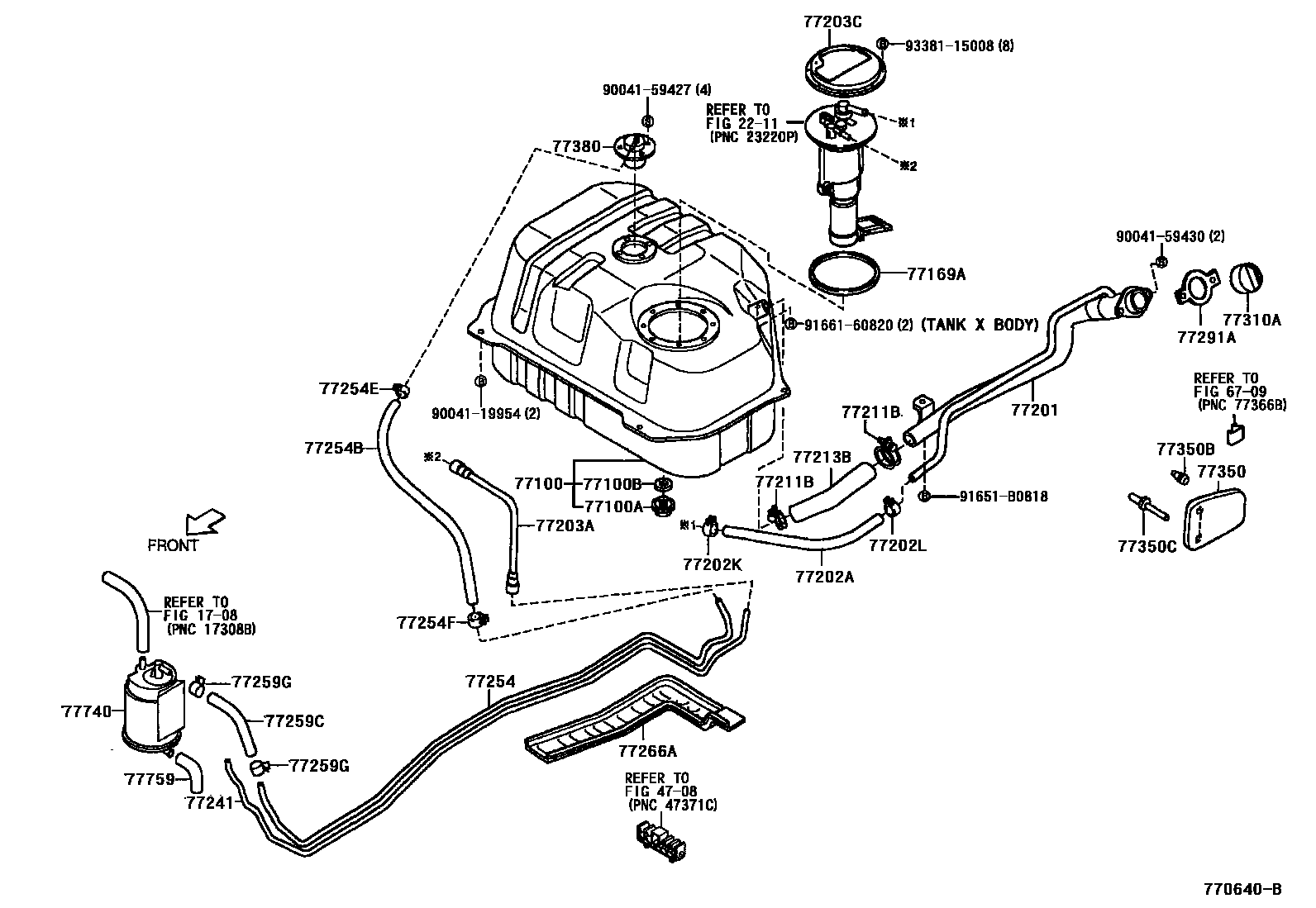

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1

1708

2211

4708

6709

77100TANK ASSY, FUEL

main77001-97201iM10#199809-200212

main77001-97202iM11#199809-200212

main77001-97209iM10#200301

sub77001-97207

main77001-97210iM11#200301

sub77001-97208

77100APLUG(FOR FUEL TANK)

main90041-05177iM10#,11#199809

77100BGASKET(FOR FUEL TANK)

main90044-30291iM10#,11#199809

77169AGASKET, FUEL SUCTION TUBE SET

main23232-87401iM10#,11#199809

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-97201iM10#199809-200209

main77201-97202iM11#199809-200209

main77201-97213iM10#200209

main77201-97214iM11#200209

77202AHOSE, FUEL, NO.1 (FOR BREATHER TUBE)

main77269-97201iM10#200005

main77269-97202iM11#200005

main95313-13028iM100199809-200005

main95313-13055iM110199809-200005

77202KCLAMP (FOR BREATHER HOSE)

main90044-67244×4iM100,110199809-200005

77202LCLAMP (FOR BREATHER HOSE, NO.1)

main96134-41900iM10#,11#199809

77203ATUBE SUB-ASSY, FUEL SUCTION

main77203-97201iM10#199809

main77203-97202iM11#199809

77203CBRACKET, FUEL PUMP

main23265-97201iM10#,11#199809-200209

main23265-B2010iM10#,11#200210

77211BCLAMP (FOR FUEL FILLER PIPE)

main96111-30440×2iM10#,11#199809

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-97201iM100199809-200005

main77213-97202iM110199809-200005

main77213-97205iM10#200005

main77213-97401iM11#200005

77241TUBE, FUEL MAIN, NO.1

main77241-97201iM100,110199809-199908

main77241-97204iM10#,11#199908

77254TUBE, FUEL EMISSION, NO.1

main77263-97201iM100,110199809-199908

main77263-97203iM10#,11#199908

77254BHOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1)

main77259-97201iM10#,11#199809

77254ECLAMP (FOR FUEL EMISSION HOSE)

main90044-67271iM10#,11#199809

77254FCLAMP (FOR FUEL EMISSION HOSE, NO.1)

main90044-67025iM10#,11#199809

77259CHOSE, FUEL

main90044-44039iM100,110199908-200005

main90044-44040iM10#,11#200005

main95333-04095iM100,110199809-199908

77259GCLIP, FUEL HOSE

main96132-41000×2iM10#,11#199809

77266APROTECTOR, FUEL TUBE, NO.1

main77266-97201iM10#,11#199809

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-97201iM10#,11#199809

77310ACAP ASSY, FUEL TANK

main77310-97201iM10#,11#199809-200112

main77310-97402iM10#,11#200112

77350LID ASSY, FUEL FILLER OPENING

main77350-97201iM10#,11#199809

77350BCUSHION(FOR FUEL FILLER OPENING LID)

main90045-40129×2iM10#,11#199809

77350CRIVET

main90042-69027×2iM10#,11#199809

77380VALVE ASSY, FUEL CUT OFF

main77380-87501iM10#,11#199809

77740CANISTER ASSY, CHARCOAL

main77740-97201iM100,110199809-200005

sub77740-97205

main77740-97203iM10#,11#200005

77759HOSE, CHARCOAL CANISTER

main77759-97201iM100,110199809-200005

main77759-97202iM10#,11#200005

9004119954

main90041-19954

9004159427

main90041-59427

9004159430

main90041-59430

91651B0818

main91651-B0818

9166160820

main91661-60820

9338115008

main93381-15008

38 parts on this diagram · 4 diagrams in section
