CAUTION PLATE (EXTERIOR & INTERIOR)

41992LABEL, DIFFERENTIAL NOTICE

main41992-33010iM11#200005

74529PLATE, CHILD PROOF OR CHILD PROTECTOR LOCK CAUTION

main69339-87201iM10#,11#199809

74529BLABEL, BACK DOOR OPEN STOP INFORMATION

main74529-97201iM10#,11#199809

74529DPLATE, CHILD PROTECTOR LOCK CAUTION

main69349-87203iM10#,11#199809

74538PLATE, JACK CARRIER CAUTION

main74509-97201iM10#199809-200107

sub74509-97202

main74509-97202iM10#200108

74538ELABEL, IGNITION SWICH NOTICE

main74538-97203iM100,110..V200012-200205

main74538-97203iM100,110..V200205

74541BPLATE, COMPACT SPARE TIRE CAUTION

main42668-87204iM10#,11#199809

74541GPLATE, SAFETY CAUTION

main42661-97201iM100..X;M10#..(V,VS)..WVVT199809-200112

main42661-97202iM110..X;M11#..(V,VS)..WVVT199809-200112

main42661-97221iM100..V199809-200005

main42661-97222iM110..V199809-200005

main42661-97422iM10#..V,X200112

main42661-97423iM11#..V,X200112

main42661-97424iM101..VS200112

main42661-97425iM111..VS200112

74559BLABEL, FUEL INFORMATION

main74559-97403iM101,111..VS;M101,111..4AT200005

74561ALABEL, FUEL CONSUMPTION INFORMATION

main75459-B2050iM10#,111200404

TYPE A

main75459-B2060iM101,110..5F200404

TYPE B

74562PLATE, EMISSION CONTROL SYSTEM INFORMATION

main11293-97208iM100,110199809-200204

main11293-97401iM101,111..5F..(V,X)200112-200204

main11293-97402iM101,111..ATM;M101,111..5F..VS200005-200204

main11293-97414iM101,111..5F..(V,X)200205-200209

sub11293-97421

main11293-97415iM101,111..4ATS;M101,111..5F..VS200205-200209

sub11293-97422

main11293-97417iM100,110200205-200209

sub11293-97424

main11293-97421iM101,111..5F..(V,X)200209

main11293-97422iM101,111..4ATS;M101,111..5F..VS200209

main11293-97424iM100,110200209

74563PLATE, EMISSION CONTROL DEVICE IDENTIFICATION

main75459-97201iM11#;M101..VS200112

main75459-97204iM10#..V,X200112

main75459-97401iM10#,11#200005-200012

sub75459-97402

main75459-97402iM10#,11#200101-200112

84568LABEL, FUEL PUMP RESET SWITCH CAUTION

main84568-97201iM100,110199809-200005

88723ELABEL, COOLER SERVICE CAUTION

main88733-97401iM10#,11#200203

89176ALABEL, AIRBAG DEPLOYMENT INFORMATION

main89176-97201iM10#,11#199904

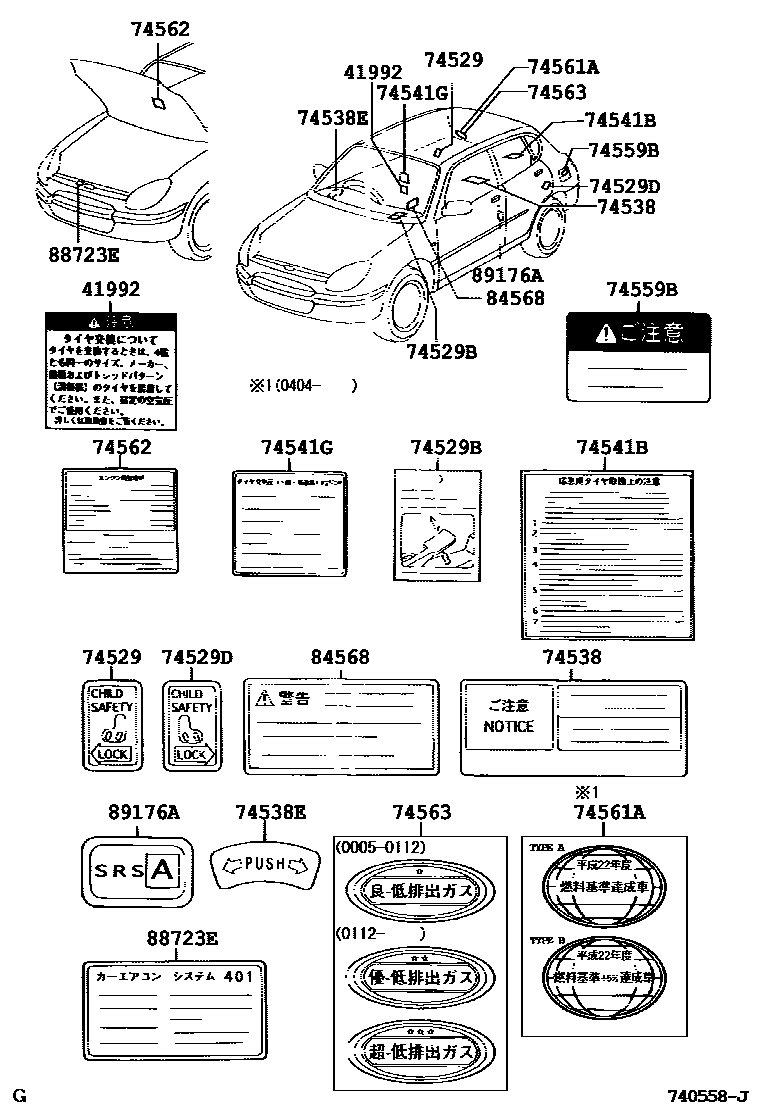

15 parts on this diagram · 1 diagram in section
