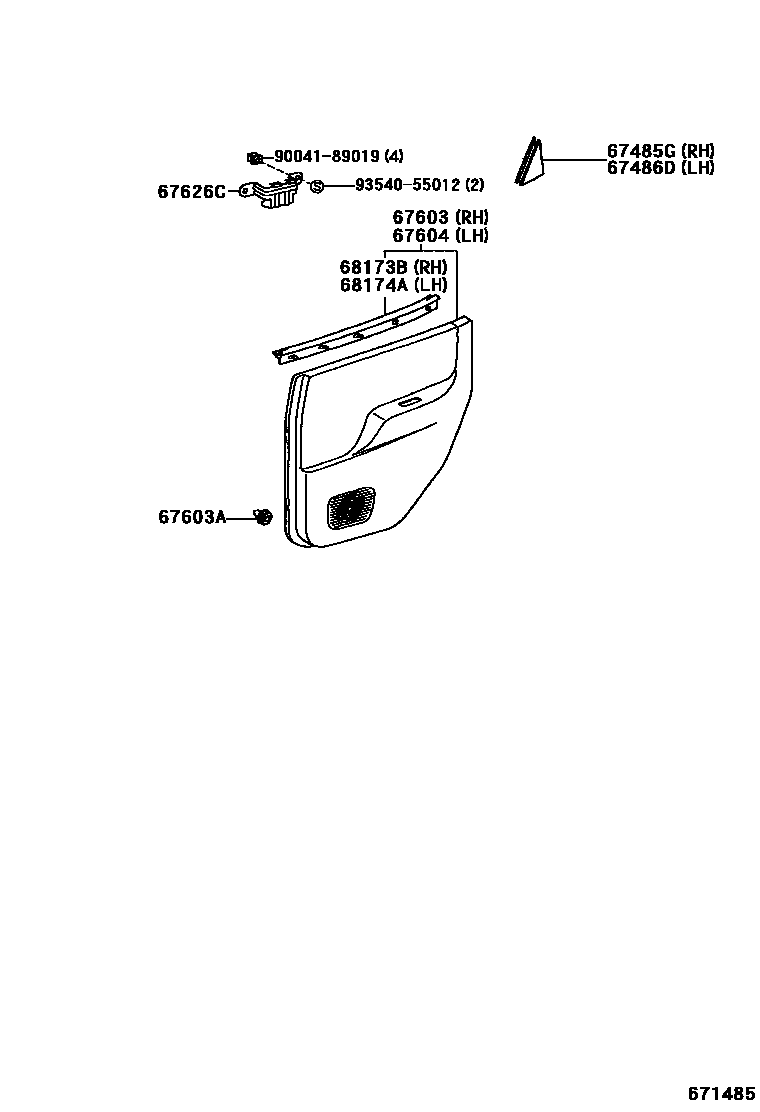

REAR DOOR PANEL & GLASS

0001 1 0002 1 0003 1

67485GSEAL, REAR DOOR REAR LOWER FRAME, RH

main67485-97201iM10#,11#199809

67486DSEAL, REAR DOOR REAR LOWER FRAME, LH

main67486-97201iM10#,11#199809

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67630-97201-03iM100,110..V199904-200005

main67630-97202-03iM100,110..X199809-200005

DARK GRAY,TRIMS6

main67630-97205-03iM100,110..V199809-200005

DARK GRAY,TRIMS6

main67630-97210-03iM100,110..X199809-199904

main67630-97225-03iM100,110..V199904-199907

main67630-97401-03iM100,110..X200005-200112

D.GRAY,TRIMS6

main67630-97401-07iM100,110..X200005-200112

L.GREENISH GRAY,TRIMS8

main67630-97402-03iM10#,11#..V,VS200005-200112

D.GRAY,TRIMS6

main67630-97402-07iM10#,11#..V,VS200005-200112

L.GREENISH GRAY,TRIMS8

main67630-97404-03iM101,111200005-200112

main67630-97405-03iM100,110..V200005-200112

main67630-97405-07iM100,110..V200005-200112

main67630-97413-05iM10#,11#..V,VS200012-200112

main67630-97414-04iM100,110..V200112

main67630-97414-07iM100,110..V200112

main67630-97415-04iM10#,11#..V200112

BLUE,TRIMS6

main67630-97415-07iM10#,11#..V200112

GREEN,TRIMS8

main67630-97416-05iM10#,11#..V200205

main67630-97417-01iM101,111..VS200112

BLACK,TRIMS6

main67630-97425-03iM100,110..V200303

67603ARETAINER(FOR REAR DOOR TRIM BOARD)

main67771-87204×14iM100,110199809-200005

main90044-68284×12iM10#,11#200005

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67640-97201-03iM100,110..V199904-200005

main67640-97202-03iM100,110..X199809-200005

DARK GRAY,TRIMS6

main67640-97205-03iM100,110..V199809-200005

DARK GRAY,TRIMS6

main67640-97210-03iM100,110..X199809-199904

main67640-97225-03iM100,110..V199904-199907

main67640-97401-03iM100,110..X200005-200112

D.GRAY,TRIMS6

main67640-97401-07iM100,110..X200005-200112

L.GREENISH GRAY,TRIMS8

main67640-97402-03iM10#,11#..V,VS200005-200112

D.GRAY,TRIMS6

main67640-97402-07iM10#,11#..V,VS200005-200112

L.GREENISH GRAY,TRIMS8

main67640-97404-03iM101,111200005-200112

main67640-97405-03iM100,110..V200005-200112

main67640-97405-07iM100,110..V200005-200112

main67640-97413-05iM10#,11#..V,VS200012-200112

main67640-97414-04iM100,110..V200112

main67640-97414-07iM100,110..V200112

main67640-97415-04iM10#,11#..V200112

BLUE,TRIMS6

main67640-97415-07iM10#,11#..V200112

GREEN,TRIMS8

main67640-97416-05iM10#,11#..X200112

BEIGE,TRIMS6

main67640-97417-01iM101,111..VS200112

BLACK,TRIMS6

main67640-97425-03iM100,110..V200303

67626CBRACKET, REAR DOOR TRIM, NO.2

main67626-97201×2iM10#,11#199809

68173BWEATHERSTRIP, REAR DOOR GLASS, INNER RH

main68173-97201iM10#,11#199809

68174AWEATHERSTRIP, REAR DOOR GLASS, INNER LH

main68174-97201iM10#,11#199809

9004189019

main90041-89019

9354055012

main93540-55012

10 parts on this diagram · 3 diagrams in section
