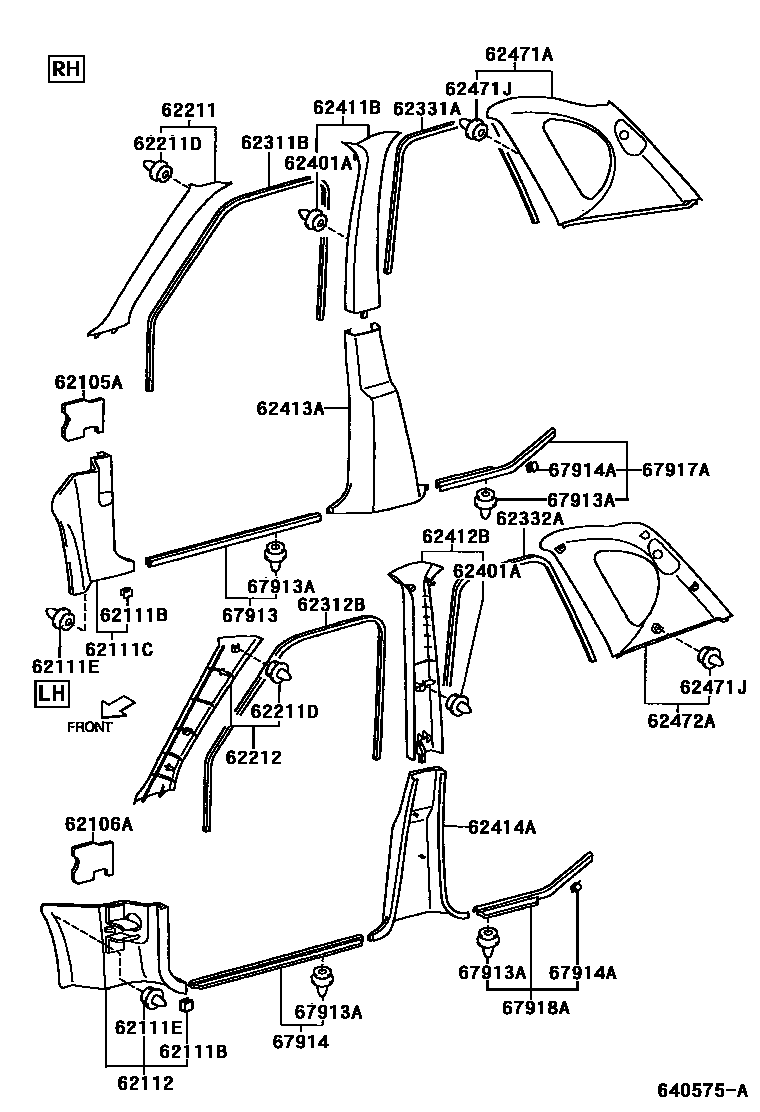

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

62105AINSULATOR SUB-ASSY, COWL SIDE, UPPER RH

main62105-97201iM10#,11#199809

62106AINSULATOR SUB-ASSY, COWL SIDE, UPPER LH

main62106-97201iM10#,11#199809

62111BCLIP(FOR COWL SIDE TRIM)

main90044-68288×2iM10#,11#199809

62111CBOARD, COWL SIDE TRIM, RH

main62111-97201-03iM10#,11#199809

DARK GRAY,TRIMS6

main62111-97201-13iM10#,11#200005

D.GRAY,TRIMS8

62111ERETAINER, COWL SIDE TRIM

main90044-67397×2iM10#,11#199809

62112BOARD, COWL SIDE TRIM, LH

main62112-97201-03iM10#,11#199809

DARK GRAY,TRIMS6

main62112-97201-13iM10#,11#200005

D.GRAY,TRIMS8

62211GARNISH, FRONT PILLAR, RH

main62211-97201-08iM100,110199809

IVORY,TRIMS6,S8

main62211-97401-08iM101,111200005

IVORY,TRIMS6,S8

62211DCLIP(FOR FRONT BODY PILLAR GARNISH)

main90044-68284×4iM10#,11#199809

62212GARNISH, FRONT PILLAR, LH

main62212-97201-08iM100,110199809

IVORY,TRIMS6,S8

main62212-97401-08iM101,111200005

IVORY,TRIMS6,S8

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62313-97201-08iM100,110199809-199907

IVORY,TRIMS6

main62313-97207-08iM100,110199908-200112

IVORY,TRIMS6,S8

main62313-97401-08iM101,111200005-200112

IVORY,TRIMS6,S8

main62313-97402-08iM10#,11#..VS,X200112

IVORY,TRIMS6,S8

main62313-97403-08iM10#,11#..V200112

IVORY,TRIMS6,S8

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62313-97201-08iM100,110199809-199907

IVORY,TRIMS6

main62313-97207-08iM100,110199908-200112

IVORY,TRIMS6,S8

main62313-97403-08iM10#,11#..V200112

IVORY,TRIMS6,S8

main62314-97401-08iM101,111200005-200112

IVORY,TRIMS6,S8

main62314-97402-08iM10#,11#..VS,X200112

IVORY,TRIMS6,S8

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62343-97201-08iM100,110199809-199907

IVORY,TRIMS6

main62343-97205-08iM10#,11#199908

IVORY,TRIMS6,S8

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62343-97201-08iM100,110199809-199907

IVORY,TRIMS6

main62343-97205-08iM10#,11#199908

IVORY,TRIMS6,S8

62401ACLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER)

main90044-68284×2iM10#,11#199809

62411BGARNISH, CENTER PILLAR, UPPER RH

main62411-97201-08iM10#,11#199809

IVORY,TRIMS6,S8

62412BGARNISH, CENTER PILLAR, UPPER LH

main62412-97201-08iM10#,11#199809

IVORY,TRIMS6,S8

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-97201-03iM10#,11#199809

DARK GRAY,TRIMS6

main62413-97201-13iM10#,11#200005

D.GRAY,TRIMS8

main62413-97202-03iM100,110199904-200005

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-97201-03iM10#,11#199809

DARK GRAY,TRIMS6

main62414-97201-13iM10#,11#200005

D.GRAY,TRIMS8

main62414-97202-03iM100,110..X199809-199904

62471AGARNISH, ROOF SIDE, INNER RH

main62471-97201-08iM100,110199809-200005

IVORY,TRIMS6

main62471-97402-08iM101,111200005

IVORY,TRIMS6,S8

62471JCLIP (FOR ROOF SIDE GARNISH)

main90044-68284×12iM10#,11#199809

62472AGARNISH, ROOF SIDE, INNER LH

main62472-97201-08iM100,110199809-200005

IVORY,TRIMS6

main62472-97402-08iM101,111200005

IVORY,TRIMS6,S8

67913PLATE, FRONT DOOR SCUFF, RH

main67913-97201-03iM10#,11#199809

DARK GRAY,TRIMS6

main67913-97201-23iM10#,11#200005

D.GRAY,TRIMS8

67913ACLIP(FOR SCUFF PLATE)

main90044-68284×10iM10#,11#199809

67914PLATE, FRONT DOOR SCUFF, LH

main67914-97201-03iM10#,11#199809

DARK GRAY,TRIMS6

main67914-97201-23iM10#,11#200005

D.GRAY,TRIMS8

67914ACLIP(FOR SCUFF PLATE)

main90044-68288×2iM10#,11#199809

67917APLATE, REAR DOOR SCUFF, RH

main67917-97201-03iM10#,11#199809

DARK GRAY,TRIMS6

main67917-97201-33iM10#,11#200005

D.GRAY,TRIMS8

67918APLATE, REAR DOOR SCUFF, LH

main67918-97201-03iM10#,11#199809

DARK GRAY,TRIMS6

main67918-97201-33iM10#,11#200005

D.GRAY,TRIMS8

27 parts on this diagram · 1 diagram in section
