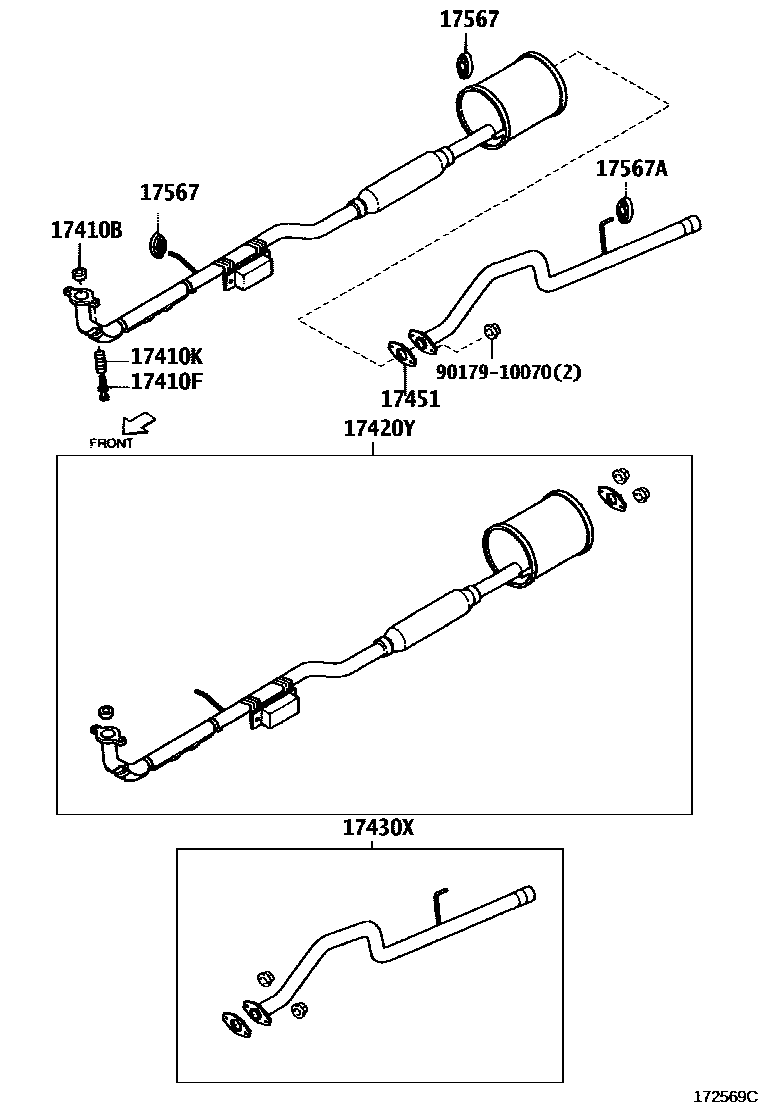

EXHAUST PIPE

0001 1 0002 1 0003 1 0004 1

17410BGASKET, EXHAUST PIPE

main17451-97203iEJ#..M100,110199809-200107

sub17451-97204

main17451-97204iEJVE..M100,110200108

sub17451-B1020

main17451-97501iK3VE..M101,111200005-200210

sub17451-97503

main17451-97503iK3VE..M101,111200211

sub17451-B1031

17410FBOLT OR RING, EXHAUST PIPE FRONT (FOR FRONT)

main17569-97201iK3VE,EJ#..M10#,11#199809

17410KSPRING, EXHAUST PIPE

main17152-87201iEJDE..M100,110199809-200005

sub17152-97401

main17152-97201iK3VE,EJVE..M10#,11#200109

main17152-97401iK3VE,EJVE..M10#,11#200005-200108

sub17152-97201

17420YPIPE SET, EXHAUST, FRONT

main17420-B9530iEJDE..M100199809-200005

main17420-B9540iEJDE..M110199809-200005

main17420-B9560iEJVE..M100200005

main17420-B9570iEJVE..M110200005

main17420-B9580iK3VE..M101200005

main17420-B9590iK3VE..M111200005

17430XPIPE SET, EXHAUST TAIL

main17430-B9550iEJDE..M100,110199809-200005

main17430-B9570iEJVE..M100,110200112

main17430-B9580iK3VE..M101,111..V,X200112

main17430-B9590iEJVE..M100,110200005-200112

main17430-B9600iK3VE..M101,111200005-200112

main17430-B9610iK3VE..M101,111200007-200112

main17430-B9610iK3VE..M101,111200005-200006

main17430-B9610iK3VE..M101,111..VS200112

17451GASKET, EXHAUST PIPE

main17458-87705iEJ#..M100,110199809

main90044-30270iK3VE..M101,111200005

17567CUSHION, EXHAUST PIPE SUPPORT

main17567-87210iEJ#..M100,110199809

sub17567-B1010

main17567-87215iK3VE..M101,111200005

17567ACUSHION, EXHAUST PIPE SUPPORT, NO.2

main17567-87503iEJDE..M100,110199809-200005

main17567-87704iK3VE,EJVE..M10#,11#200005

9017910070

main90179-10070

9 parts on this diagram · 4 diagrams in section
