E
EPC Data

CAMSHAFT & VALVE

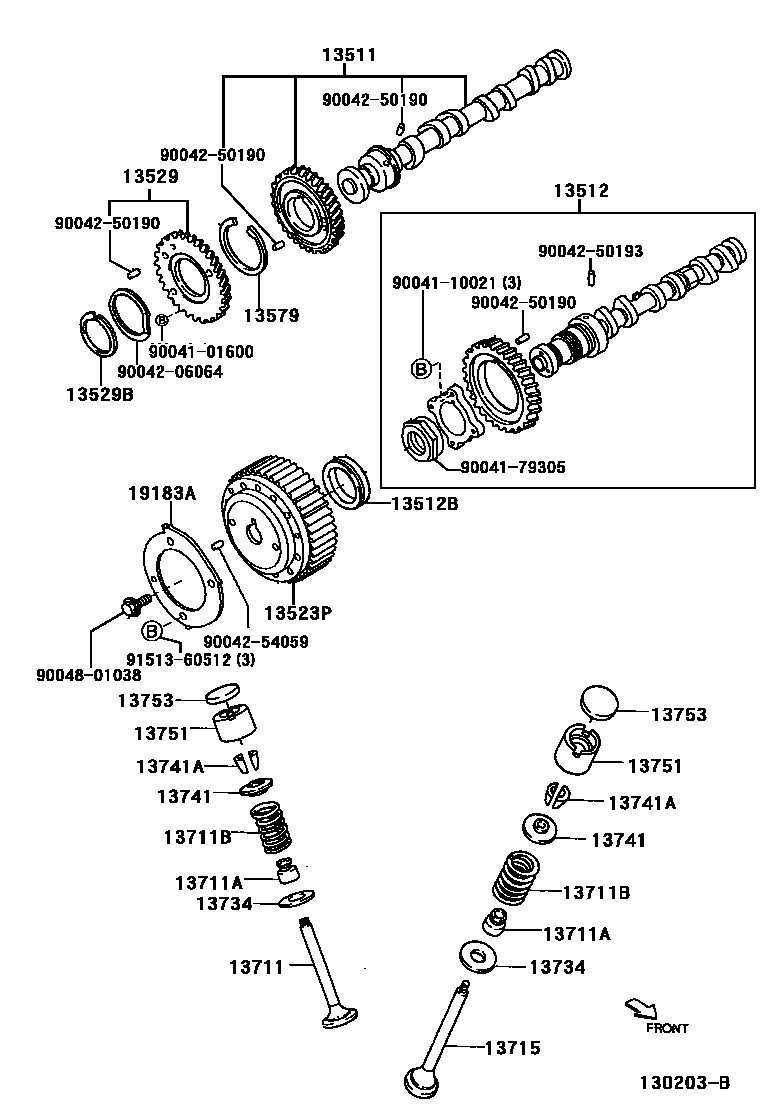

Parts diagram
13511CAMSHAFT
main13501-97401i200112
main13501-97402i200005
main13510-87206i199809-200005
main13510-97401i200005
13512CAMSHAFT, NO.2
main13502-97204i200005
main13502-97401i200112
main13502-97402i200005
main13520-97203i199809-200005
sub13520-97206
13512BSEAL, TYPE T OIL(FOR CAMSHAFT NO.2)
main90043-11337i199809
13523GEAR OR SPROCKET, CAMSHAFT TIMING
main13523-97401i200005
13523PPULLEY, CAMSHAFT TIMING
main13523-97202i199809
13529GEAR, CAMSHAFT SUB
main13509-87203i199809
13529BRING, SHAFT SNAP(FOR CAMSHAFT SUB GEAR)
main90045-20292i199809
13579WASHER, CAMSHAFT TIMING GEAR BOLT
main13579-87201i199809
13711VALVE, INTAKE
main13711-97205i199809
main13711-97401i200005
13711ASEAL OR RING, O(FOR VALVE STEM OIL)
main90048-12021i199809
13711BSPRING, COMPRESSION(FOR INNER)
main90045-01565i199809
main90045-01567i200112
main90045-01568i200112
main90045-01580i200005
main90045-01708i199809
sub90045-01565
13715VALVE, EXHAUST
main13715-97203i199809
main13715-97401i200005
13734SEAT, VALVE SPRING
main13734-87206i199809
13741RETAINER, VALVE SPRING
main13741-97201i199809
sub13741-97202
main13741-97401i200005
13741ALOCK, VALVE SPRING RETAINER
main90048-13013i199809
13751LIFTER, VALVE
main13751-87202i199809
main13751-97401-12i200005
sub13751-B6030
sub13751-B6040
sub13751-B6050
sub13751-B6060
sub13751-B6070
sub13751-B6080
sub13751-B6090
sub13751-B6100
sub13751-B6110
sub13751-B6120
sub13751-B6130
sub13751-B6140
sub13751-B6150
sub13751-B6160
sub13751-B6170
sub13751-B6180
sub13751-B6190
sub13751-B6200
sub13751-B6210
sub13751-B6220
sub13751-B6230
sub13751-B6240
sub13751-B6250
sub13751-B6260
sub13751-B6270
sub13751-B6280
sub13751-B6290
sub13751-B6300
sub13751-B6310
main13751-97401-14i200005
sub13751-B6030
sub13751-B6040
sub13751-B6050
sub13751-B6060
sub13751-B6070
sub13751-B6080
sub13751-B6090
sub13751-B6100
sub13751-B6110
sub13751-B6120
sub13751-B6130
sub13751-B6140
sub13751-B6150
sub13751-B6160
sub13751-B6170
sub13751-B6180
sub13751-B6190
sub13751-B6200
sub13751-B6210
sub13751-B6220
sub13751-B6230
sub13751-B6240
sub13751-B6250
sub13751-B6260
sub13751-B6270
sub13751-B6280
sub13751-B6290
sub13751-B6300
sub13751-B6310
main13751-97401-16i200005
sub13751-B6030
sub13751-B6040
sub13751-B6050
sub13751-B6060
sub13751-B6070
sub13751-B6080
sub13751-B6090
sub13751-B6100
sub13751-B6110
sub13751-B6120
sub13751-B6130
sub13751-B6140
sub13751-B6150
sub13751-B6160
sub13751-B6170
sub13751-B6180
sub13751-B6190
sub13751-B6200
sub13751-B6210
sub13751-B6220
sub13751-B6230
sub13751-B6240
sub13751-B6250
sub13751-B6260
sub13751-B6270
sub13751-B6280
sub13751-B6290
sub13751-B6300
sub13751-B6310
main13751-97401-18i200005
sub13751-B6030
sub13751-B6040
sub13751-B6050
sub13751-B6060
sub13751-B6070
sub13751-B6080
sub13751-B6090
sub13751-B6100
sub13751-B6110
sub13751-B6120
sub13751-B6130
sub13751-B6140
sub13751-B6150
sub13751-B6160
sub13751-B6170
sub13751-B6180
sub13751-B6190
sub13751-B6200
sub13751-B6210
sub13751-B6220
sub13751-B6230
sub13751-B6240
sub13751-B6250
sub13751-B6260
sub13751-B6270
sub13751-B6280
sub13751-B6290
sub13751-B6300
sub13751-B6310
main13751-97401-20i200005
sub13751-B6030
sub13751-B6040
sub13751-B6050
sub13751-B6060
sub13751-B6070
sub13751-B6080
sub13751-B6090
sub13751-B6100
sub13751-B6110
sub13751-B6120
sub13751-B6130
sub13751-B6140
sub13751-B6150
sub13751-B6160
sub13751-B6170
sub13751-B6180
sub13751-B6190
sub13751-B6200
sub13751-B6210
sub13751-B6220
sub13751-B6230
sub13751-B6240
sub13751-B6250
sub13751-B6260
sub13751-B6270
sub13751-B6280
sub13751-B6290
sub13751-B6300
sub13751-B6310
main13751-97401-22i200005
sub13751-B6030
sub13751-B6040
sub13751-B6050
sub13751-B6060
sub13751-B6070
sub13751-B6080
sub13751-B6090
sub13751-B6100
sub13751-B6110
sub13751-B6120
sub13751-B6130
sub13751-B6140
sub13751-B6150
sub13751-B6160
sub13751-B6170
sub13751-B6180
sub13751-B6190
sub13751-B6200
sub13751-B6210
sub13751-B6220
sub13751-B6230
sub13751-B6240
sub13751-B6250
sub13751-B6260
sub13751-B6270
sub13751-B6280
sub13751-B6290
sub13751-B6300
sub13751-B6310
main13751-97401-24i200005
sub13751-B6030
sub13751-B6040
sub13751-B6050
sub13751-B6060
sub13751-B6070
sub13751-B6080
sub13751-B6090
sub13751-B6100
sub13751-B6110
sub13751-B6120
sub13751-B6130
sub13751-B6140
sub13751-B6150
sub13751-B6160
sub13751-B6170
sub13751-B6180
sub13751-B6190
sub13751-B6200
sub13751-B6210
sub13751-B6220
sub13751-B6230
sub13751-B6240
sub13751-B6250
sub13751-B6260
sub13751-B6270
sub13751-B6280
sub13751-B6290
sub13751-B6300
sub13751-B6310
main13751-97401-26i200005
sub13751-B6030
sub13751-B6040
sub13751-B6050
sub13751-B6060
sub13751-B6070
sub13751-B6080
sub13751-B6090
sub13751-B6100
sub13751-B6110
sub13751-B6120
sub13751-B6130
sub13751-B6140
sub13751-B6150
sub13751-B6160
sub13751-B6170
sub13751-B6180
sub13751-B6190
sub13751-B6200
sub13751-B6210
sub13751-B6220
sub13751-B6230
sub13751-B6240
sub13751-B6250
sub13751-B6260
sub13751-B6270
sub13751-B6280
sub13751-B6290
sub13751-B6300
sub13751-B6310
main13751-97401-28i200005
sub13751-B6030
sub13751-B6040
sub13751-B6050
sub13751-B6060
sub13751-B6070
sub13751-B6080
sub13751-B6090
sub13751-B6100
sub13751-B6110
sub13751-B6120
sub13751-B6130
sub13751-B6140
sub13751-B6150
sub13751-B6160
sub13751-B6170
sub13751-B6180
sub13751-B6190
sub13751-B6200
sub13751-B6210
sub13751-B6220
sub13751-B6230
sub13751-B6240
sub13751-B6250
sub13751-B6260
sub13751-B6270
sub13751-B6280
sub13751-B6290
sub13751-B6300
sub13751-B6310
main13751-97401-30i200005
sub13751-B6030
sub13751-B6040
sub13751-B6050
sub13751-B6060
sub13751-B6070
sub13751-B6080
sub13751-B6090
sub13751-B6100
sub13751-B6110
sub13751-B6120
sub13751-B6130
sub13751-B6140
sub13751-B6150
sub13751-B6160
sub13751-B6170
sub13751-B6180
sub13751-B6190
sub13751-B6200
sub13751-B6210
sub13751-B6220
sub13751-B6230
sub13751-B6240
sub13751-B6250
sub13751-B6260
sub13751-B6270
sub13751-B6280
sub13751-B6290
sub13751-B6300
sub13751-B6310
main13751-97401-32i200005
sub13751-B6030
sub13751-B6040
sub13751-B6050
sub13751-B6060
sub13751-B6070
sub13751-B6080
sub13751-B6090
sub13751-B6100
sub13751-B6110
sub13751-B6120
sub13751-B6130
sub13751-B6140
sub13751-B6150
sub13751-B6160
sub13751-B6170
sub13751-B6180
sub13751-B6190
sub13751-B6200
sub13751-B6210
sub13751-B6220
sub13751-B6230
sub13751-B6240
sub13751-B6250
sub13751-B6260
sub13751-B6270
sub13751-B6280
sub13751-B6290
sub13751-B6300
sub13751-B6310
main13751-97401-34i200005
sub13751-B6030
sub13751-B6040
sub13751-B6050
sub13751-B6060
sub13751-B6070
sub13751-B6080
sub13751-B6090
sub13751-B6100
sub13751-B6110
sub13751-B6120
sub13751-B6130
sub13751-B6140
sub13751-B6150
sub13751-B6160
sub13751-B6170
sub13751-B6180
sub13751-B6190
sub13751-B6200
sub13751-B6210
sub13751-B6220
sub13751-B6230
sub13751-B6240
sub13751-B6250
sub13751-B6260
sub13751-B6270
sub13751-B6280
sub13751-B6290
sub13751-B6300
sub13751-B6310
main13751-97401-36i200005
sub13751-B6030
sub13751-B6040
sub13751-B6050
sub13751-B6060
sub13751-B6070
sub13751-B6080
sub13751-B6090
sub13751-B6100
sub13751-B6110
sub13751-B6120
sub13751-B6130
sub13751-B6140
sub13751-B6150
sub13751-B6160
sub13751-B6170
sub13751-B6180
sub13751-B6190
sub13751-B6200
sub13751-B6210
sub13751-B6220
sub13751-B6230
sub13751-B6240
sub13751-B6250
sub13751-B6260
sub13751-B6270
sub13751-B6280
sub13751-B6290
sub13751-B6300
sub13751-B6310
main13751-97401-38i200005
sub13751-B6030
sub13751-B6040
sub13751-B6050
sub13751-B6060
sub13751-B6070
sub13751-B6080
sub13751-B6090
sub13751-B6100
sub13751-B6110
sub13751-B6120
sub13751-B6130
sub13751-B6140
sub13751-B6150
sub13751-B6160
sub13751-B6170
sub13751-B6180
sub13751-B6190
sub13751-B6200
sub13751-B6210
sub13751-B6220
sub13751-B6230
sub13751-B6240
sub13751-B6250
sub13751-B6260
sub13751-B6270
sub13751-B6280
sub13751-B6290
sub13751-B6300
sub13751-B6310
main13751-97401-40i200005
sub13751-B6030
sub13751-B6040
sub13751-B6050
sub13751-B6060
sub13751-B6070
sub13751-B6080
sub13751-B6090
sub13751-B6100
sub13751-B6110
sub13751-B6120
sub13751-B6130
sub13751-B6140
sub13751-B6150
sub13751-B6160
sub13751-B6170
sub13751-B6180
sub13751-B6190
sub13751-B6200
sub13751-B6210
sub13751-B6220
sub13751-B6230
sub13751-B6240
sub13751-B6250
sub13751-B6260
sub13751-B6270
sub13751-B6280
sub13751-B6290
sub13751-B6300
sub13751-B6310
main13751-97401-42i200005
sub13751-B6030
sub13751-B6040
sub13751-B6050
sub13751-B6060
sub13751-B6070
sub13751-B6080
sub13751-B6090
sub13751-B6100
sub13751-B6110
sub13751-B6120
sub13751-B6130
sub13751-B6140
sub13751-B6150
sub13751-B6160
sub13751-B6170
sub13751-B6180
sub13751-B6190
sub13751-B6200
sub13751-B6210
sub13751-B6220
sub13751-B6230
sub13751-B6240
sub13751-B6250
sub13751-B6260
sub13751-B6270
sub13751-B6280
sub13751-B6290
sub13751-B6300
sub13751-B6310
main13751-97401-44i200005
sub13751-B6030
sub13751-B6040
sub13751-B6050
sub13751-B6060
sub13751-B6070
sub13751-B6080
sub13751-B6090
sub13751-B6100
sub13751-B6110
sub13751-B6120
sub13751-B6130
sub13751-B6140
sub13751-B6150
sub13751-B6160
sub13751-B6170
sub13751-B6180
sub13751-B6190
sub13751-B6200
sub13751-B6210
sub13751-B6220
sub13751-B6230
sub13751-B6240
sub13751-B6250
sub13751-B6260
sub13751-B6270
sub13751-B6280
sub13751-B6290
sub13751-B6300
sub13751-B6310
main13751-97401-46i200005
sub13751-B6030
sub13751-B6040
sub13751-B6050
sub13751-B6060
sub13751-B6070
sub13751-B6080
sub13751-B6090
sub13751-B6100
sub13751-B6110
sub13751-B6120
sub13751-B6130
sub13751-B6140
sub13751-B6150
sub13751-B6160
sub13751-B6170
sub13751-B6180
sub13751-B6190
sub13751-B6200
sub13751-B6210
sub13751-B6220
sub13751-B6230
sub13751-B6240
sub13751-B6250
sub13751-B6260
sub13751-B6270
sub13751-B6280
sub13751-B6290
sub13751-B6300
sub13751-B6310
main13751-97401-48i200005
sub13751-B6030
sub13751-B6040
sub13751-B6050
sub13751-B6060
sub13751-B6070
sub13751-B6080
sub13751-B6090
sub13751-B6100
sub13751-B6110
sub13751-B6120
sub13751-B6130
sub13751-B6140
sub13751-B6150
sub13751-B6160
sub13751-B6170
sub13751-B6180
sub13751-B6190
sub13751-B6200
sub13751-B6210
sub13751-B6220
sub13751-B6230
sub13751-B6240
sub13751-B6250
sub13751-B6260
sub13751-B6270
sub13751-B6280
sub13751-B6290
sub13751-B6300
sub13751-B6310
main13751-97401-50i200005
sub13751-B6030
sub13751-B6040
sub13751-B6050
sub13751-B6060
sub13751-B6070
sub13751-B6080
sub13751-B6090
sub13751-B6100
sub13751-B6110
sub13751-B6120
sub13751-B6130
sub13751-B6140
sub13751-B6150
sub13751-B6160
sub13751-B6170
sub13751-B6180
sub13751-B6190
sub13751-B6200
sub13751-B6210
sub13751-B6220
sub13751-B6230
sub13751-B6240
sub13751-B6250
sub13751-B6260
sub13751-B6270
sub13751-B6280
sub13751-B6290
sub13751-B6300
sub13751-B6310
main13751-97401-52i200005
sub13751-B6030
sub13751-B6040
sub13751-B6050
sub13751-B6060
sub13751-B6070
sub13751-B6080
sub13751-B6090
sub13751-B6100
sub13751-B6110
sub13751-B6120
sub13751-B6130
sub13751-B6140
sub13751-B6150
sub13751-B6160
sub13751-B6170
sub13751-B6180
sub13751-B6190
sub13751-B6200
sub13751-B6210
sub13751-B6220
sub13751-B6230
sub13751-B6240
sub13751-B6250
sub13751-B6260
sub13751-B6270
sub13751-B6280
sub13751-B6290
sub13751-B6300
sub13751-B6310
main13751-97401-54i200005
sub13751-B6030
sub13751-B6040
sub13751-B6050
sub13751-B6060
sub13751-B6070
sub13751-B6080
sub13751-B6090
sub13751-B6100
sub13751-B6110
sub13751-B6120
sub13751-B6130
sub13751-B6140
sub13751-B6150
sub13751-B6160
sub13751-B6170
sub13751-B6180
sub13751-B6190
sub13751-B6200
sub13751-B6210
sub13751-B6220
sub13751-B6230
sub13751-B6240
sub13751-B6250
sub13751-B6260
sub13751-B6270
sub13751-B6280
sub13751-B6290
sub13751-B6300
sub13751-B6310
main13751-97401-56i200005
sub13751-B6030
sub13751-B6040
sub13751-B6050
sub13751-B6060
sub13751-B6070
sub13751-B6080
sub13751-B6090
sub13751-B6100
sub13751-B6110
sub13751-B6120
sub13751-B6130
sub13751-B6140
sub13751-B6150
sub13751-B6160
sub13751-B6170
sub13751-B6180
sub13751-B6190
sub13751-B6200
sub13751-B6210
sub13751-B6220
sub13751-B6230
sub13751-B6240
sub13751-B6250
sub13751-B6260
sub13751-B6270
sub13751-B6280
sub13751-B6290
sub13751-B6300
sub13751-B6310
main13751-97401-58i200005
sub13751-B6030
sub13751-B6040
sub13751-B6050
sub13751-B6060
sub13751-B6070
sub13751-B6080
sub13751-B6090
sub13751-B6100
sub13751-B6110
sub13751-B6120
sub13751-B6130
sub13751-B6140
sub13751-B6150
sub13751-B6160
sub13751-B6170
sub13751-B6180
sub13751-B6190
sub13751-B6200
sub13751-B6210
sub13751-B6220
sub13751-B6230
sub13751-B6240
sub13751-B6250
sub13751-B6260
sub13751-B6270
sub13751-B6280
sub13751-B6290
sub13751-B6300
sub13751-B6310
main13751-97401-60i200005
sub13751-B6030
sub13751-B6040
sub13751-B6050
sub13751-B6060
sub13751-B6070
sub13751-B6080
sub13751-B6090
sub13751-B6100
sub13751-B6110
sub13751-B6120
sub13751-B6130
sub13751-B6140
sub13751-B6150
sub13751-B6160
sub13751-B6170
sub13751-B6180
sub13751-B6190
sub13751-B6200
sub13751-B6210
sub13751-B6220
sub13751-B6230
sub13751-B6240
sub13751-B6250
sub13751-B6260
sub13751-B6270
sub13751-B6280
sub13751-B6290
sub13751-B6300
sub13751-B6310
main13751-97401-62i200005
sub13751-B6030
sub13751-B6040
sub13751-B6050
sub13751-B6060
sub13751-B6070
sub13751-B6080
sub13751-B6090
sub13751-B6100
sub13751-B6110
sub13751-B6120
sub13751-B6130
sub13751-B6140
sub13751-B6150
sub13751-B6160
sub13751-B6170
sub13751-B6180
sub13751-B6190
sub13751-B6200
sub13751-B6210
sub13751-B6220
sub13751-B6230
sub13751-B6240
sub13751-B6250
sub13751-B6260
sub13751-B6270
sub13751-B6280
sub13751-B6290
sub13751-B6300
sub13751-B6310
main13751-97401-64i200005
sub13751-B6030
sub13751-B6040
sub13751-B6050
sub13751-B6060
sub13751-B6070
sub13751-B6080
sub13751-B6090
sub13751-B6100
sub13751-B6110
sub13751-B6120
sub13751-B6130
sub13751-B6140
sub13751-B6150
sub13751-B6160
sub13751-B6170
sub13751-B6180
sub13751-B6190
sub13751-B6200
sub13751-B6210
sub13751-B6220
sub13751-B6230
sub13751-B6240
sub13751-B6250
sub13751-B6260
sub13751-B6270
sub13751-B6280
sub13751-B6290
sub13751-B6300
sub13751-B6310
main13751-97401-66i200005
sub13751-B6030
sub13751-B6040
sub13751-B6050
sub13751-B6060
sub13751-B6070
sub13751-B6080
sub13751-B6090
sub13751-B6100
sub13751-B6110
sub13751-B6120
sub13751-B6130
sub13751-B6140
sub13751-B6150
sub13751-B6160
sub13751-B6170
sub13751-B6180
sub13751-B6190
sub13751-B6200
sub13751-B6210
sub13751-B6220
sub13751-B6230
sub13751-B6240
sub13751-B6250
sub13751-B6260
sub13751-B6270
sub13751-B6280
sub13751-B6290
sub13751-B6300
sub13751-B6310
main13751-97401-68i200005
sub13751-B6030
sub13751-B6040
sub13751-B6050
sub13751-B6060
sub13751-B6070
sub13751-B6080
sub13751-B6090
sub13751-B6100
sub13751-B6110
sub13751-B6120
sub13751-B6130
sub13751-B6140
sub13751-B6150
sub13751-B6160
sub13751-B6170
sub13751-B6180
sub13751-B6190
sub13751-B6200
sub13751-B6210
sub13751-B6220
sub13751-B6230
sub13751-B6240
sub13751-B6250
sub13751-B6260
sub13751-B6270
sub13751-B6280
sub13751-B6290
sub13751-B6300
sub13751-B6310
13753SHIM, VALVE ADJUSTING
main13735-87202i199809
main13735-87203i199809
main13735-87204i199809
main13735-87205i199809
main13735-87206i199809
main13735-87207i199809
main13735-87208i199809
main13735-87209i199809
main13735-87210i199809
main13735-87211i199809
main13735-87212i199809
main13735-87213i199809
main13735-87214i199809
main13735-87215i199809
main13735-87216i199809
main13735-87217i199809
main13735-87218i199809
main13735-87219i199809
main13735-87220i199809
main13735-87221i199809
main13735-87222i199809
main13735-87223i199809
main13735-87224i199809
main13735-87225i199809
main13735-87226i199809
main13735-87227i199809
main13735-87228i199809
main13735-87229i199809
main13735-87230i199809
main13735-87231i199809
main13735-87232i199809
main13735-87233i199809
main13735-87234i199809
main13735-87235i199809
main13735-87236i199809
main13735-87237i199809
main13735-87238i199809
main13735-87239i199809
main13735-87240i199809
main13735-87241i199809
main13735-87242i199809
19183AROTOR, SIGNAL
main19183-97203i199809
9004101600
main90041-01600
9004110021
main90041-10021
9004179305
main90041-79305
9004206064
main90042-06064
9004250190
main90042-50190
9004250193
main90042-50193
9004254059
main90042-54059
9004801038
main90048-01038
9151360512
main91513-60512

27 parts on this diagram · 4 diagrams in section

CAMSHAFT & VALVE — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
