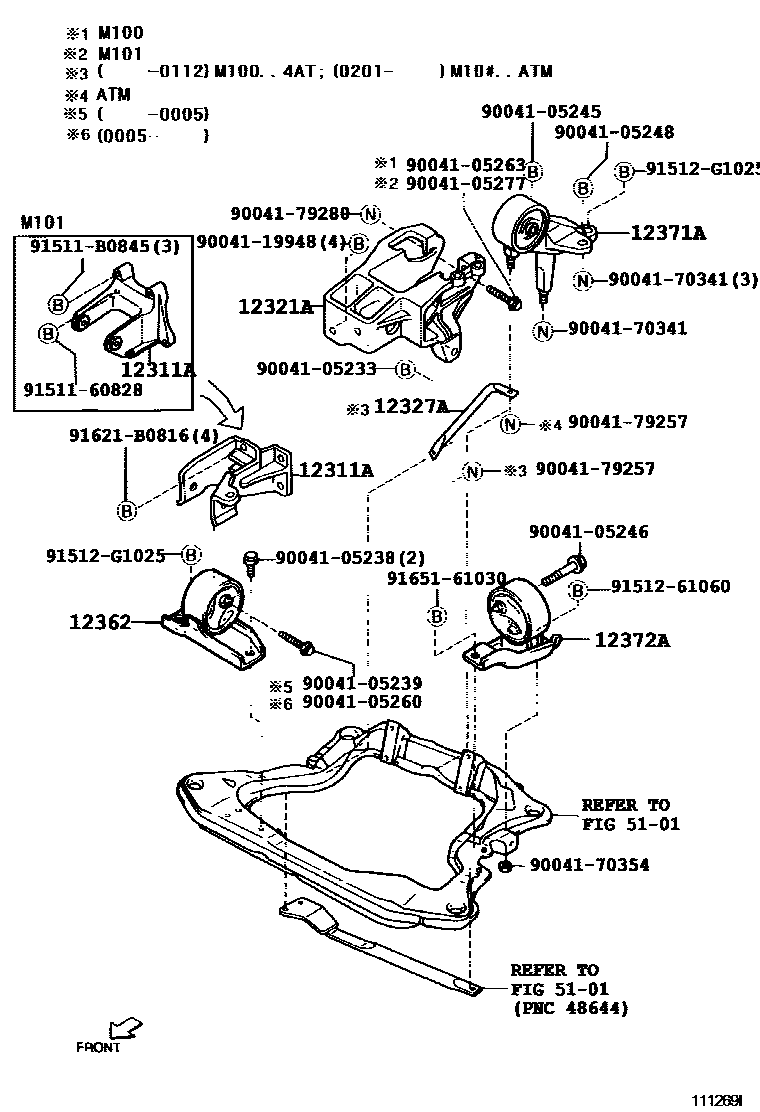

MOUNTING

0001 1 0002 1

12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12311-97201iEJDE..M100,110199809-200005

main12311-97401iK3VE..M101,111200005

main12311-97402iEJVE..M100,110200005

12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)

main12321-97202iEJ#..M110199809

main12321-97206iEJ#..M100199809

main12321-97401iK3VE..M101200005

main12321-97402iK3VE..M111200005

12327ASTAY, ENGINE MOUNTING, NO.2 RH

main12327-97201iEJDE..M100..4AT199809-199810

main12327-97202iEJ#..M110199809

main12327-97402iK3VE,EJVE..M10#..ATM200201

12362INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12305-97202iEJDE..M100,110..5F199809-200005

sub12305-97211

main12305-97203iEJDE..M100,110..4AT199809-200005

sub12305-97210

main12305-97401iK3VE..M101,111..4ATS,5F200005

main12305-97402iK3VE..M101,111..V200005-200112

main12305-97405iEJVE..M100,110..5F200005

main12305-97406iEJVE..M100,110..4AT200005

12371AINSULATOR, ENGINE MOUNTING, REAR

main12306-97205iEJDE..M110..4AT199809-200005

main12306-97210iK3VE,EJ#..M10#199809

sub12380-B2080

main12306-97213iEJDE..M110..5F199809-200005

main12306-97402iK3VE,EJVE..M11#200005

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12373-97202iEJDE..M110;EJDE..M100..5F199809-199810

main12373-97205iEJDE..M100..4AT199811-200005

main12373-97401iK3VE..M101,111200005

main12373-97402iEJVE..M100..4AT200005

5101

9004105233

main90041-05233

9004105238

main90041-05238

9004105239

main90041-05239

9004105245

main90041-05245

9004105246

main90041-05246

9004105248

main90041-05248

9004105260

main90041-05260

9004105263

main90041-05263

9004105277

main90041-05277

9004119948

main90041-19948

9004170341

main90041-70341

9004170354

main90041-70354

9004179257

main90041-79257

9004179280

main90041-79280

9151160828

main91511-60828

91511B0845

main91511-B0845

9151261060

main91512-61060

91512G1025

main91512-G1025

91621B0816

main91621-B0816

9165161030

main91651-61030

27 parts on this diagram · 2 diagrams in section
