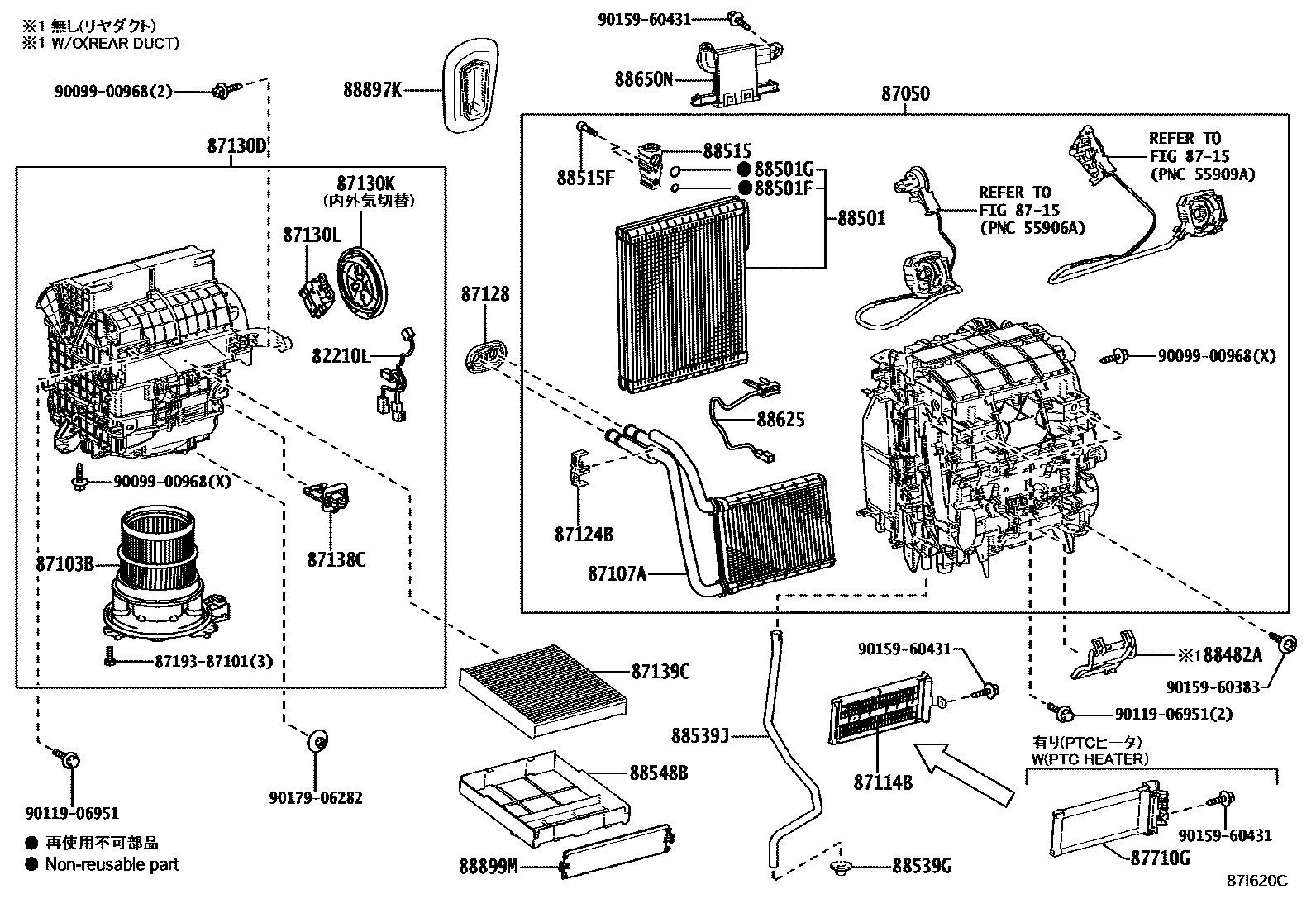

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1MANUAL AIR CONDITIONER 0002 1MANUAL AIR CONDITIONER 0003 1MANUAL AIR CONDITIONER 0004 1MANUAL AIR CONDITIONER 0005 1AUTO AIR CONDITIONER 0006 1AUTO AIR CONDITIONER 0007 1AUTO AIR CONDITIONER 0008 1AUTO AIR CONDITIONER 0009 1AUTO AIR CONDITIONER

82210LHARNESS ASSY, AIR CONDITIONER, NO.2

main82212-52100iKSP210..X202002-202105

87050RADIATOR ASSY, AIR CONDITIONER

main87050-52530iMXPH10,15202002-202012

main87050-52740iKSP210,MXPA1#..G,Z202012-202401

main87050-52760iMXPH10,15202012

main87050-K0410iKSP210,MXPA1#..X202002-202401

main87050-K0420iKSP210..X202002-202105

main87050-K0440iKSP210,MXPA1#..G,Z202002-202012

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-52170iMXPH10,15202012-202401

main87103-52270iKSP210,MXPA1#,MXPH1#..G,HBDG,HBDX,HBDZ,Z202201-202302

main87103-52290iKSP210,MXPA1#,MXPH1#..G,HBDG,HBDX,HBDZ,Z202302-202303

main87103-K0080iKSP210,MXPA1#,MXPH1#..G,HBDG,HBDX,HBDZ,Z202002-202012

main87103-K0090iKSP210,MXPA1#..X202002-202401

main87103-K0100iMXPA1#..X202002-202105

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-K0030iKSP210,MXPA1#202002-202401

87114BCOVER, HEATER

main87114-K0060iKSP210,MXPA1#202002-202401

87124BCLAMP, HEATER

main87124-33070iKSP210,MXPA1#202002-202401

87128GROMMET, HEATER

main87128-28010iKSP210,MXPA1#202002-202401

87130DBLOWER ASSY

main87130-52250iMXPH14,17;KSP210,MXPA1#..G,Z202012-202401

main87130-52310iKSP210,MXPA1#,MXPH1#..G,HBDG,HBDX,HBDZ,Z202201-202303

sub87130-52250

main87130-K0080iKSP210,MXPA1#..X202002-202401

main87130-K0090iKSP210..X202002-202010

sub87130-K0091

main87130-K0091iKSP210..X202011-202105

main87130-K0100iKSP210,MXPA1#,MXPH1#..G,HBDG,HBDX,HBDZ,Z202002-202012

87130KDAMPER SERVO SUB-ASSY, BLOWER, NO.1

main87106-52170iKSP210..X202002-202105

main87106-52180iKSP210,MXPA1#,MXPH1#..G,HBDG,HBDX,HBDZ,Z202002-202012

main87106-52200iKSP210,MXPA1#..G,Z202012-202401

87130LDAMPER SERVO SUB-ASSY, BLOWER, NO.2

main87106-K0070iKSP210,MXPA1#,MXPH1#..G,HBDG,HBDX,HBDZ,Z202002-202012

main87106-K0080iMXPA1#..X202002-202105

87138CRESISTOR, BLOWER

main87138-52030iKSP210..X202002-202401

main87138-K0020iMXPA1#..X202002-202105

87139CFILTER, CLEAN AIR

main87139-28020iKSP210,MXPA1#202002-202401

8715

87710GQUICK HEATER ASSY

88482ACOVER

main87114-K0070iMXPH10,15202002-202401

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-52160iMXPH10,15202002

main88501-K0070iKSP210,MXPA1#202002-202401

88501FO-RING, COOLER EVAPORATOR NO.1(DISCHARGE)

main90099-14120iKSP210,MXPA1#,MXPH14,17202002-202401

88501GO-RING, COOLER EVAPORATOR NO.1(SUCTION)

main90099-14121iKSP210,MXPA1#202002-202401

88515VALVE, COOLER EXPANSION

main88515-52130iKSP210,MXPA1#202002-202401

88515FBOLT(FOR COOLER EXPANSION VALVE)

main90099-04542iMXPH10,15202002-202401

88539GGROMMET (FOR COOLER UNIT DRAIN HOSE)

main88888-47010iKSP210,MXPA1#202002-202401

88539JHOSE, DRAIN COOLER

main88539-K0030iKSP210,MXPA1#202002-202401

88548BCASE, AIR FILTER

main88899-47090iKSP210,MXPA1#,MXPH1#..G,HBDG,HBDX,HBDZ,Z202002-202012

main88899-47090iKSP210..X202002-202105

88625THERMISTOR, COOLER, NO.1

main88620-28050iKSP210,MXPA1#202002-202401

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-52E50iKSP210..X202401

main88650-52E60iMXPA1#..X202401

main88650-52E90iMXPH10,15202012-202401

main88650-52F50iKSP210..G202401-202503

main88650-52F60iMXPH14,17;MXPA1#..G,Z202401-202503

main88650-K0010iKSP210..G202002-202012

main88650-K0011iKSP210..G202012-202401

main88650-K0030iKSP210..X202002-202401

main88650-K0040iMXPA1#..X202002-202401

main88650-K0110iMXPA1#,MXPH1#..G,HBDG,HBDX,HBDZ,Z202002-202011

sub88650-52E90

88897KGROMMET, (FOR COOLER PIPE)

main88899-K0020iKSP210,MXPA1#202002-202401

88899MPLATE, COVER(FOR AIR FILTER)

main88899-47120iKSP210,MXPA1#202002-202401

8719387101

main87193-87101

9009900968

main90099-00968

9011906951

main90119-06951

9015960383

main90159-60383

9015960431

main90159-60431

9017906282

main90179-06282

33 parts on this diagram · 9 diagrams in section
