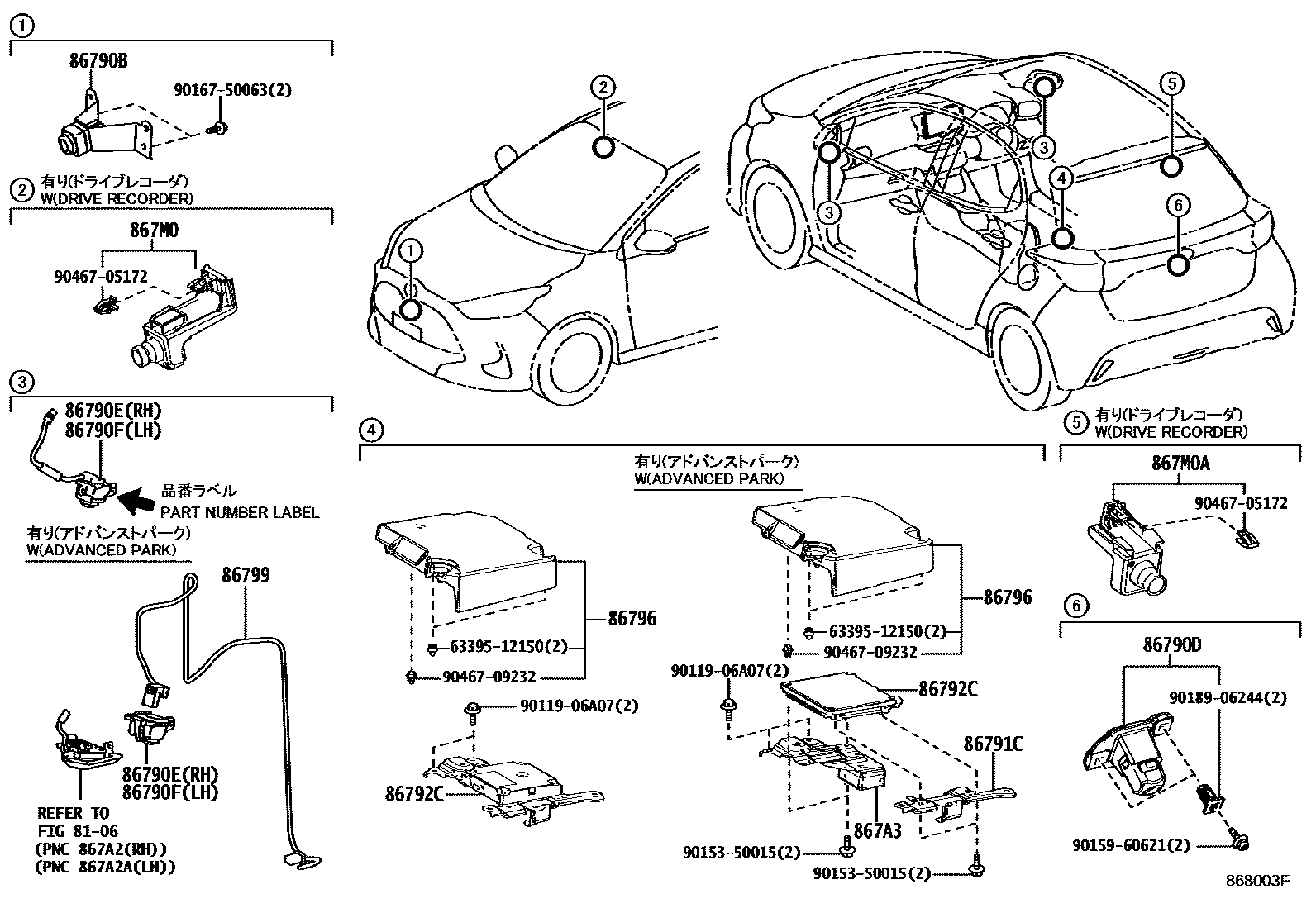

CAMERA & REAR MONITOR DISPLAY

0001 1 0002 1

8106

86790BCAMERA ASSY, TELEVISION, FR

86790DCAMERA ASSY, TELEVISION, RR

main867B0-52120iKSP210,MXPA1#,MXPH14,17..G,U,Z202401

main867B0-K0010iMXPH10,15..HBDG,HBDZ202002

main867B0-K0010iKSP210,MXPA1#..G,Z202105-202401

86790ECAMERA ASSY, TELEVISION, SIDE RH

86790FCAMERA ASSY, TELEVISION, SIDE LH

86791CBRACKET, COMPUTER PARKING ASSIST, NO.1

86792CCOMPUTER, PARKING ASSIST

86796COVER, COMPUTER PARKING ASSIST

main86796-K0010iMXPH14,17..U202401

86799WIRE, TELEVISION CAMERA

main86799-K0010

867A3CIRCUIT, LIGHT PARKING ASSIST

main867A3-K0010

867M0CAMERA ASSY, DRIVE RECORDER, FRONT

main867M0-0W010

main867M0-0W020

867M0ACAMERA ASSY, DRIVE RECORDER, REAR

6339512150CLIP, ROOF HEADLINING TRIM

main63395-12150

9011906A07

main90119-06A07

9015350015

main90153-50015

9015960621

main90159-60621

9016750063

main90167-50063

9018906244

main90189-06244

9046705172

main90467-05172

9046709232

main90467-09232

20 parts on this diagram · 2 diagrams in section
