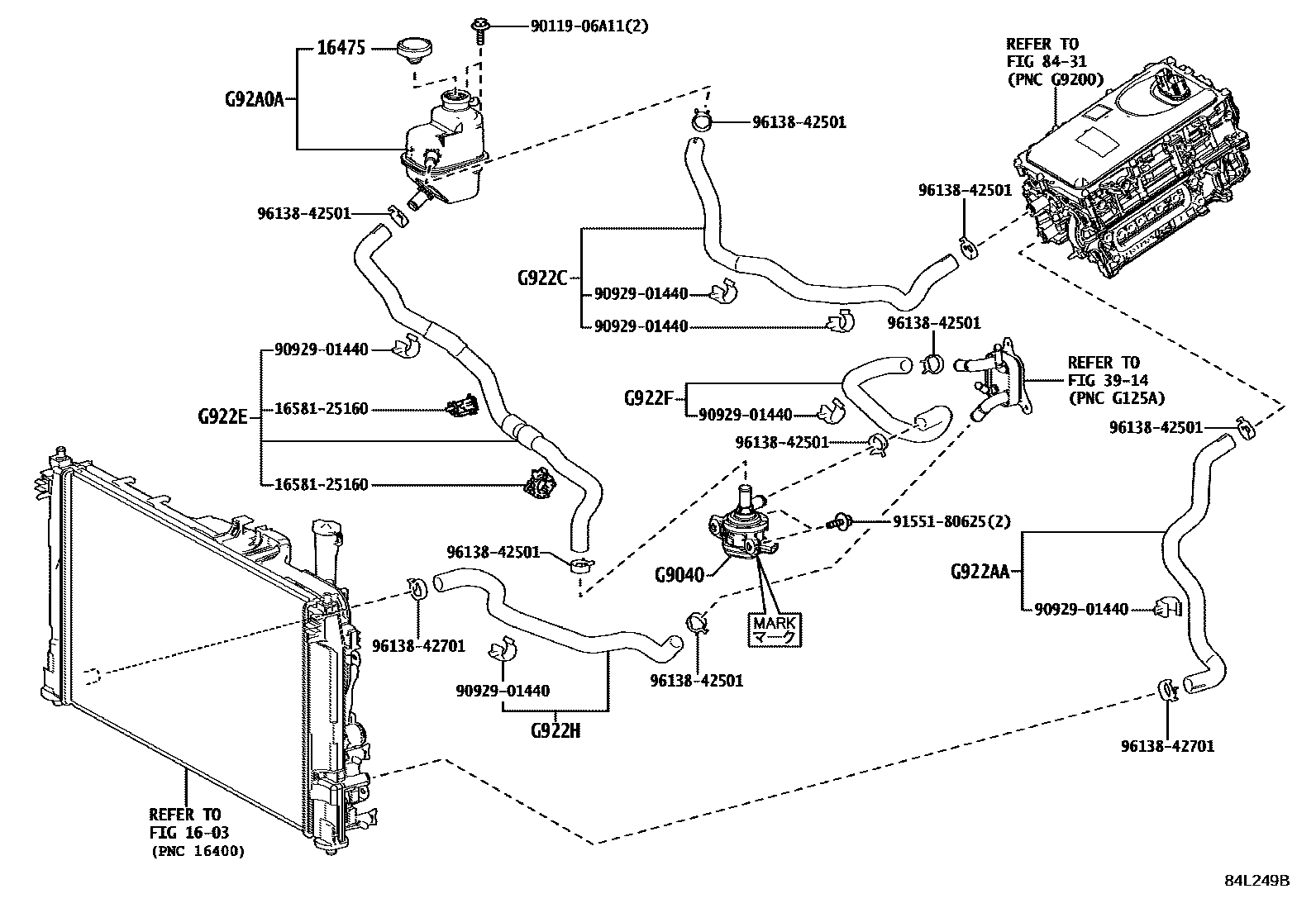

INVERTER COOLING

0001 1 0002 1

1603

16475CAP, RESERVE TANK

main16475-28140iM15AFXE..MXPH14,17202002

3914

8431

G9040INVERTER WATER PUMP ASSY(W/MOTOR)

mainG904052030iMXPH10,15202108

mainG9040K0010iMXPH10,15202002-202108

subG9040-52030

G922AAHOSE, INVERTER COOLING INLET, NO.1

mainG922A52010iMXPH14,17202002

G922CHOSE, INVERTER COOLING OUTLET, NO.1

mainG922C52010iMXPH14,17202002

G922EHOSE, HYBRID WATER PUMP INLET

mainG922E52030iMXPH10,15202002

G922FHOSE, HYBRID WATER PUMP OUTLET, NO.1

mainG922F52040iMXPH10,15202002

G922HHOSE, HYBRID RADIATOR INLET

mainG922H52010iMXPH10,15202002

mainG922H52020iMXPH14,17202401

G92A0ATANK ASSY, INVERTER RESERVE

mainG91H052010iMXPH10,15202002

1658125160CLAMP, HOSE(FOR WATER HOSE)

main16581-25160

9011906A11

main90119-06A11

9092901440

main90929-01440

9155180625

main91551-80625

9613842501

main96138-42501

9613842701

main96138-42701

17 parts on this diagram · 2 diagrams in section
