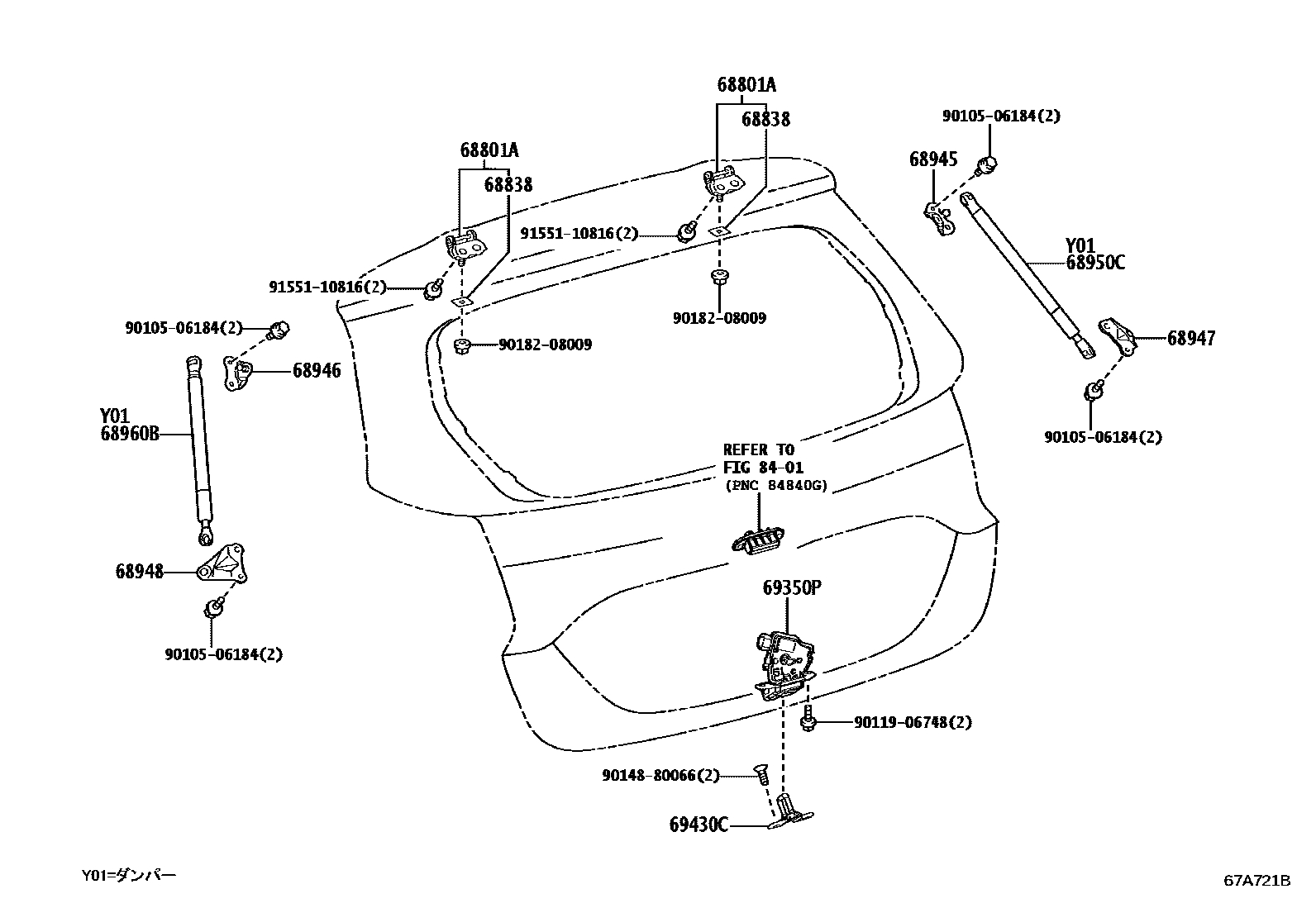

BACK DOOR LOCK & HANDLE

68801AHINGE SUB-ASSY, BACK DOOR, UPPER

main68801-K0010×2iKSP210,MXPA1#202002-202401

68838PAD, BACK DOOR HINGE, NO.1

main68838-K0010×2iKSP210,MXPA1#,MXPH14,17202401

main68838-K0020×2iKSP210,MXPA1#202002-202401

main68838-K0030×2iKSP210,MXPA1#202002-202401

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-K0010iKSP210,MXPA1#,MXPH14,17202401

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68946-K0050iKSP210,MXPA1#202002-202401

68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH

main68947-K0010iKSP210,MXPA1#202002-202401

68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH

main68948-K0010iMXPH10,15202002

68950CSTAY ASSY, BACK DOOR, RH

main68950-K0120iMXPH10,15..HBDG,HBDX202002

main68950-K0130supersedes 68950-K0120iMXPA1#..Z202002-202401

main68950-K0040iKSP210,MXPA1#,MXPH1#202002-202208

68960BSTAY ASSY, BACK DOOR, LH

main68960-K0120iKSP210,MXPA1#..G,X202002-202401

main68960-K0130supersedes 68960-K0120iMXPA1#..Z202002-202401

main68960-K0040iKSP210,MXPA1#,MXPH1#202002-202208

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-52391iKSP210,MXPA1#202002-202401

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-52050iKSP210,MXPA1#202002-202401

8401

9010506184

main90105-06184

9011906748

main90119-06748

9014880066

main90148-80066

9018208009

main90182-08009

9155110816

main91551-10816

16 parts on this diagram · 1 diagram in section
