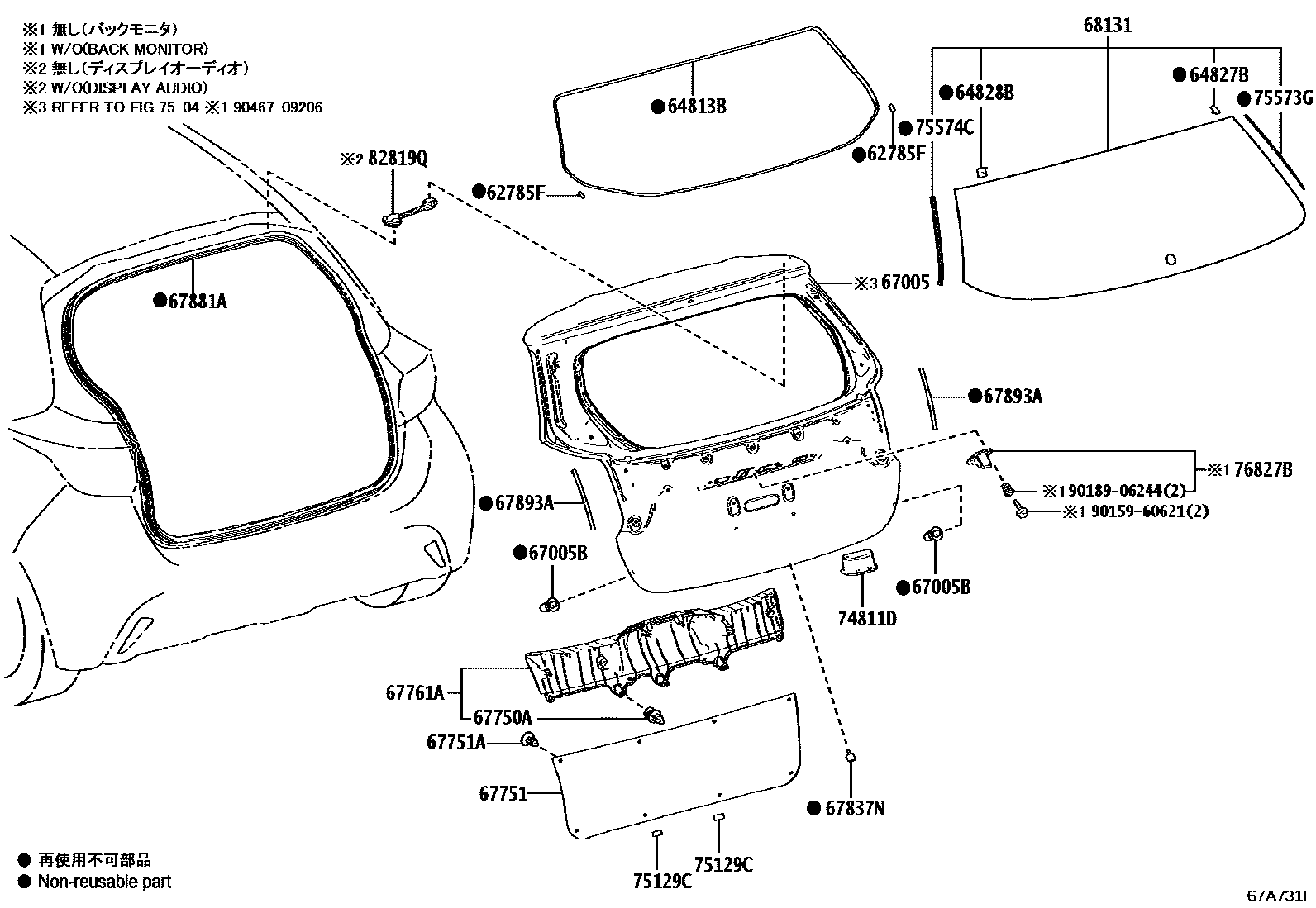

BACK DOOR PANEL & GLASS

62785FSPACER, BACK DOOR GLASS

main62785-12050×2iKSP210,MXPA1#202002-202401

64813BDAM, BACK WINDOW GLASS ADHESIVE

main56117-50140iKSP210,MXPA1#202002-202401

64827BCLIP, BACK WINDOW GLASS, RH

main64827-K0010iKSP210,MXPA1#202002-202401

64828BCLIP, BACK WINDOW GLASS, LH

main64828-K0010iKSP210,MXPA1#,MXPH14,17202401

67005PANEL SUB-ASSY, BACK DOOR

main67005-52J11iKSP210,MXPA1#..G,X202009-202401

main67005-52J20supersedes 67005-52J10iKSP210,MXPA1#,MXPH1#..G,HBDG,HBDX,X202002-202009

sub90950-06105

main67005-52J21supersedes 67005-52J11iKSP210,MXPA1#,MXPH14,17..G,U,X202401

67005BCUSHION(FOR BACK DOOR PANEL)

main90541-09142×2iKSP210,MXPA1#,MXPH14,17202401

67750ACLIP(FOR BACK DOOR TRIM)

main90467-10161×8iKSP210,MXPA1#202002-202401

67751BOARD, BACK DOOR TRIM

main67751-K0010-B0iMXPH10,15..HBDZ202002

DARK GRAY,TRIM2#,4#

67751ACLIP(FOR BACK DOOR TRIM BOARD)

main90467-08186-C3×8iMXPA1#..Z202002-202401

BLACK,TRIM1#,2#,4#

67761ACOVER, BACK DOOR TRIM

main67761-K0010-C0iKSP210,MXPA1#,MXPH14,17..U,X,Z202401

BLACK,TRIM2#

67837NSEAL, BACK DOOR DUST PROOF

main67837-K0040×3iKSP210,MXPA1#202002-202401

67881AWEATHERSTRIP, BACK DOOR

main67881-K0030iKSP210,MXPA1#,MXPH14,17202401

67893APROTECTOR, BACK DOOR PANEL, NO.1

main67893-52110×2iMXPH10,15202002

68131GLASS, BACK DOOR

main68105-K0191iMXPA1#,MXPH14,17..Z202401-202502

main68105-52B70supersedes 68105-K0010iKSP210,MXPA1#202208-202401

main68105-52B71iKSP210,MXPA1#,MXPH14,17..X202501-202502

main68105-K0011iKSP210,MXPA1#,MXPH14,17..X202401-202502

main68105-K0030iMXPA10..X202002-202401

main68105-K0031iMXPA10..6F..X202404

74811DHANDLE, DOOR PULL

main74811-13010-C2iKSP210,MXPA1#,MXPH14,17..U,X,Z202401

BLACK,TRIM2#

75129CCUSHION, REAR LICENCE PLATE

main75129-30010×2iKSP210,MXPA1#202002-202401

75573GMOULDING, BACK WINDOW, OUTSIDE RH NO.1

main75573-K0010iKSP210,MXPA1#202002-202401

75574CMOULDING, BACK WINDOW, OUTSIDE LH NO.1

main75574-K0010iKSP210,MXPA1#202002-202401

76827BRETAINER, BACK DOOR GARNISH, NO.2

main76827-K0010iKSP210,MXPA1#..G,Z202002-202105

82819QGROMMET, WIRING HARNESS

main82819-K0060iMXPA1#,MXPH14,17..Z202401-202503

9015960621

main90159-60621

9018906244

main90189-06244

22 parts on this diagram · 1 diagram in section
