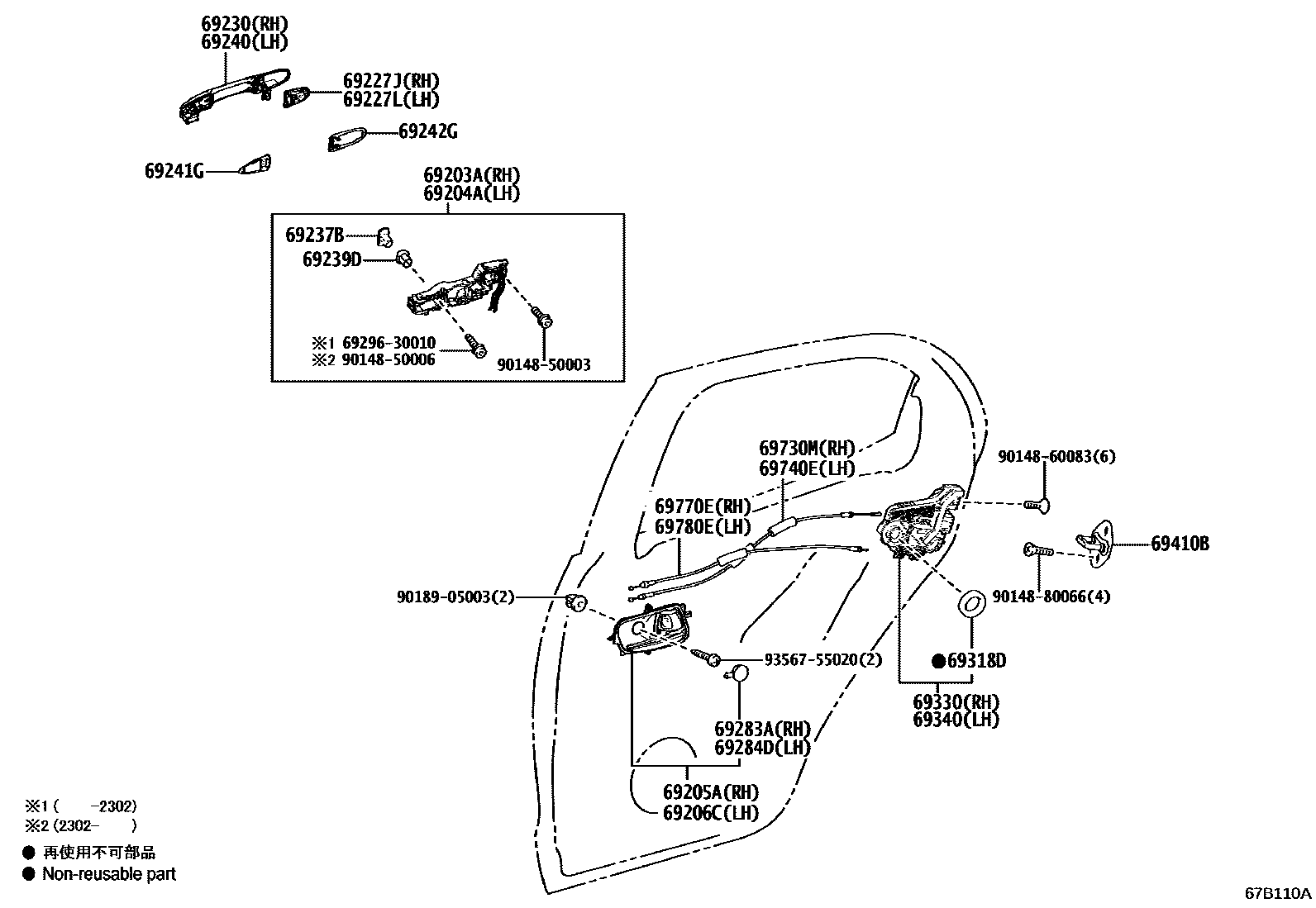

REAR DOOR LOCK & HANDLE
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
BLACK,TRIM2#,4#
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
BLACK,TRIM2#,4#
69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH
69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
SUPER WHITE 2,040
WHITE PEARL CS.,070
PLATINUM WHITE PEARL MC.,089
SILVER ME.,1F7
BLACK,202 ,2KC
RED MC.,2NE ,3T3
BORDEAUX M.M,3R9
ICE PINK ME.,2SS ,3U6
CORAL CS.,2SR ,3U7
AVANT-GARDE BRONZE ME.,2SQ ,4V8
THERMO-TECT LIME GREEN,6W7
DK.BLUE M.M.,8W7
CYAN METALLIC,2RV ,8W9
SILVER ME.,1L0
MASSIVE GRAY,1L6 ,M22
69237BNUT, REAR DOOR HANDLE
69239DBUSH, REAR DOOR HANDLE
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
SUPER WHITE 2,040
WHITE PEARL CS.,070
PLATINUM WHITE PEARL MC.,089 ,2VP
SILVER ME.,1F7
BLACK,202 ,2VP ,M22
RED MC.,2NE ,3T3
BORDEAUX M.M,3R9
ICE PINK ME.,2SS ,3U6
CORAL CS.,2SR ,3U7
AVANT-GARDE BRONZE ME.,2SQ ,4V8
THERMO-TECT LIME GREEN,6W7
DK.BLUE M.M.,8W7
CYAN METALLIC,2RV ,8W9
SILVER ME.,1L0
MASSIVE GRAY,1L6 ,M22
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
69283APLUG, REAR DOOR INSIDE HANDLE BEZEL, RH
BLACK,TRIM2#,4#
69284DPLUG, REAR DOOR INSIDE HANDLE BEZEL, LH
BLACK,TRIM2#,4#
69318DSEAL, DOOR LOCK WIRING HARNESS
69330LOCK ASSY, REAR DOOR, RH
69340LOCK ASSY, REAR DOOR, LH
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69730MCABLE, REAR DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)
69740ECABLE, REAR DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)
69770ECABLE, REAR DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)
69780ECABLE, REAR DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)
6929630010SCREW, DOOR INSIDE HANDLE
main69296-30010
9014850003
main90148-50003
9014850006
main90148-50006
9014860083
main90148-60083
9014880066
main90148-80066
9018905003
main90189-05003
9356755020
main93567-55020
29 parts on this diagram · 1 diagram in section
