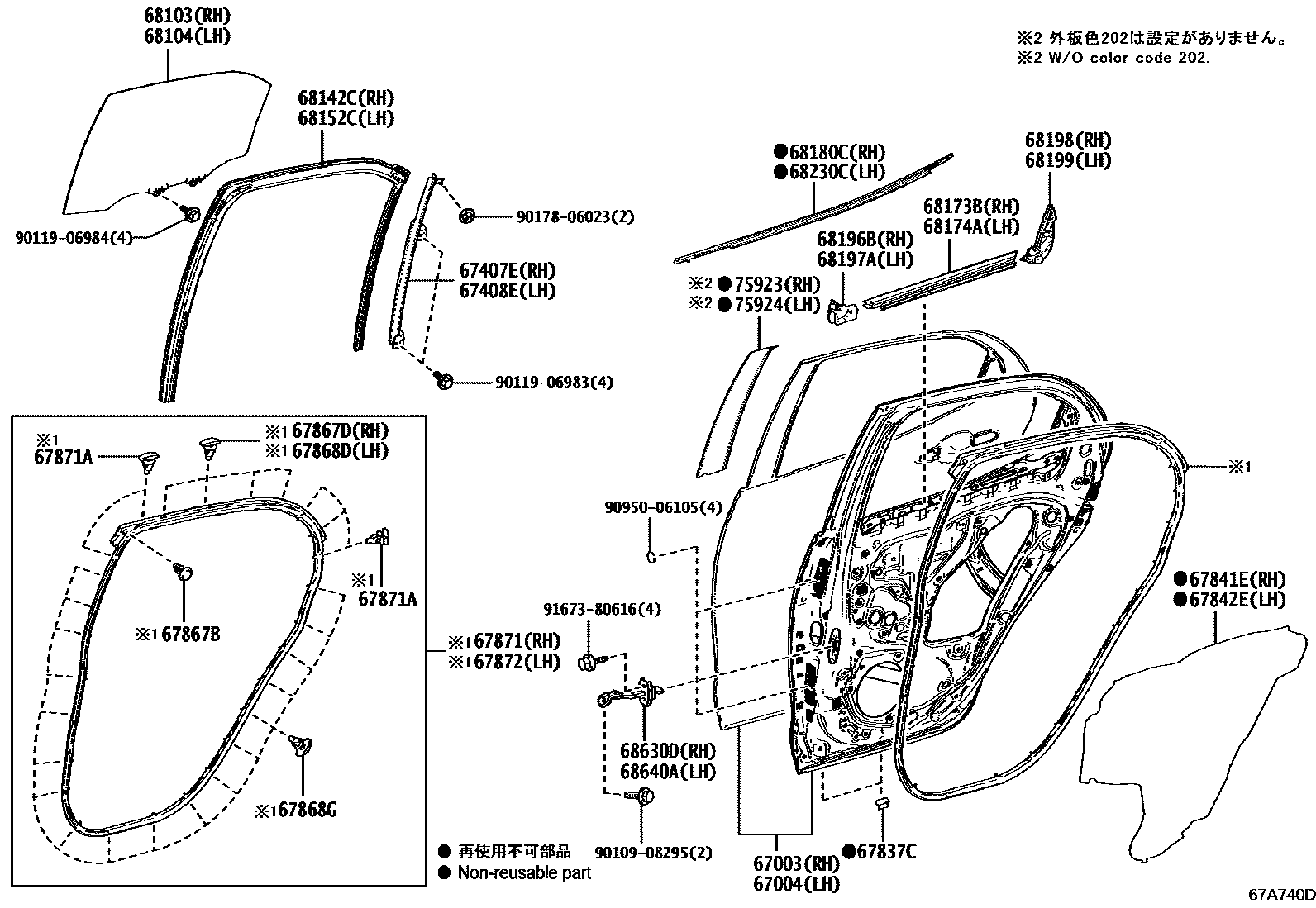

REAR DOOR PANEL & GLASS

0001 1������� 0002 1������

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-K0090iMXPH10,15202002-202401

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-K0090iKSP210,MXPA1#202002-202401

67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67407-K0010iKSP210,MXPA1#,MXPH14,17202002-202401

67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67408-K0010iKSP210,MXPA1#202002-202401

67837CSEAL, REAR DOOR DUST PROOF

main67837-47060iKSP210,MXPA1#,MXPH10,15202007

main67837-48050iKSP210,MXPA1#,MXPH1#202002-202006

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-K0010iKSP210,MXPA1#,MXPH1#..G,HBDG,HBDZ,Z202002-202302

sub67841-K0011

main67841-K0011iKSP210,MXPA1#..G,Z202303-202401

main67841-K0011iKSP210,MXPA1#,MXPH14,17..G,Z202401

main67841-K0020iKSP210,MXPA1#,MXPH1#..HBDX,X202002-202302

sub67841-K0021

main67841-K0021iMXPH10,15..HBDX202303-202401

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67841-K0010iKSP210,MXPA1#,MXPH1#..G,HBDG,HBDZ,Z202002-202302

sub67841-K0011

main67841-K0011iMXPH10,15..HBDG,HBDZ202303-202401

main67841-K0020iKSP210,MXPA1#,MXPH1#..HBDX,X202002-202302

sub67841-K0021

main67841-K0021iKSP210,MXPA1#,MXPH14,17..U,X202303-202401

67867BCLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)

main90467-06084iKSP210,MXPA1#202002-202401

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-52040iKSP210,MXPA1#202002-202401

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67867-52010iKSP210,MXPA1#202002-202401

67868GRETAINER, DOOR WEATHERSTRIP

main67867-12150iKSP210,MXPA1#202002-202401

67871WEATHERSTRIP, REAR DOOR, RH

main67871-K0010iKSP210,MXPA1#202002-202401

67871ARETAINER(FOR REAR DOOR WEATHERSTRIP)

main67867-30080iKSP210,MXPA1#202002-202401

67872WEATHERSTRIP, REAR DOOR, LH

main67872-K0010iKSP210,MXPA1#202002-202401

68103GLASS SUB-ASSY, REAR DOOR, RH

main68103-K0040iKSP210,MXPA1#202002-202401

68104GLASS SUB-ASSY, REAR DOOR, LH

main68104-K0040iKSP210,MXPA1#,MXPH14,17202002-202401

68142CRUN, REAR DOOR GLASS, RH

main68142-K0010iMXPH10,15202002-202401

68152CRUN, REAR DOOR GLASS, LH

main68152-K0010iKSP210,MXPA1#202002-202401

68173BWEATHERSTRIP, REAR DOOR GLASS, INNER RH

main68173-K0010iKSP210,MXPA1#202002-202401

68174AWEATHERSTRIP, REAR DOOR GLASS, INNER LH

main68174-K0010iKSP210,MXPA1#202002-202401

68180CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER RH

main68180-52220iKSP210,MXPA1#,MXPH14,17..G,U,X202002-202401

main68180-K0020iMXPA1#,MXPH1#..HBDZ,Z202002-202302

sub68180-K0021

main68180-K0021iMXPH10,15..HBDZ202303-202401

68196BSEAL, REAR DOOR BELT, FRONT RH

main68196-K0010iKSP210,MXPA1#202002-202401

68197ASEAL, REAR DOOR BELT, FRONT LH

main68197-K0010iKSP210,MXPA1#202002-202401

68198SEAL, REAR DOOR BELT, REAR RH

main68198-K0010iMXPH10,15202002-202401

68199SEAL, REAR DOOR BELT, REAR LH

main68199-K0010iKSP210,MXPA1#,MXPH14,17202002-202401

68230CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER LH

main68230-52220iMXPH10,15..HBDG,HBDX202002-202401

main68230-K0020iMXPA1#,MXPH1#..HBDZ,Z202002-202302

sub68230-K0021

main68230-K0021iMXPA1#..Z202303-202401

68630DCHECK ASSY, REAR DOOR, RH

main68630-K0010iKSP210,MXPA1#,MXPH1#202002-202209

sub68630-K0011

main68630-K0011iMXPH10,15202209-202401

68640ACHECK ASSY, REAR DOOR, LH

main68630-K0010iKSP210,MXPA1#,MXPH1#202002-202209

sub68630-K0011

main68630-K0011iKSP210,MXPA1#202209-202401

75923TAPE, BLACK OUT, NO.2 RH

main75923-K0010iKSP210,MXPA1#202002-202401

75924TAPE, BLACK OUT, NO.2 LH

main75924-K0010iKSP210,MXPA1#202002-202401

9010908295

main90109-08295

9011906983

main90119-06983

9011906984

main90119-06984

9017806023

main90178-06023

9095006105

main90950-06105

9167380616

main91673-80616

36 parts on this diagram · 2 diagrams in section
