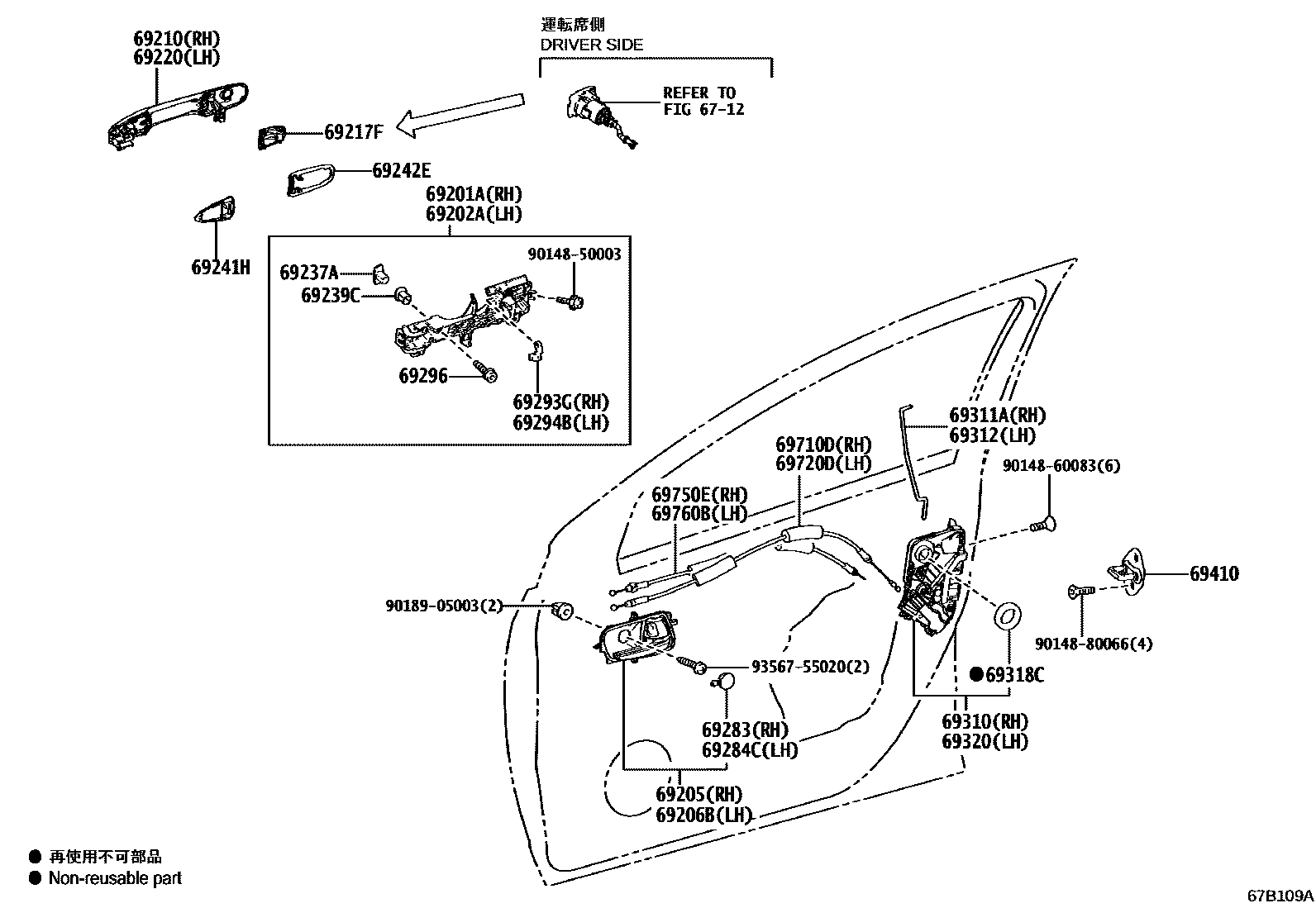

FRONT DOOR LOCK & HANDLE

6712

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

main69201-47070iKSP210,MXPA1#¥4,210202002-202401

69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH

main69202-47040iKSP210,MXPA1#¥4,210202002-202401

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-K0040-C0iMXPA1#..G202002-202401

BLACK,TRIM2#,4#

main69205-K0040-C0iKSP210;MXPA1#..X202002-202401

BLACK,TRIM1#,2#

main69205-K0040-C0iKSP210;MXPA1#..X202002-202401

BLACK,TRIM1#,2#,4#

main69205-K0040-C0iKSP210,MXPA1#,MXPH14,17..G202401

BLACK,TRIM2#

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-K0040-C0iMXPH10,15..HBDX202002-202401

BLACK,TRIM2#,4#

main69206-K0040-C0iMXPA1#..Z202002-202401

BLACK,TRIM1#,2#

main69206-K0040-C0iMXPA1#..Z202002-202401

BLACK,TRIM1#,2#,4#

main69206-K0040-C0iKSP210,MXPA1#,MXPH14,17..G202401

BLACK,TRIM2#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-K0010-A0iMXPA15,MXPH17;KSP210,MXPA10,MXPH14..G,U,Z202002-202401

SUPER WHITE 2,040

main69210-K0010-A0iMXPA10..6F..X202002-202401

main69210-K0010-A0iMXPH10..HBDX202002

main69210-K0010-A1iMXPA15,MXPH15;KSP210,MXPA10,MXPH10..G,HBDG,HBDZ,Z202002-202208

WHITE PEARL CS.,070

main69210-K0010-A1iMXPA15,MXPH15;KSP210,MXPA10,MXPH10..G,HBDG,HBDZ,Z202002-202208

main69210-K0010-A1iMXPA15,MXPH15;KSP210,MXPA10,MXPH10..G,HBDG,HBDZ,Z202002-202208

main69210-K0010-A3iMXPH10..HBDX202208-202401

PLATINUM WHITE PEARL MC.,089

main69210-K0010-A3iMXPH15;MXPH10..HBDG,HBDZ202208-202401

main69210-K0010-A3iMXPA15;KSP210,MXPA10..G,Z202208-202401

main69210-K0010-A3iMXPA10..6F..X202401

PLATINUM WHITE PEARL MC.,089 ,2VP

main69210-K0010-B0iMXPA15,MXPH15;KSP210,MXPA10,MXPH10..G,HBDG,HBDZ,Z202002-202208

main69210-K0010-B0iMXPA15,MXPH15;KSP210,MXPA10,MXPH10..G,HBDG,HBDZ,Z202002-202208

SILVER ME.,1F7

main69210-K0010-B0iMXPA15,MXPH15;KSP210,MXPA10,MXPH10..G,HBDG,HBDZ,Z202002-202208

main69210-K0010-B3iMXPA10..6F..X202208-202401

SILVER ME.,1L0

main69210-K0010-B3iMXPA15,MXPH17;KSP210,MXPA10,MXPH14..G,U,Z202208-202401

main69210-K0010-B3iMXPH10..HBDX202208-202401

main69210-K0010-B6iMXPA15,MXPH17;KSP210,MXPA10,MXPH14..G,U,Z202401

MASSIVE GRAY,1L6 ,M22

main69210-K0010-B6iMXPA15,MXPH17;KSP210,MXPA10,MXPH14..G,U,Z202401

main69210-K0010-C0iMXPA10..6F..X202002-202401

BLACK,202 ,2KC

main69210-K0010-C0iMXPA1#,MXPH14,17..Z202401

main69210-K0010-C0iMXPA15,MXPH17..G,U,X;KSP210,MXPA10,MXPH14..G,U202401

BLACK,202 ,2VP ,M22

main69210-K0010-C0iMXPA15,MXPH17..G,U,X;KSP210,MXPA10,MXPH14..G,U202401

BLACK,202

main69210-K0010-C0iMXPA10..6F..X202002-202401

main69210-K0010-C0iMXPH15;MXPH10..HBDG,HBDZ202002

main69210-K0010-D0iMXPH10..HBDX202002-202105

main69210-K0010-D0iMXPH10..HBDX202002-202105

BORDEAUX M.M,3R9

main69210-K0010-D0iMXPH10..HBDX202002-202105

main69210-K0010-D1iMXPA10..6F..X202002-202401

RED MC.,2NE ,3T3

main69210-K0010-D1iMXPA10..6F..X202401

main69210-K0010-D1iMXPA10..6F..X202401

RED MC.,3T3

main69210-K0010-D1iMXPA10..6F..X202002-202401

main69210-K0010-D1iMXPH15;MXPH10..HBDG,HBDZ202002

main69210-K0010-D2iMXPA10..6F..X202002-202401

main69210-K0010-D2iMXPA10..6F..X202002-202401

ICE PINK ME.,2SS ,3U6

main69210-K0010-D2iMXPH10..HBDX202002

main69210-K0010-D3iMXPA10..6F..X202002-202401

main69210-K0010-D3iMXPA10..6F..X202002-202401

CORAL CS.,2SR ,3U7

main69210-K0010-D3iMXPH10..HBDX202002

main69210-K0010-E0iMXPA10..6F..X202002-202401

AVANT-GARDE BRONZE ME.,2SQ ,4V8

main69210-K0010-E0iMXPA15,MXPH17;KSP210,MXPA10,MXPH14..G,U,Z202002-202401

main69210-K0010-E0iMXPH10..HBDX202002

main69210-K0010-G0iKSP210,MXPA10..X202002-202208

main69210-K0010-G0iKSP210,MXPA10..X202002-202208

main69210-K0010-G0iMXPH10..HBDX202002-202208

THERMO-TECT LIME GREEN,6W7

main69210-K0010-J0iMXPA15;KSP210,MXPA10..G,Z202002-202401

main69210-K0010-J0iMXPA15;KSP210,MXPA10..G,Z202002-202401

DK.BLUE M.M.,8W7

main69210-K0010-J0iMXPH15;MXPH10..HBDG,HBDZ202002

main69210-K0010-J1iMXPA10..6F..X202002-202401

CYAN METALLIC,2RV ,8W9

main69210-K0010-J1iMXPA15;KSP210,MXPA10..G,Z202002-202401

main69210-K0010-J1iMXPH10..HBDX202002

main69211-33120-A0iKSP210,MXPA10,MXPH14..CVT..X202002-202503

SUPER WHITE 2,040

main69211-33120-A1iKSP210,MXPA10,MXPH14..CVT..X202208-202503

PLATINUM WHITE PEARL MC.,089

main69211-33120-A3iKSP210,MXPA10,MXPH10..HBDX,X202002-202208

WHITE PEARL CS.,070

main69211-33120-B0iKSP210,MXPA10,MXPH10..HBDX,X202002-202208

SILVER ME.,1F7

main69211-33120-B7iMXPH10..HBDX202208-202503

SILVER ME.,1L0

main69211-33120-C3iMXPA10..6F..X202401-202503

BLACK,202

main69211-33120-C3iMXPH10..HBDX202002-202401

BLACK,202 ,2KC

main69211-33120-D3iMXPA10..6F..X202401-202503

RED MC.,3T3

main69211-33120-D3iMXPH10..HBDX202002-202401

RED MC.,2NE ,3T3

main69211-33120-D5iKSP210,MXPA10,MXPH10..HBDX,X202002-202105

BORDEAUX M.M,3R9

main69211-33120-D6iMXPH10..HBDX202002-202401

ICE PINK ME.,2SS ,3U6

main69211-33120-D7iKSP210,MXPA10..X202002-202503

CORAL CS.,2SR ,3U7

main69211-33120-E5iKSP210,MXPA10..X202002-202503

AVANT-GARDE BRONZE ME.,2SQ ,4V8

main69211-33120-G3iKSP210,MXPA10,MXPH10..HBDX,X202002-202208

THERMO-TECT LIME GREEN,6W7

main69211-33120-J1iMXPH10..HBDX202002-202401

DK.BLUE M.M.,8W7

main69211-33120-J4iMXPH10..HBDX202002-202401

CYAN METALLIC,2RV ,8W9

main69211-33120-P1iKSP210,MXPA10,MXPH14..CVT..X202401-202503

MASSIVE GRAY,1L6 ,M22

69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH

main69217-47020iKSP210,MXPA1#¥450202002-202401

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69210-K0020-A0iMXPA10..6F..X202002-202401

main69210-K0020-A0iMXPA10..6F..X202002-202401

SUPER WHITE 2,040

main69210-K0020-A0iMXPH10..HBDX202002

main69210-K0020-A1iMXPA15,MXPH15;KSP210,MXPA10,MXPH10..G,HBDG,HBDZ,Z202002-202208

main69210-K0020-A1iKSP210,MXPA10..X202002-202208

WHITE PEARL CS.,070

main69210-K0020-A1iKSP210,MXPA10..X202002-202208

main69210-K0020-A3iMXPA10..6F..X202208-202401

PLATINUM WHITE PEARL MC.,089

main69210-K0020-A3iMXPA10..6F..X202401

PLATINUM WHITE PEARL MC.,089 ,2VP

main69210-K0020-A3iMXPA15,MXPH17..G,U,X;KSP210,MXPA10,MXPH14..G,U202208-202401

main69210-K0020-A3iMXPA15;KSP210,MXPA10..G,Z202208-202401

main69210-K0020-B0iMXPH10..HBDX202002-202208

SILVER ME.,1F7

main69210-K0020-B0iMXPH10..HBDX202002-202208

main69210-K0020-B0iMXPH10..HBDX202002-202208

main69210-K0020-B3iMXPA10..6F..X202208-202401

main69210-K0020-B3iKSP210,MXPA10..CVT..X202208-202401

SILVER ME.,1L0

main69210-K0020-B3iKSP210,MXPA10..CVT..X202208-202401

main69210-K0020-B6iMXPA15,MXPH17;KSP210,MXPA10,MXPH14..G,U,Z202401

MASSIVE GRAY,1L6 ,M22

main69210-K0020-B6iMXPA10..6F..X202401

main69210-K0020-C0iMXPA10..6F..X202002-202401

main69210-K0020-C0iMXPA1#,MXPH14,17..Z202401

BLACK,202

main69210-K0020-C0iMXPA1#,MXPH14,17..Z202401

main69210-K0020-C0iMXPA15,MXPH17..G,U,X;KSP210,MXPA10,MXPH14..G,U202401

BLACK,202 ,2VP ,M22

main69210-K0020-C0iMXPA10..6F..X202002-202401

BLACK,202 ,2KC

main69210-K0020-C0iMXPH15;MXPH10..HBDG,HBDZ202002

main69210-K0020-D0iMXPH10..HBDX202002-202105

main69210-K0020-D0iMXPH10..HBDX202002-202105

main69210-K0020-D0iKSP210,MXPA10..X202002-202105

BORDEAUX M.M,3R9

main69210-K0020-D1iMXPA10..6F..X202002-202401

main69210-K0020-D1iMXPA10..6F..X202401

main69210-K0020-D1iMXPA10..6F..X202401

RED MC.,3T3

main69210-K0020-D1iMXPH15;MXPH10..HBDG,HBDZ202002-202401

RED MC.,2NE ,3T3

main69210-K0020-D1iMXPH15;MXPH10..HBDG,HBDZ202002

main69210-K0020-D2iMXPA15;KSP210,MXPA10..G,Z202002-202401

main69210-K0020-D2iMXPA15;KSP210,MXPA10..G,Z202002-202401

ICE PINK ME.,2SS ,3U6

main69210-K0020-D2iMXPH10..HBDX202002

main69210-K0020-D3iMXPH10..HBDX202002

main69210-K0020-D3iMXPH10..HBDX202002-202401

CORAL CS.,2SR ,3U7

main69210-K0020-D3iMXPA15,MXPH17;KSP210,MXPA10,MXPH14..G,U,Z202002-202401

main69210-K0020-E0iMXPH15;MXPH10..HBDG,HBDZ202002

main69210-K0020-E0iMXPA10..6F..X202002-202401

main69210-K0020-E0iMXPA10..6F..X202002-202401

AVANT-GARDE BRONZE ME.,2SQ ,4V8

main69210-K0020-G0iMXPA15,MXPH15;KSP210,MXPA10,MXPH10..G,HBDG,HBDZ,Z202002-202208

main69210-K0020-G0iMXPA15,MXPH15;KSP210,MXPA10,MXPH10..G,HBDG,HBDZ,Z202002-202208

THERMO-TECT LIME GREEN,6W7

main69210-K0020-G0iMXPA15,MXPH15;KSP210,MXPA10,MXPH10..G,HBDG,HBDZ,Z202002-202208

main69210-K0020-J0iMXPA15;KSP210,MXPA10..G,Z202002-202401

DK.BLUE M.M.,8W7

main69210-K0020-J0iMXPH15;MXPH10..HBDG,HBDZ202002

main69210-K0020-J0iMXPA10..6F..X202002-202401

main69210-K0020-J1iMXPA10..6F..X202002-202401

CYAN METALLIC,2RV ,8W9

main69210-K0020-J1iMXPA15;KSP210,MXPA10..G,Z202002-202401

main69210-K0020-J1iMXPH10..HBDX202002

main69211-47021-A0iMXPA10..6F..X202002-202503

SUPER WHITE 2,040

main69211-47021-A1iKSP210,MXPA10,MXPH10..HBDX,X202002-202208

WHITE PEARL CS.,070

main69211-47021-A2iKSP210,MXPA10..X202208-202503

PLATINUM WHITE PEARL MC.,089

main69211-47021-B0iKSP210,MXPA10,MXPH10..HBDX,X202002-202208

SILVER ME.,1F7

main69211-47021-C3iKSP210,MXPA10..X202002-202401

BLACK,202 ,2KC

main69211-47021-C3iKSP210,MXPA10,MXPH14..CVT..X202401-202503

BLACK,202

main69211-47021-D1iKSP210,MXPA10..X202002-202401

RED MC.,2NE ,3T3

main69211-47021-D1iKSP210,MXPA10,MXPH14..CVT..X202401-202503

RED MC.,3T3

main69211-47021-D4iKSP210,MXPA10,MXPH10..HBDX,X202002-202105

BORDEAUX M.M,3R9

main69211-47021-D7iKSP210,MXPA10..X202002-202401

ICE PINK ME.,2SS ,3U6

main69211-47021-D8iMXPH10..HBDX202002-202503

CORAL CS.,2SR ,3U7

main69211-47021-E7iKSP210,MXPA10..X202002-202503

AVANT-GARDE BRONZE ME.,2SQ ,4V8

main69211-47021-G0iKSP210,MXPA10,MXPH10..HBDX,X202002-202208

THERMO-TECT LIME GREEN,6W7

main69211-47021-J0iKSP210,MXPA10..X202002-202401

DK.BLUE M.M.,8W7

main69211-47021-J6iKSP210,MXPA10..X202002-202401

CYAN METALLIC,2RV ,8W9

main69211-47021-P0iMXPH10..HBDX202208-202503

SILVER ME.,1L0

main69211-47021-P6iKSP210,MXPA10,MXPH14..CVT..X202401-202503

MASSIVE GRAY,1L6 ,M22

69237ANUT, FRONT DOOR HANDLE

main69237-62010iKSP210,MXPA1#¥160202002-202401

69239CBUSH, FRONT DOOR HANDLE

main69239-47010iKSP210,MXPA1#¥90202002-202401

69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT

main69241-47020iKSP210,MXPA1#¥400202002-202401

69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR

main69242-47030iKSP210,MXPA1#¥400202002-202401

69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH

main69283-52010-C1iKSP210;MXPA1#..X202002-202401

BLACK,TRIM1#,2#,4#

main69283-52010-C1iMXPA1#..Z202002-202401

BLACK,TRIM1#,2#

main69283-52010-C1iMXPA1#..Z202002-202401

BLACK,TRIM2#,4#

main69283-52010-C1iKSP210,MXPA1#,MXPH14,17..G202401

BLACK,TRIM2#

69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH

main69283-52010-C1iMXPH10,15..HBDX202002-202401

BLACK,TRIM1#,2#

main69283-52010-C1iMXPA1#..Z202002-202401

BLACK,TRIM1#,2#,4#

main69283-52010-C1iMXPA1#..Z202002-202401

BLACK,TRIM2#,4#

main69283-52010-C1iKSP210,MXPA1#,MXPH14,17..G202401

BLACK,TRIM2#

69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH

main69293-12030iKSP210,MXPA1#¥160202002-202401

69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH

main69293-12040iKSP210,MXPA1#¥160202002-202401

69296SCREW, DOOR INSIDE HANDLE

main69296-30010iKSP210,MXPA1#,MXPH1#¥90202002-202302

main90148-50006iKSP210,MXPA1#¥60202303-202401

69310LOCK ASSY, FRONT DOOR, RH

main69030-K0010iKSP210,MXPA1#,MXPH1#¥12,500202002-202209

sub69030-K0011¥11,300

main69030-K0011iKSP210,MXPA1#¥11,300202210-202401

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-K0010iKSP210,MXPA1#¥410202002-202401

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-K0010iKSP210,MXPA1#¥410202002-202401

69318CSEAL, DOOR LOCK WIRING HARNESS

main69318-47010iKSP210,MXPA1#¥120202002-202401

69320LOCK ASSY, FRONT DOOR, LH

main69040-K0010iMXPA15;KSP210,MXPA10,MXPH1#..G,HBDG,HBDX,HBDZ,Z¥11,600202002-202209

sub69040-K0011¥10,500

main69040-K0011iMXPA15,MXPH14,17;KSP210,MXPA10..G,Z¥10,500202210-202401

main69040-K0011iMXPA15;KSP210,MXPA10..G,Z¥10,500202210-202401

main69040-K0011iMXPH10,15¥10,500202210

main69040-K0020iKSP210,MXPA10..X¥10,700202002-202209

sub69040-K0021¥9,800

main69040-K0021iKSP210,MXPA10..CVT..X¥9,800202210-202503

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-47010iMXPH10,15¥1,060202002-202401

69710DCABLE, FRONT DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)

main69710-K0010iKSP210,MXPA1#,MXPH1#¥1,250202002-202008

sub69710-K0011¥940

main69710-K0011iKSP210,MXPA1#¥940202009-202401

69720DCABLE, FRONT DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)

main69710-K0010iKSP210,MXPA1#,MXPH1#¥1,250202002-202008

sub69710-K0011¥940

main69710-K0011iKSP210,MXPA1#¥940202009-202401

69750ECABLE, FRONT DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)

main69750-K0010iKSP210,MXPA1#,MXPH1#¥1,250202002-202008

sub69750-K0011¥940

main69750-K0011iKSP210,MXPA1#¥940202009-202401

69760BCABLE, FRONT DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)

main69750-K0010iKSP210,MXPA1#,MXPH1#¥1,250202002-202008

sub69750-K0011¥940

main69750-K0011iKSP210,MXPA1#¥940202009-202401

9014850003

main90148-50003¥60

9014860083

main90148-60083¥60

9014880066

main90148-80066¥60

9018905003

main90189-05003¥130

9356755020

main93567-55020¥70

32 parts on this diagram · 1 diagram in section
