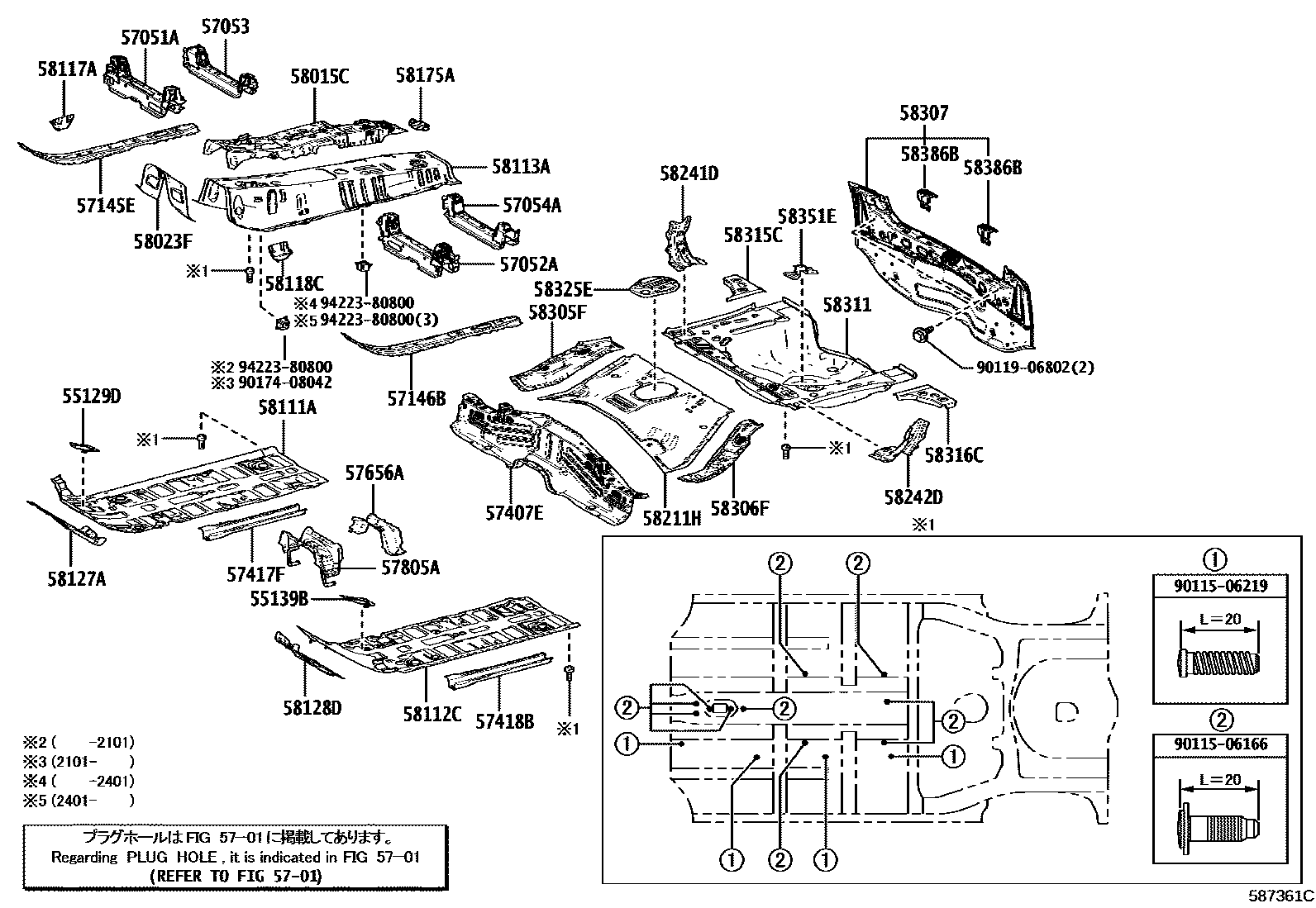

FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1 0003 1 0004 1

55129DCOVER, DASH PANEL HOLE, RH

main55129-52060iKSP210,MXPA1#202212-202401

main55129-K0010iKSP210,MXPA1#,MXPH1#202002-202211

55139BCOVER, DASH PANEL HOLE, LH

main55139-52030iKSP210,MXPA1#,MXPH14,17202212-202401

main55139-K0010iKSP210,MXPA1#,MXPH1#202002-202211

5701

57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-52110iKSP210,MXPA1#,MXPH14,17202002-202401

57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-52100iKSP210,MXPA1#202002-202401

57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH

main57053-K0010iKSP210,MXPA1#202002-202401

57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH

main57054-K0010iKSP210,MXPA1#202002-202401

57145EREINFORCEMENT, FRONT SIDE MEMBER, REAR RH

main57145-K0010iKSP210,MXPA1#202002-202401

57146BREINFORCEMENT, FRONT SIDE MEMBER, REAR LH

main57146-K0010iMXPH10,15202002-202401

57407EMEMBER SUB-ASSY, CENTER FLOOR CROSS

main57407-K0010iKSP210,MXPA10202002-202401

main57407-K0020iMXPH10,15202002

main57407-K0030iMXPA15202003-202401

57417FREINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-K0010iKSP210,MXPA1#202002-202401

57418BREINFORCEMENT, FRONT FLOOR UNDER, LH

main57417-K0010iKSP210,MXPA1#202002-202401

57656ABRACKET, EXHAUST PIPE MOUNTING, NO.1

main57656-K0020iMXPA15202003-202401

main57656-K0030iKSP210,MXPA10,MXPH14,17202002-202401

57805AREINFORCE SUB-ASSY, NO.1 SEAT LEG, REAR NO.1

main57805-K0020iMXPA15202003-202401

main57805-K0030iMXPH10,15202002-202401

58015CPANEL SUB-ASSY, FRONT FLOOR HOUSING

main58015-K0010iMXPH10,15202002-202401

main58015-K0020iMXPA15202003-202401

58023FBRACKET SUB-ASSY, FLEXIBLE HOSE

main58023-K0010iKSP210,MXPA1#202002-202401

58111APAN, FRONT FLOOR, RH

main58111-K0010iKSP210,MXPA1#202002-202401

58112CPAN, FRONT FLOOR, LH

main58112-K0010iMXPH10,15202002-202401

58113APANEL, FRONT FLOOR, CENTER

main58113-52230iMXPA15202003-202401

sub58113-52530

sub90950-01948

main58113-52240iKSP210,MXPA10202002-202401

sub58113-52520

sub90950-01948

main58113-52520iKSP210,MXPA10,MXPH14,17202401

main58113-52530iMXPA15202401

58117AREINFORCEMENT, FRONT FLOOR SIDE, RH

main58117-52090iKSP210,MXPA1#202002-202401

58118CREINFORCEMENT, FRONT FLOOR SIDE, LH

main58118-52040iMXPH10,15202002-202401

58127AREINFORCE, FRONT CROSS TO FRONT PANEL MEMBER, RH

main58127-K0010iMXPH10,15202002-202401

58128DREINFORCE, FRONT CROSS TO FRONT PANEL MEMBER, LH

main58128-K0010iKSP210,MXPA1#202002-202401

58175AREINFORCEMENT, PARKING BRAKE BASE, NO.1

main58175-K0020iMXPH10,15202002-202401

58211HPAN, CENTER FLOOR

main58211-K0010iKSP210,MXPA10202002-202401

main58211-K0020iMXPH10,15202002

main58211-K0030iMXPA15202003-202401

58241DGUSSET, WHEELHOUSE INNER, FRONT RH

main58203-K0010iMXPA15,MXPH17202002-202401

main58241-K0010iKSP210,MXPA10,MXPH14202002-202401

58242DGUSSET, WHEELHOUSE INNER, FRONT LH

main58204-K0010iMXPA15,MXPH17202002-202401

main58242-K0010iKSP210,MXPA10,MXPH14202002-202401

58305FPANEL SUB-ASSY, REAR FLOOR SIDE, RH

main58305-52120iMXPH14,17202301

main58305-K0010iKSP210,MXPA1#202002-202401

main58305-K0020iMXPH10,15202002-202301

sub58305-52120

58306FPANEL SUB-ASSY, REAR FLOOR SIDE, LH

main58306-52160iMXPH10,15202301

main58306-K0010iKSP210,MXPA1#202002-202401

main58306-K0020iMXPH10,15202002-202301

sub58306-52160

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-K0010iMXPH10202002-202401

main58307-K0011iKSP210,MXPA10,MXPH14202401

main58307-K0020iMXPH15202002-202401

main58307-K0021iMXPA15,MXPH17202401

58311PAN, REAR FLOOR

main58311-K0020iKSP210,MXPA10,MXPH10202002-202206

sub58311-K0021

sub90159-60500

sub90189-06147

main58311-K0021iMXPH10202206-202409

sub58311-K0022

sub899A0-12080

main58311-K0022iKSP210,MXPA10,MXPH14202409

main58311-K0030iMXPA15202003-202205

sub58311-K0031

sub90159-60500

sub90189-06147

main58311-K0031iMXPA15202205-202409

main58311-K0032iMXPA15202409

main58311-K0040iMXPH15202002-202205

sub58311-K0041

sub90159-60500

sub90189-06147

main58311-K0041iMXPH17202205-202409

sub58311-K0042

sub899A0-12080

main58311-K0042iMXPH17202409

58315CEXTENSION, REAR FLOOR SIDE PANEL, RH

main58315-K0010iKSP210,MXPA1#,MXPH14,17202002-202401

58316CEXTENSION, REAR FLOOR SIDE PANEL, LH

main58316-K0010iKSP210,MXPA1#202002-202401

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-K0010iKSP210,MXPA10202002-202401

main58325-K0020iMXPH14,17202002

main58325-K0030iMXPA15202003-202401

58351EBRACKET, SPARE WHEEL CLAMP

main58351-12060iKSP210,MXPA1#202002-202401

58386BBRACKET, REAR BUMPER COVER, NO.2

main58386-47020iKSP210,MXPA1#202002-202401

9011506166

main90115-06166

9011506219

main90115-06219

9011906802

main90119-06802

9017408042

main90174-08042

9422380800

main94223-80800

41 parts on this diagram · 4 diagrams in section
