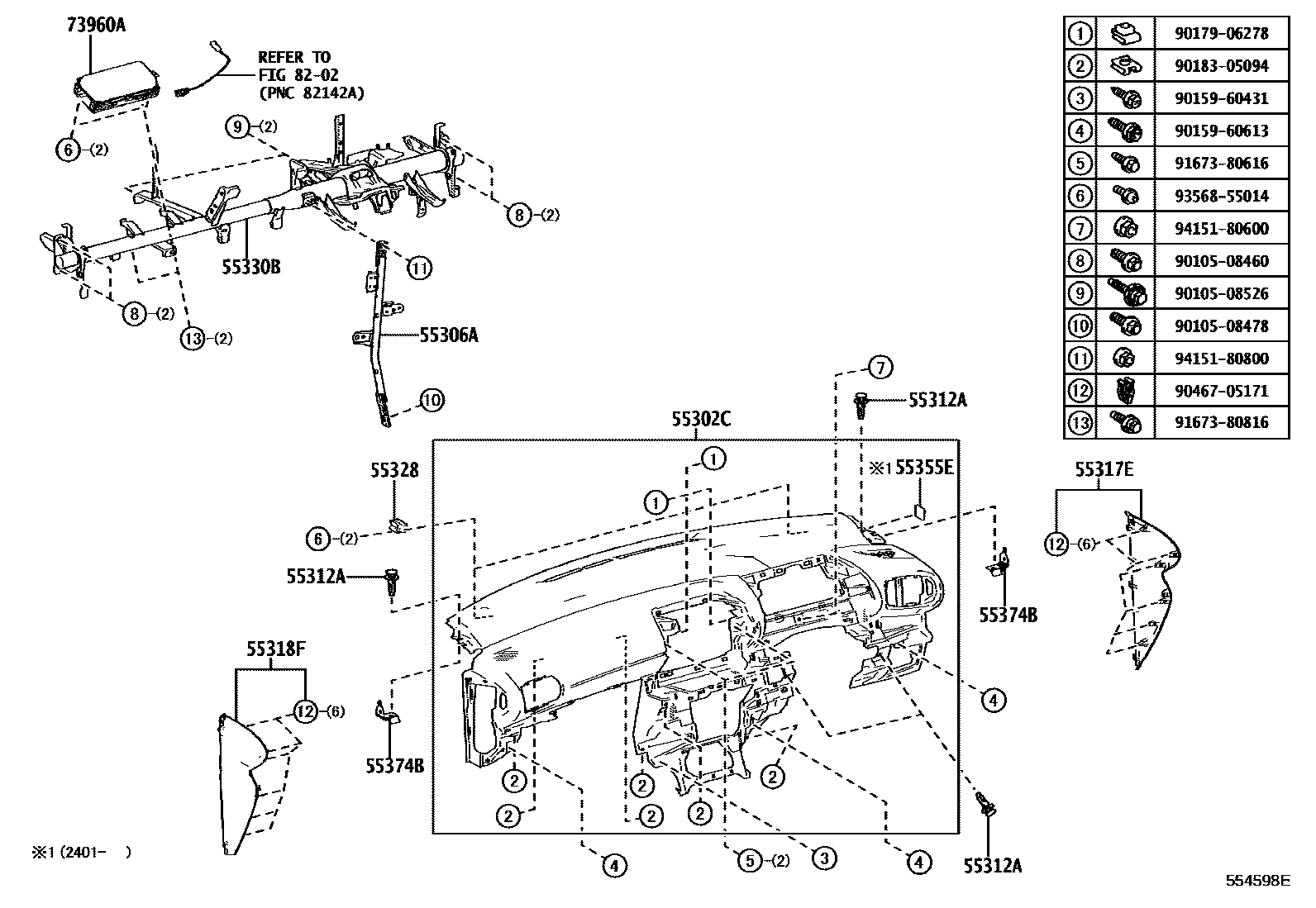

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1��������� 0004 1����� 0005 1����� 0006 1����������

55302CPANEL SUB-ASSY, INSTRUMENT

main55302-52260-C0iKSP210,MXPA1#,MXPH14,17..X202401-202502

BLACK,TRIM2#

main55302-K0010-C0iKSP210,MXPA1#,MXPH14,17..G202002-202401

BLACK,TRIM2#,4#

main55302-K0010-C0iKSP210,MXPA1#,MXPH14,17..G202401

BLACK,TRIM2#

main55302-K0020-C0iMXPH10,15..HBDZ202002-202401

SOFT BLACK,TRIM2#

main55302-K0020-E0iMXPA1#..Z202002-202401

TAUPE,TRIM1#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-K0010iKSP210,MXPA1#202002-202401

55312ACLIP, INSTRUMENT PANEL

main52161-16010iKSP210,MXPA1#,MXPH14,17202002-202401

55317EPANEL, INSTRUMENT SIDE, NO.1

main55317-K0010-C0iKSP210;MXPA1#..X202002-202401

BLACK,TRIM1#,2#

main55317-K0010-C0iKSP210;MXPA1#..X202002-202401

BLACK,TRIM1#,2#,4#

main55317-K0010-C0iKSP210;MXPA1#..X202002-202401

BLACK,TRIM2#,4#

main55317-K0010-C0iKSP210,MXPA1#,MXPH14,17..G202401

BLACK,TRIM2#

55318FPANEL, INSTRUMENT SIDE, NO.2

main55318-52170-C0iMXPH14..G202401

BLACK,TRIM2#,4#

main55318-52170-C0iMXPH14..G202401

BLACK,TRIM2#

main55318-K0010-C0iKSP210;MXPA1#..X202002-202401

BLACK,TRIM1#,2#

main55318-K0010-C0iMXPA1#..Z202002-202401

BLACK,TRIM1#,2#,4#

main55318-K0010-C0iMXPA1#..Z202002-202401

BLACK,TRIM2#,4#

main55318-K0010-C0iKSP210,MXPA1#,MXPH17..U,X,Z202401

BLACK,TRIM2#

55328PIN, INSTRUMENT PANEL, NO.1

main55328-12430iKSP210,MXPA1#,MXPH14,17202006-202401

main55328-60090iKSP210,MXPA1#,MXPH1#202002-202005

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-52A50iKSP210,MXPA1#..G,X202105-202401

sub55330-52B00

main55330-52B00iKSP210,MXPA1#,MXPH14,17..G,U,X202401

main55330-52B10iMXPA1#,MXPH14,17..Z202401

main55330-K0010iKSP210,MXPA1#,MXPH1#..G,HBDG,HBDX,X202002-202401

55355ECUSHION, INSTRUMENT PANEL

main55355-53050iKSP210,MXPA1#,MXPH14,17202401

55374BBRACKET, INSTRUMENT PANEL

main55363-52010iKSP210,MXPA1#202002-202401

main55363-52020iMXPH10,15202002-202401

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-K0010iMXPH10,15202002-202401

8202

9010508460

main90105-08460

9010508478

main90105-08478

9010508526

main90105-08526

9015960431

main90159-60431

9015960613

main90159-60613

9017906278

main90179-06278

9018305094

main90183-05094

9046705171

main90467-05171

9167380616

main91673-80616

9167380816

main91673-80816

9356855014

main93568-55014

9415180600

main94151-80600

9415180800

main94151-80800

24 parts on this diagram · 6 diagrams in section
