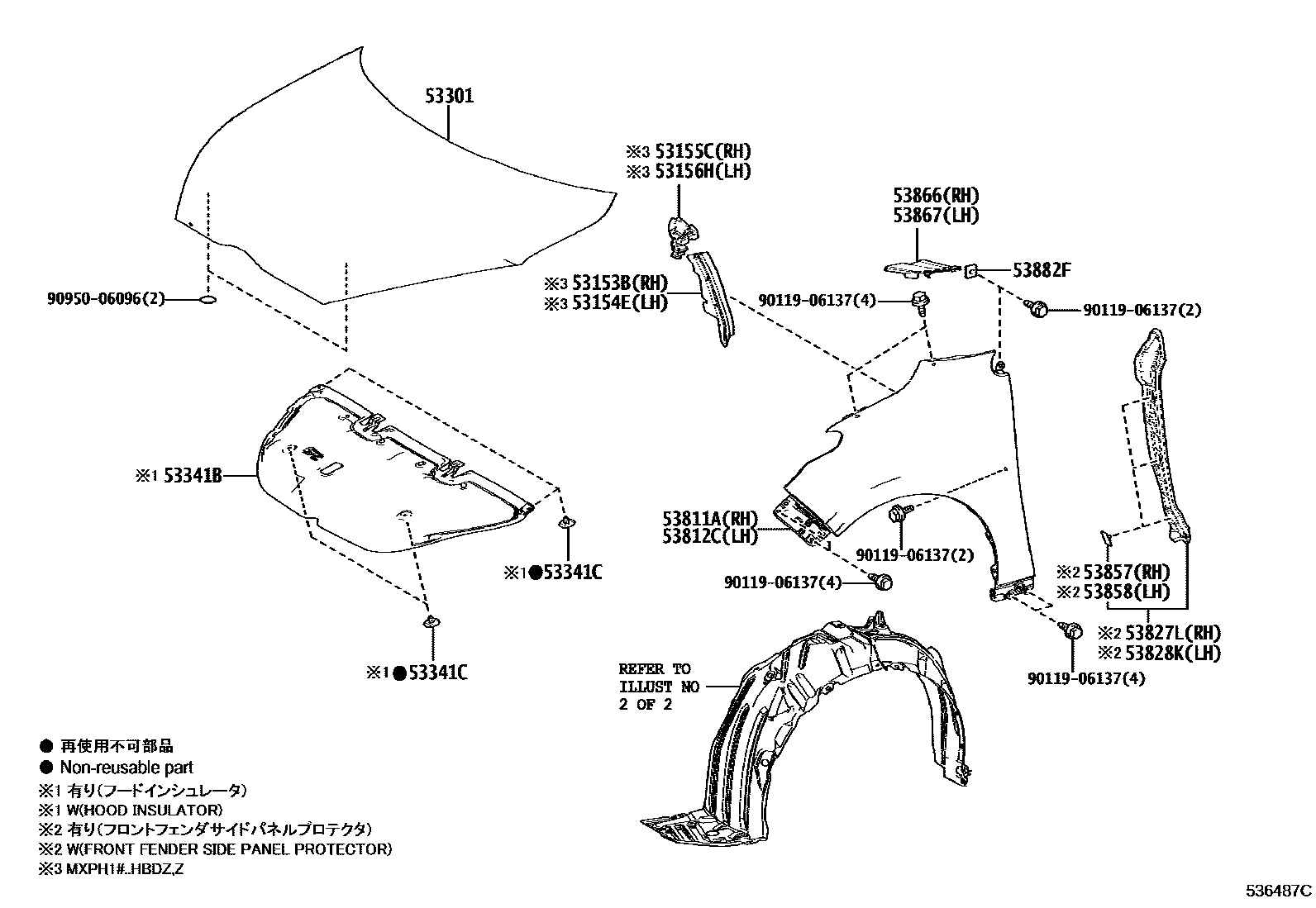

HOOD & FRONT FENDER

0001 1 0002 1

53153BGUIDE, FRONT SIDE AIR

main53153-K0010iMXPH10,15..HBDZ¥1,170202002

53154EGUIDE, FRONT SIDE AIR, NO.2

main53154-K0010iMXPH10,15..HBDZ¥1,190202002

53155CSEAL, RADIATOR GRILLE, NO.1

main53155-K0010iMXPH10,15..HBDZ¥1,220202002

53156HSEAL, RADIATOR GRILLE, NO.2

main53156-K0010iMXPH10,15..HBDZ¥1,220202002

53301HOOD SUB-ASSY

main53301-K0010iKSP210,MXPA1#¥26,000202002-202401

53341BINSULATOR, HOOD

main53341-K0050iMXPH10,15¥6,700202002

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050iMXPH10,15¥120202002

53811APANEL, FRONT FENDER, RH

main53811-K0060iKSP210,MXPA1#¥16,400202002-202401

53812CPANEL, FRONT FENDER, LH

main53812-K0060iKSP210,MXPA1#¥16,400202002-202401

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-K0010iMXPH10,15..HBDZ¥1,820202002

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-K0010iMXPH10,15..HBDZ¥1,820202002

53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-12010iMXPH10,15..HBDZ¥100202002

53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-12010iMXPH10,15..HBDZ¥100202002

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-K0010iKSP210,MXPA1#¥590202002-202401

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-K0010iKSP210,MXPA1#¥590202002-202401

53882FSEAL, FRONT FENDER

main53882-16030iKSP210,MXPA1#¥60202002-202401

9011906137

main90119-06137¥70

9095006096

main90950-06096¥100

18 parts on this diagram · 2 diagrams in section
