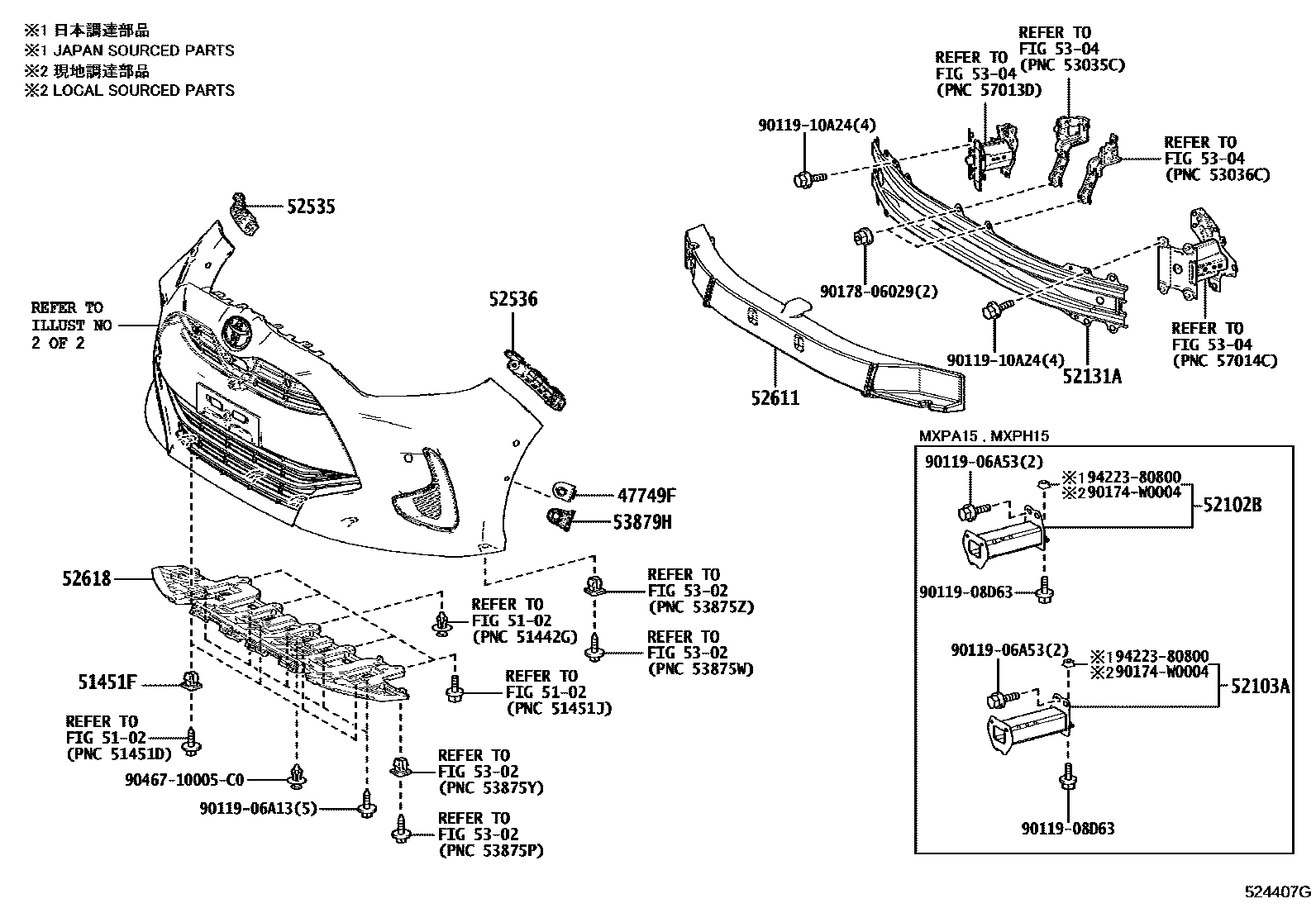

FRONT BUMPER & BUMPER STAY

0001 1 0003 1 0005 1 0006 1

47749FCLIP, PIN HOLD

main47749-33030iMXPH10,15202002-202401

5102

51451FGROMMET, NO.1

main90189-06237iKSP210,MXPA1#202002-202401

52102BEXTENSION SUB-ASSY, FRONT BUMPER, RH

main52102-K0010iMXPH15202002

main52102-K0020iMXPA15202003-202401

52103AEXTENSION SUB-ASSY, FRONT BUMPER, LH

main52103-K0010iMXPH15202002

main52103-K0020iMXPA15202003-202401

52131AREINFORCEMENT, FRONT BUMPER

main52131-52360iKSP210,MXPA1#,MXPH14,17202401

main52131-K0010iKSP210,MXPA1#,MXPH1#202002-202006

sub52131-K0011

main52131-K0011iMXPH10,15202007-202401

sub52131-52360

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-K0030iKSP210,MXPA1#,MXPH14,17202401

main52535-K0030iKSP210,MXPA1#202002-202401

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-K0030iKSP210,MXPA1#,MXPH14,17202401

main52536-K0030iMXPH10,15202002-202401

52611ABSORBER, FRONT BUMPER ENERGY

main52611-52430iKSP210,MXPA1#,MXPH14,17202401

main52611-K0030iKSP210,MXPA1#202002-202401

52618ABSORBER, FRONT BUMPER, LOWER

main52618-52170iKSP210,MXPA1#,MXPH14,17202002-202401

5302

5304

53879HRETAINER, FRONT FENDER LINER

main53879-33030iKSP210,MXPA1#,MXPH14,17202002-202401

9011906A13

main90119-06A13

9011906A53

main90119-06A53

9011908D63

main90119-08D63

9011910A24

main90119-10A24

90174W0004

main90174-W0004

9017806029

main90178-06029

9046710005C0

main90467-10005C0

9422380800

main94223-80800

21 parts on this diagram · 4 diagrams in section
