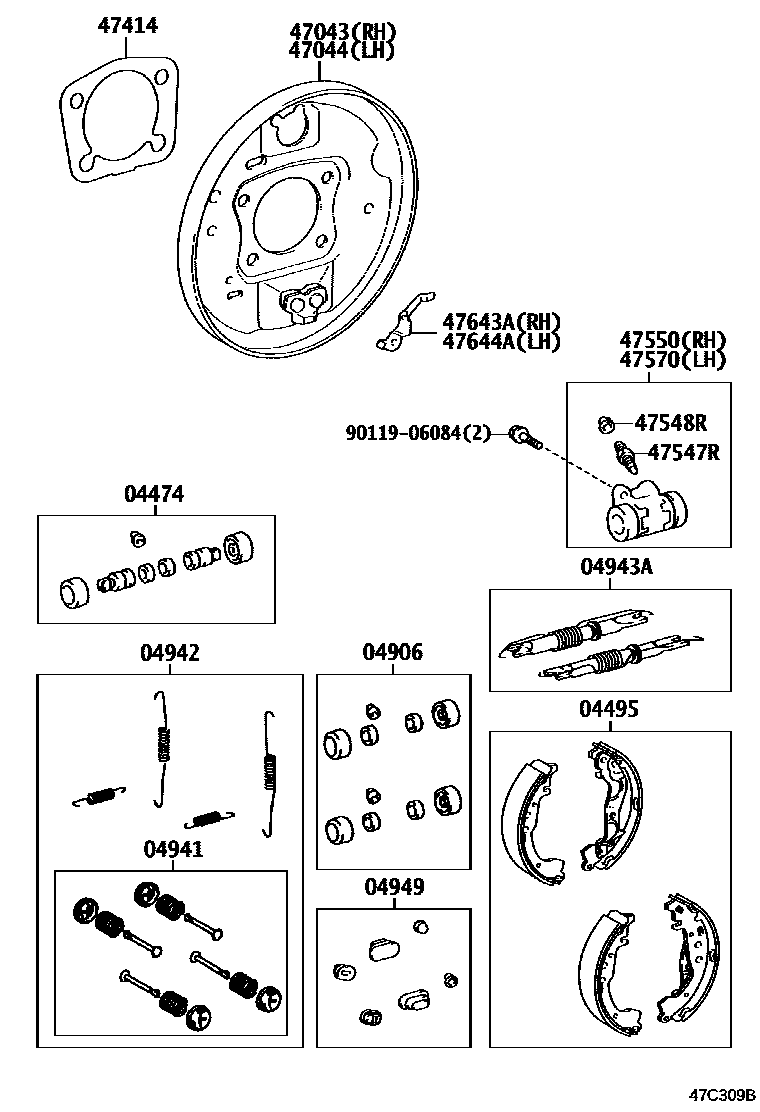

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0002 1 0003 1 0004 1

04474CYLINDER KIT, REAR WHEEL

main04474-47010iMXPH15¥1,430202002

main04474-52020iKSP210,MXPA1#¥1,730202002-202401

main04474-52140iMXPH14,17¥1,570202401

04495SHOE KIT, REAR BRAKE

main04495-52121iMXPH14,17¥4,700202401

main04495-52170iKSP210,MXPA1#¥3,440202002-202401

04906CUP KIT, REAR WHEEL CYLINDER

main04906-10021iMXPH10¥870202002-202401

main04906-28040iMXPH14,17¥870202401

main04906-47010iMXPH15¥870202002

04941SPRING KIT, REAR BRAKE SHOE HOLD DOWN

main04941-28010iMXPH14,17¥1,860202401

main04941-46010iKSP210,MXPA1#¥1,690202002-202401

04942SPRING KIT, REAR BRAKE

main04942-13030iMXPH14,17¥2,070202401

main04942-52050iKSP210,MXPA1#¥2,060202002-202401

04943ASTRUT KIT, REAR BRAKE

main04943-12010iKSP210,MXPA1#¥2,730202002-202401

main04943-52030iMXPH14,17¥2,460202401

04949PLUG KIT, REAR BRAKE

main04949-12010iKSP210,MXPA1#¥800202002-202401

main04949-13010iMXPH14,17¥800202401

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-52100iKSP210,MXPA1#,MXPH10,15¥2,370202002

main47043-52120iMXPH14,17¥2,810202401

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-52100iMXPH10,15¥2,370202002-202401

main47044-52120iMXPH14,17¥2,810202401

47414SPACER, BACKING PLATE

main47414-52010iMXPA15¥390202003-202401

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-20010iMXPH15¥200202002-202401

main47547-27030iMXPH17¥180202401

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010iMXPH15¥160202002-202401

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-20211iKSP210,MXPA1#¥3,130202002-202401

main47550-28060iMXPH14,17¥3,560202401

main47550-47010iMXPH15¥4,820202002

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-28060iMXPH14,17¥3,560202401

main47570-20101iMXPH10¥3,130202002-202401

main47570-47010iMXPH15¥4,820202002

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-52102iKSP210,MXPA1#¥200202002-202401

main47643-52120iMXPH14,17¥200202401

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47644-52102iKSP210,MXPA1#¥200202002-202401

9011906084

main90119-06084¥100

17 parts on this diagram · 4 diagrams in section
