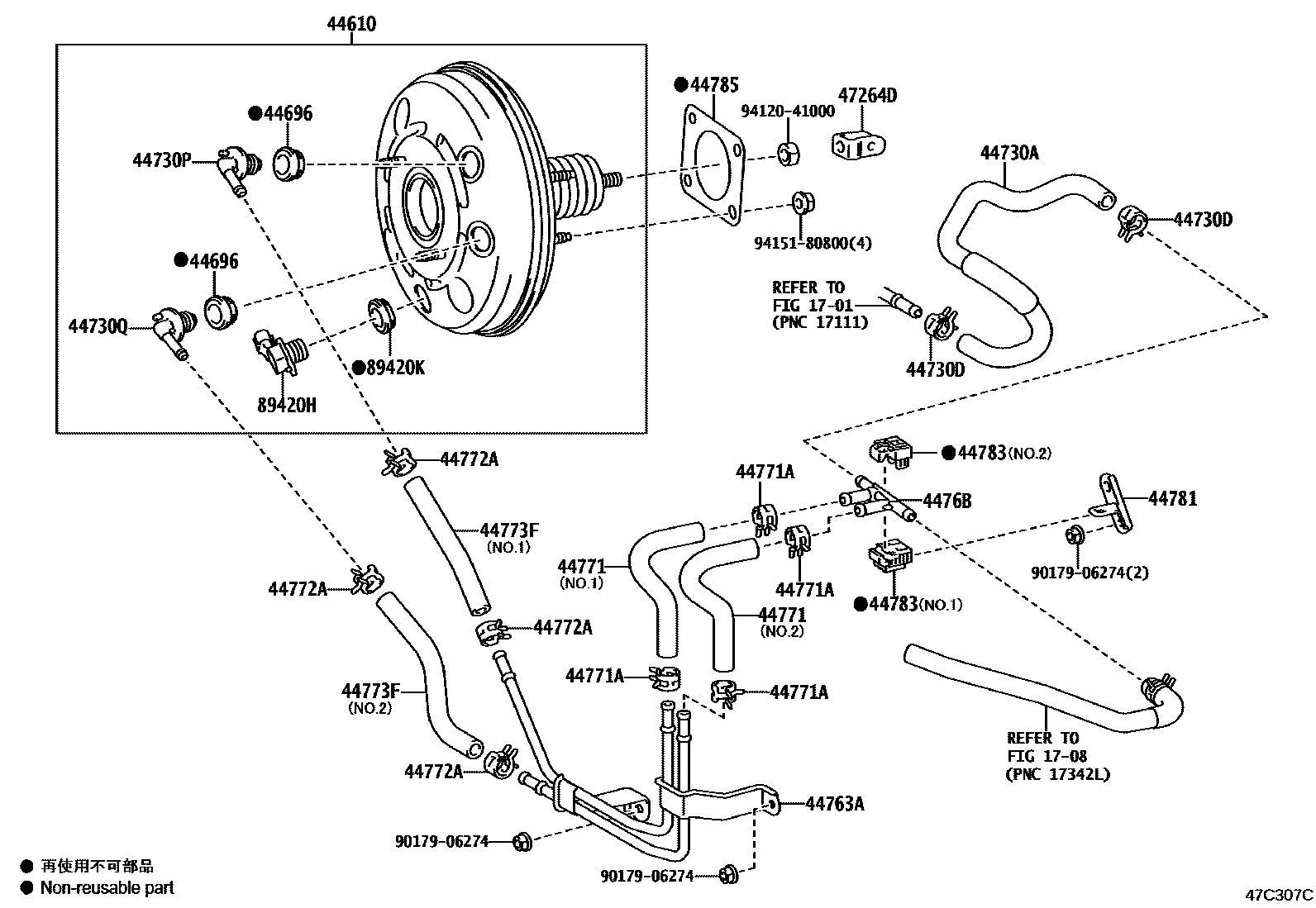

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

1701

1708

44610BOOSTER ASSY, BRAKE

main44610-K0120iMXPA1#202002-202401

main44610-K0130iKSP210202002-202401

44696GROMMET, CHECK VALVE

main90480-24439iKSP210202002-202401

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-52010iMXPA1#202002-202401

44730AHOSE, VACUUM, NO.1

main44774-K0050iKSP210202002-202401

44730DCLIP(FOR VACUUM HOSE, NO.1)

main90467-16014iKSP210202002-202401

44730PVALVE ASSY, VACUUM CHECK, NO.1

main44730-52010iKSP210202002-202401

44730QVALVE ASSY, VACUUM CHECK, NO.2

main44730-52010iKSP210202002-202401

44763ATUBE, HOSE TO HOSE, NO.1

main44763-K0050iKSP210202002-202401

main44763-K0060iMXPA1#202002-202401

4476BEJECTOR, BRAKE BOOSTER VACUUM

main4476B-48010iKSP210202002-202401

44771HOSE, VACUUM TUBE CONNECTOR

main44771-K0010iKSP210202002-202401

main44771-K0020iKSP210202002-202401

44771ACLIP(FOR VACUUM TUBE CONNECTOR HOSE)

main90467-16014iKSP210202002-202401

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-52350iMXPA1#202002-202401

44772ACLIP(FOR CHECK VALVE TO CONNECTOR TUBE)

main90467-16014iKSP210202002-202401

44773FHOSE, UNION TO CHECK VALVE

main44772-K0040iKSP210202002-202401

main44772-K0050iKSP210202002-202401

44781BRACKET, HOSE

main44781-K0020iKSP210202002-202401

44783CLAMP, VACUUM HOSE

main44783-K0010iKSP210202002-202401

main44783-K0020iKSP210202002-202401

44785GASKET, BRAKE BOOSTER

main44785-16020iKSP210,MXPA1#202002-202401

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-12060iMXPA1#202002-202401

main47264-52040iKSP210202002-202401

89420HSENSOR ASSY, VACUUM

main89421-52020iKSP210202002-202401

89420KGROMMET, VACUUM SENSOR

main90480-24439iKSP210202002-202401

9017906274

main90179-06274

9412041000

main94120-41000

9415180800

main94151-80800

25 parts on this diagram · 2 diagrams in section
