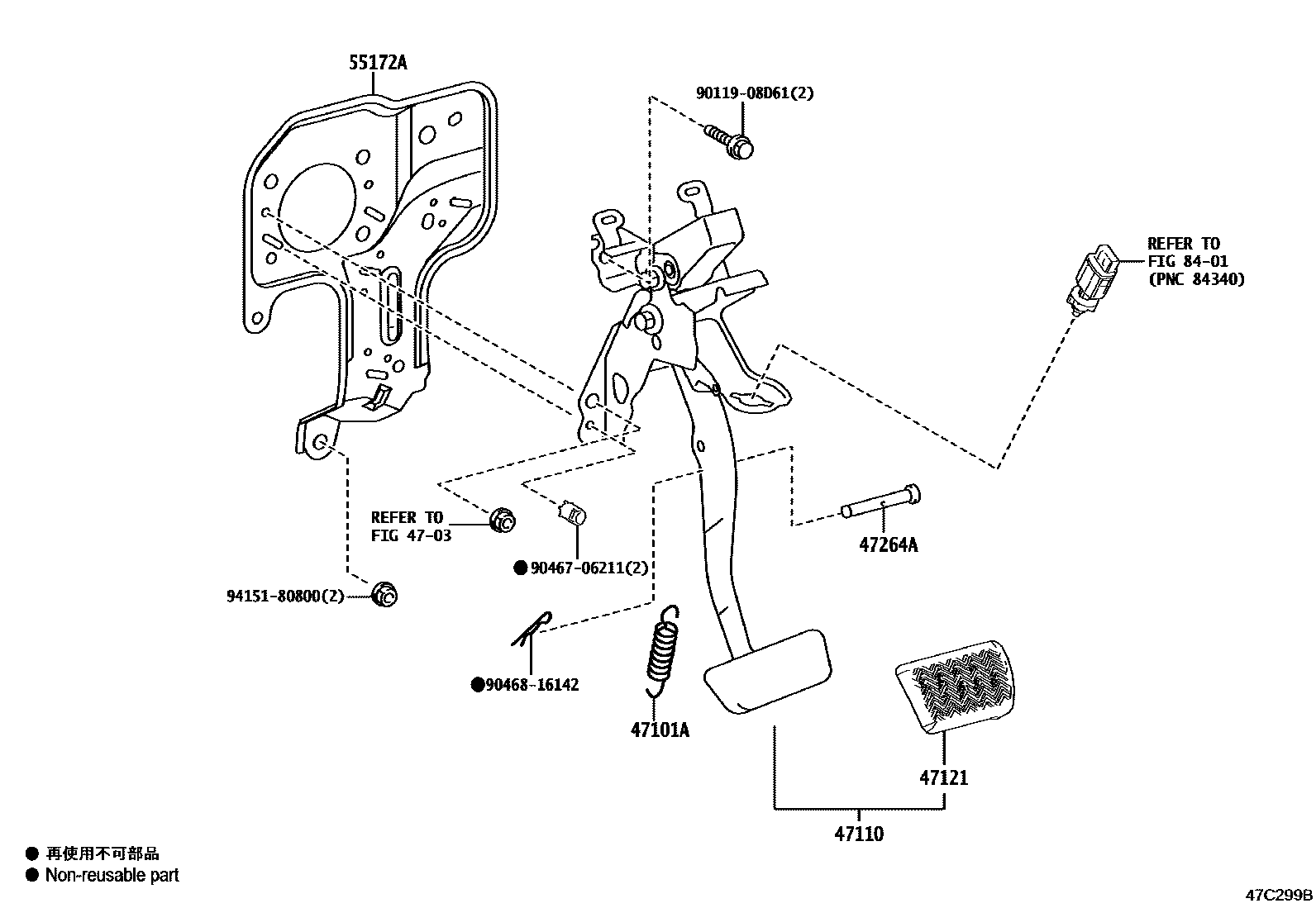

BRAKE PEDAL & BRACKET

0001 1 0002 1 0003 1

4703

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90506-14088iMXPH10,15202002

main90506-17003iKSP210,MXPA1#,MXPH14,17202002-202401

47110SUPPORT ASSY, BRAKE PEDAL

main47110-K0070iMXPA1#..CVT202002-202401

main47110-K0080iMXPA10..6F202002-202401

main47110-K0090iMXPH10,15202002

main47110-K0100iKSP210202002-202401

47121PAD, BRAKE PEDAL

main47121-12040iMXPA10..6F202002-202401

main47121-47010iMXPH10,15202002-202401

47264APIN(FOR PUSH ROD)

main90249-08051iKSP210,MXPA1#,MXPH1#202002-202206

main90249-08256iKSP210,MXPA1#202207-202401

55172ABASE, BRAKE PEDAL SUPPORT

main55172-K0010iKSP210,MXPA1#202002-202401

8401

9011908D61

main90119-08D61

9046706211

main90467-06211

9046816142

main90468-16142

9415180800

main94151-80800

11 parts on this diagram · 3 diagrams in section
