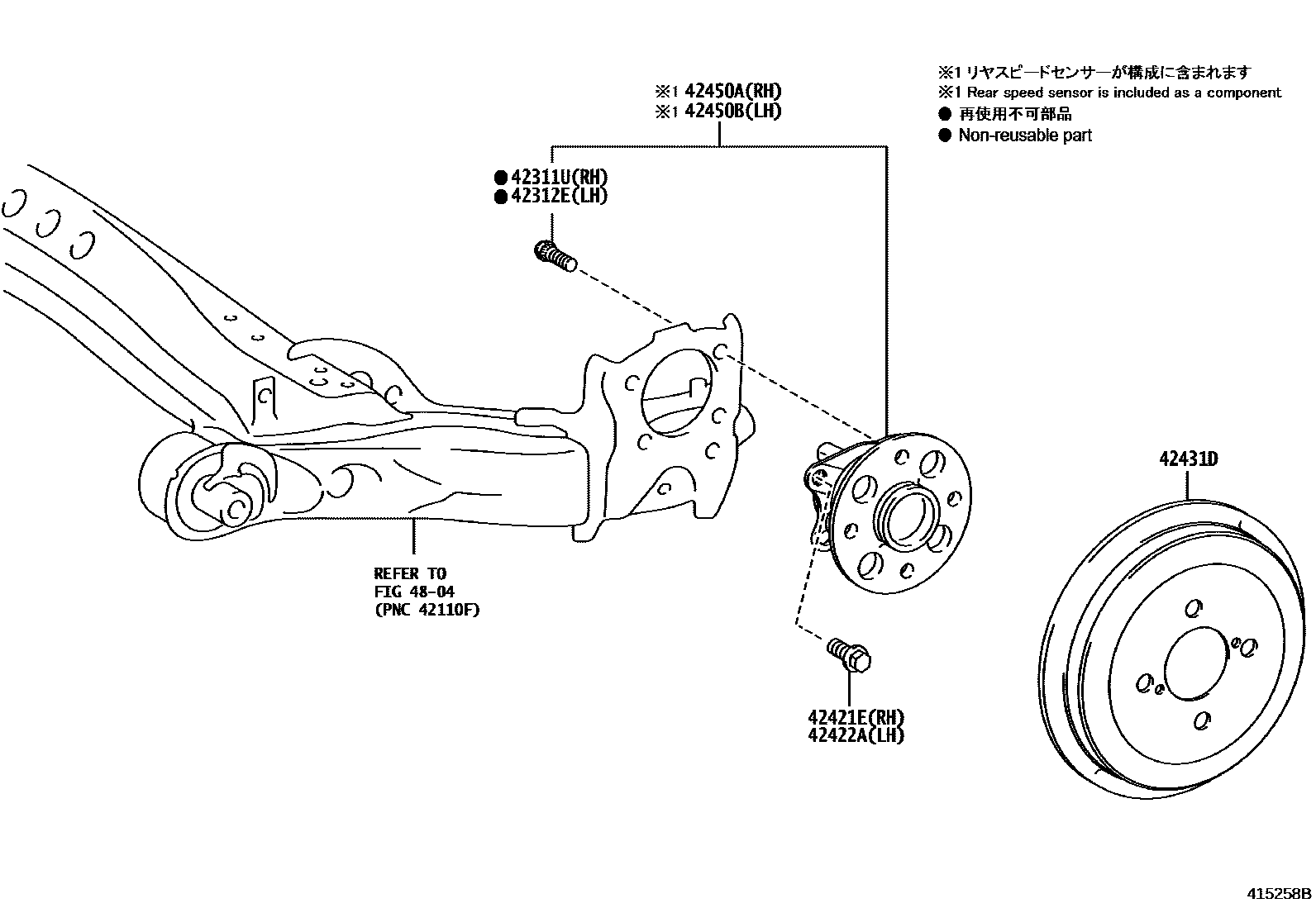

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1 0004 1

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02049×4iKSP210,MXPA1#202002-202401

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02049×4iKSP210,MXPA1#,MXPH14,17202401

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-12406×4iKSP210,MXPA1#202002-202401

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-12406×4iKSP210,MXPA1#,MXPH14,17202401

42431DDRUM, BRAKE

main42431-52090×2iMXPH14,17202401

main42431-K0020×2iMXPH10,15202002

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42410-K0010iMXPA15202002-202401

main42450-K0010iMXPH10202002

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42410-K0010iMXPA15202002-202401

main42450-K0010iKSP210,MXPA10202002-202401

4804

8 parts on this diagram · 4 diagrams in section
