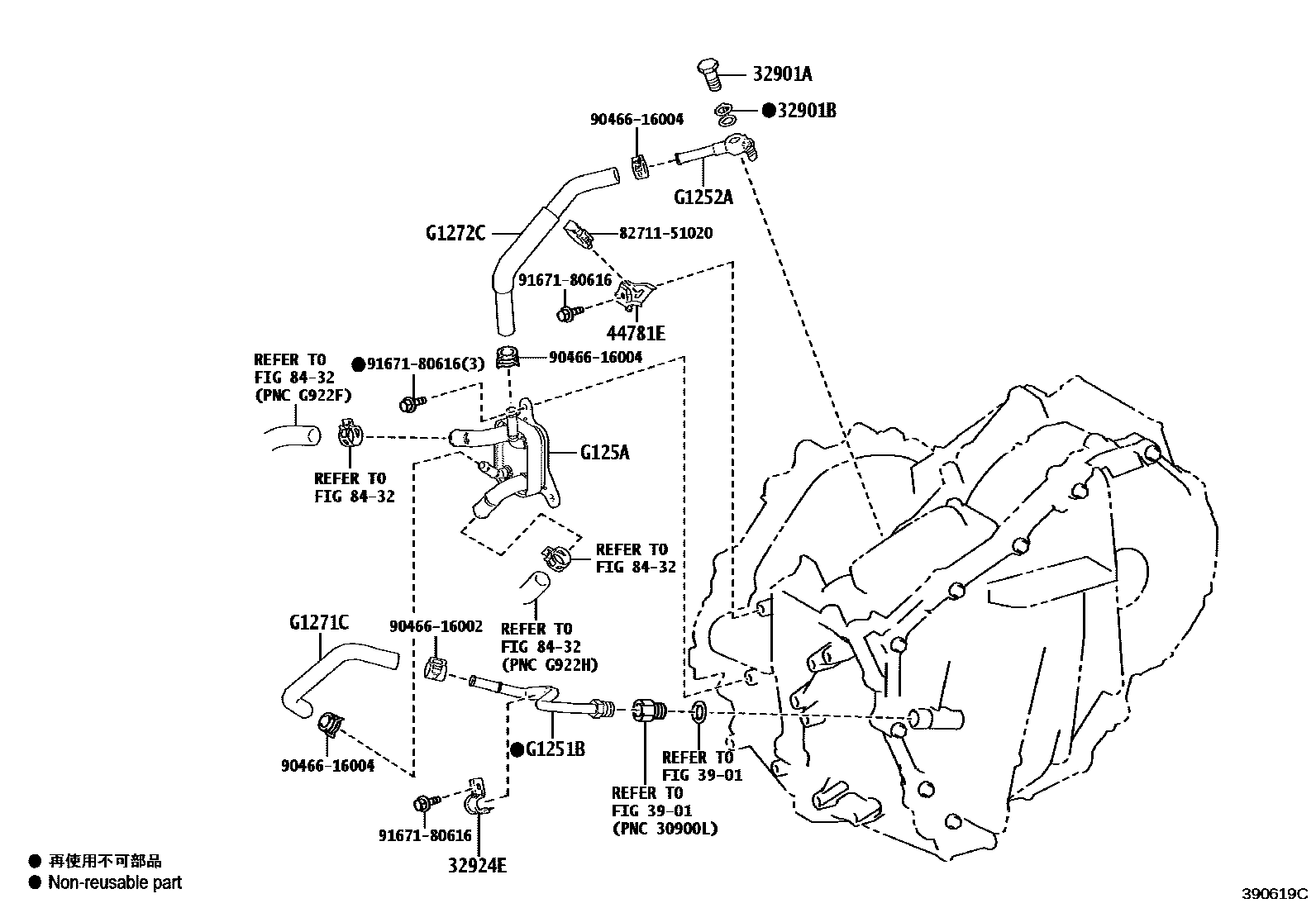

OIL COOLER & TUBE (HEV OR BEV OR FCEV)

0001 1 0002 1

32901ABOLT, UNION(FOR OIL COOLER)

main90401-12039iMXPH10,15202002

32901BGASKET(FOR OIL COOLER UNION)

main90430-12037iMXPH10,15202002

32924ECLAMP, OIL COOLER TUBE, NO.2

main32924-48010iMXPH10,15202002

3901

44781EBRACKET, HOSE

main44781-K0010iMXPH10,15202002

8432

G1251BPIPE, MOTOR COOLING, NO.1

mainG1251K0010iMXPH10,15202002

G1252APIPE, MOTOR COOLING, NO.2

mainG125252030iMXPH14,17202401

mainG1252K0010iMXPH10,15202002

G125ACOOLER, MOTOR COOLING

mainG125AK0010iMXPH10,15202002

G1271CHOSE, MOTOR COOLING, NO.1

mainG127152040iMXPH14,17202401

mainG1271K0010iMXPH10,15202002

G1272CHOSE, MOTOR COOLING, NO.2

mainG1272K0010iMXPH10,15202002

8271151020WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-51020

9046616002

main90466-16002

9046616004

main90466-16004

9167180616

main91671-80616

15 parts on this diagram · 2 diagrams in section
