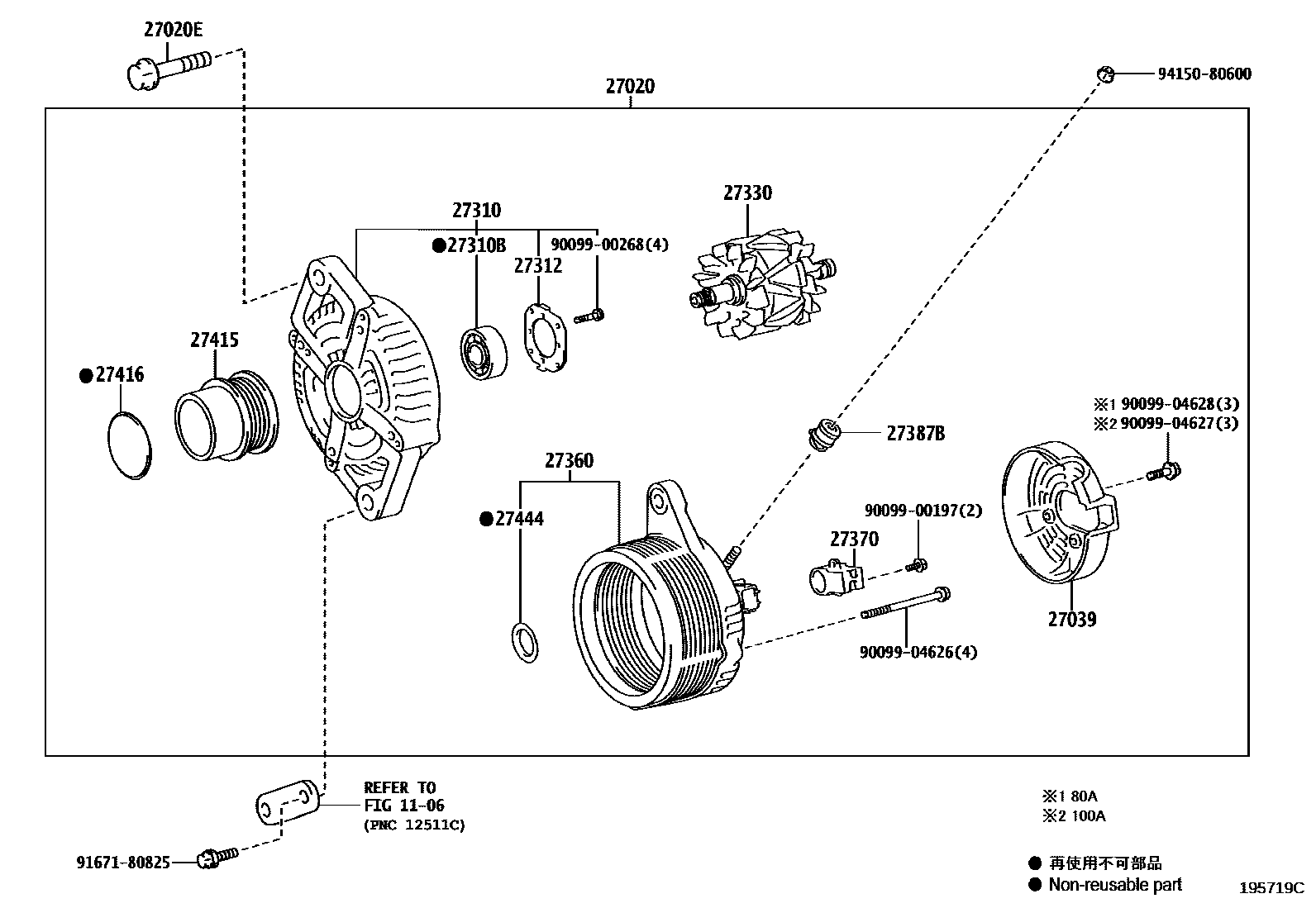

ALTERNATOR

0001 112V 80A,100A 0002 112V 80A,100A

1106

27020ALTERNATOR ASSY

main27060-40150i1KRFE..KSP210202002-202307

sub27060-40151

main27060-40151i1KRFE..KSP210202308-202401

main27060-K0010iM15AFKS..MXPA10..6F202002-202307

sub27060-K0011

main27060-K0011iM15AFKS..MXPA10..6F202308-202401

main27060-K0040iM15AFKS..MXPA1#..CVT202002-202307

sub27060-K0041

main27060-K0041iM15AFKS..MXPA1#..CVT202308-202401

27020EBOLT(FOR ALTERNATOR)

main91552-81075i1KRFE..KSP210202002-202401

27039COVER, ALTERNATOR REAR END

main27039-21211iM15AFKS,1KRFE..KSP210,MXPA1#202308-202401

main27039-47310iM15AFKS,1KRFE..KSP210,MXPA1#202002-202308

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-40171i1KRFE..KSP210202308-202401

main27310-40190i1KRFE..KSP210202002-202308

main27310-K0010iM15AFKS..MXPA1#202002-202308

main27310-K0011iM15AFKS..MXPA1#202308-202401

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10227iM15AFKS,1KRFE..KSP210,MXPA1#202002-202401

27312PLATE, RETAINER

main27312-72100iM15AFKS,1KRFE..KSP210,MXPA1#202002-202401

27330ROTOR ASSY, ALTERNATOR

main27330-21211iM15AFKS,1KRFE..KSP210,MXPA1#202308-202401

main27330-47310iM15AFKS,1KRFE..KSP210,MXPA1#202002-202308

27360COIL ASSY, ALTERNATOR

main27360-40170i1KRFE..KSP210202002-202308

main27360-40171i1KRFE..KSP210202308-202401

main27360-K0010iM15AFKS..MXPA1#202002-202308

main27360-K0011iM15AFKS..MXPA1#202308-202401

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-31220iM15AFKS,1KRFE..KSP210,MXPA1#202002-202401

27387BINSULATOR, ALTERNATOR TERMINAL

main27387-47310iM15AFKS,1KRFE..KSP210,MXPA1#202002-202401

27415PULLEY, ALTERNATOR W/CLUTCH

main27415-0W200iM15AFKS..MXPA10..6F202002-202401

main27415-0W210i1KRFE..KSP210202002-202401

main27415-15010iM15AFKS..MXPA1#..CVT202002-202401

27416CAP, ALTERNATOR PULLEY

main27416-0W020i1KRFE..KSP210202002-202401

main27416-0W050iM15AFKS..MXPA10..6F202002-202401

main27416-47010iM15AFKS..MXPA1#..CVT202002-202401

27444PACKING, ALTERNATOR BEARING COVER

main27444-21190iM15AFKS,1KRFE..KSP210,MXPA1#202002-202401

9009900197

main90099-00197

9009900268

main90099-00268

9009904626

main90099-04626

9009904627

main90099-04627

9009904628

main90099-04628

9167180825

main91671-80825

9415080600

main94150-80600

21 parts on this diagram · 2 diagrams in section
