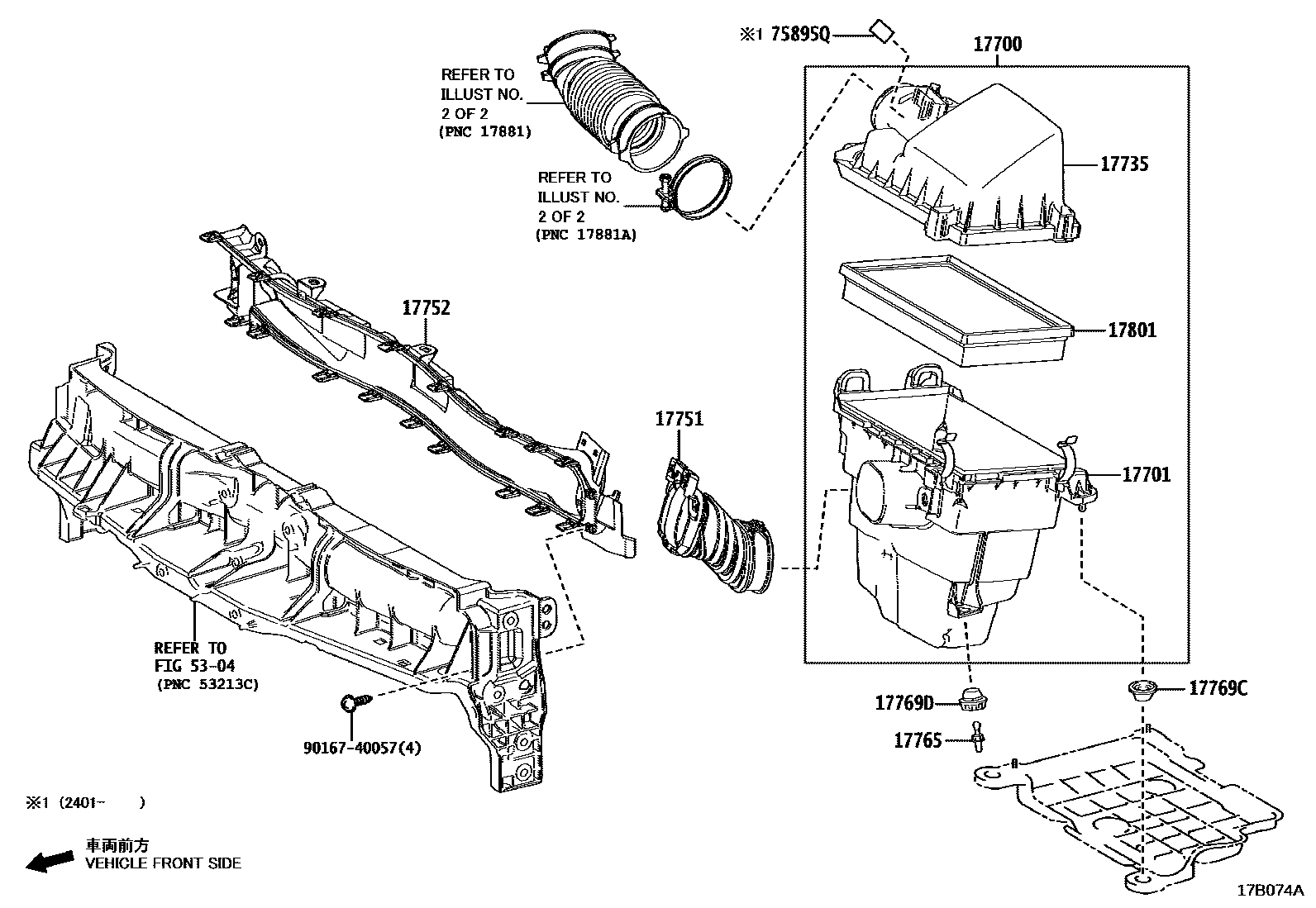

AIR CLEANER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

17700CLEANER ASSY, AIR

main17700-15390iM15AFKS..MXPA1#202002-202207

sub17700-15410

main17700-15400iM15AFXE..MXPH14,17202002

main17700-15410iM15AFKS..MXPA1#202208-202401

main17700-40290i1KRFE..KSP210202002-202207

sub17700-40291

main17700-40291i1KRFE..KSP210202208-202401

17701CASE SUB-ASSY, AIR CLEANER

main17701-15290i1KRFE..KSP210202002-202208

sub17701-15310

main17701-15300iM15AFXE..MXPH10,15202002

main17701-15310i1KRFE..KSP210202208-202401

17735CAP, AIR CLEANER

main17735-40020i1KRFE..KSP210202002-202401

17751INLET, AIR CLEANER, NO.1

main17751-15090iM15AFKS..MXPA1#202002-202401

main17751-15100iM15AFXE..MXPH10,15202002

17752INLET, AIR CLEANER, NO.2

main17752-15060i1KRFE..KSP210202208-202401

main17752-15070iM15#..MXPA1#,MXPH1#202002-202208

17765STAY, AIR CLEANER, NO.1

main17765-25010i1KRFE..KSP210202002-202401

17769SUPPORT, AIR CLEANER

main17769-25030iM15AFKS..MXPA1#202002-202401

17769CSUPPORT, AIR CLEANER, NO.1

main17769-25020i1KRFE..KSP210202002-202401

17769DSUPPORT, AIR CLEANER, NO.2

main17769-25030i1KRFE..KSP210202002-202401

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-15090i1KRFE..KSP210202002-202401

main17801-24040iM15AFXE..MXPH14,17202002

5304

75895QTAPE, MOULDING, NO.1

main75895-52080iKSP210202401

9016740057

main90167-40057

13 parts on this diagram · 6 diagrams in section
