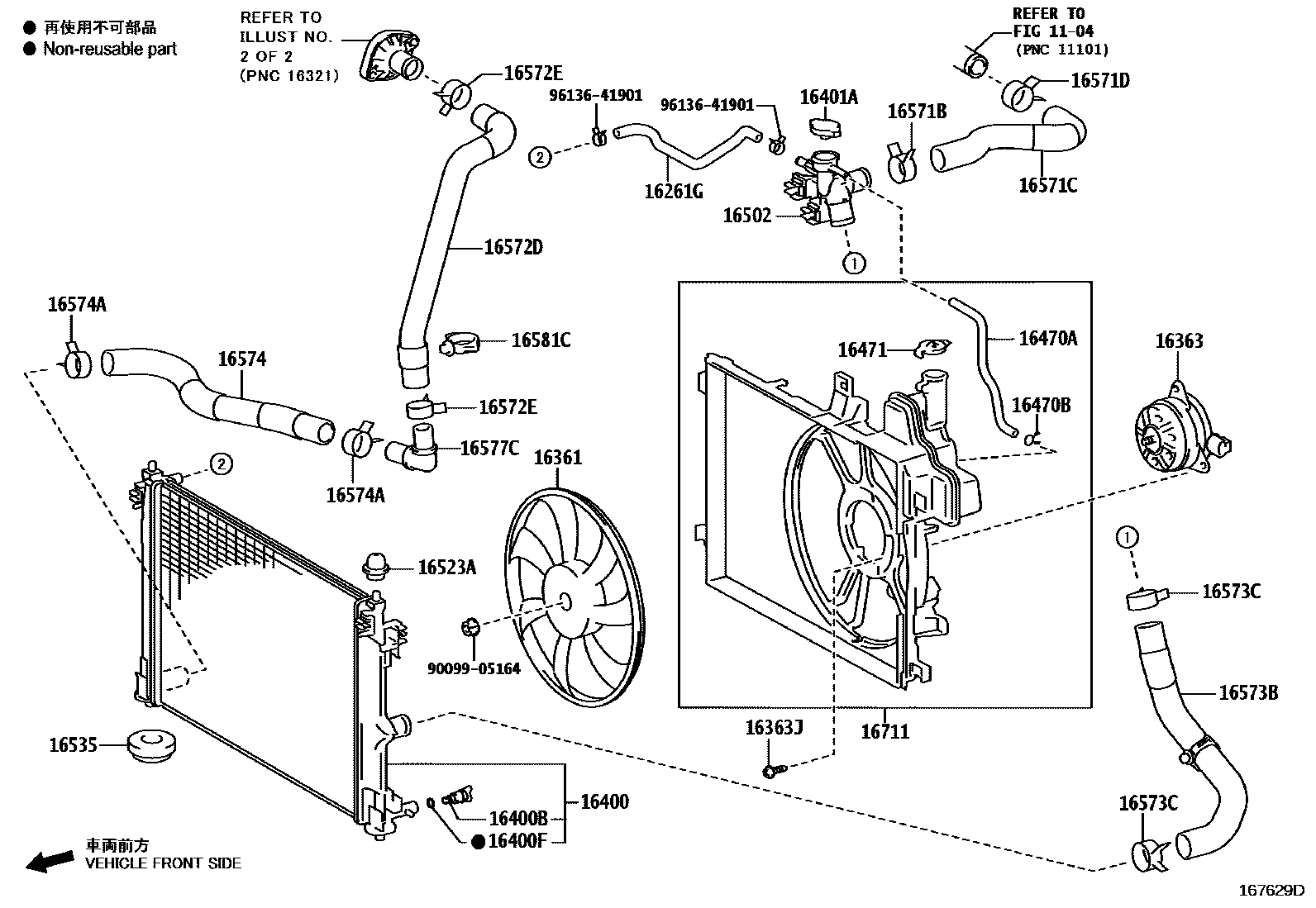

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1��������� 0004 1�������� 0005 1�������� 0006 1�������� 0007 1��������

1104

16261HOSE, WATER BY-PASS

main16260-40190i1KRFE..KSP210202002-202401

16261GHOSE, WATER BY-PASS, NO.1

main16261-15030iM15AFXE..MXPH10,15202002

main16261-15040iM15AFKS..MXPA1#202401

16361FAN

main16361-15090iM15AFKS..MXPA1#202002-202401

main16361-15100iM15AFXE..MXPH10,15202002

main16361-28270i1KRFE..KSP210202401

16363MOTOR, COOLING FAN

main16363-28200i1KRFE..KSP210202002-202401

main16363-K0010iM15AFKS..MXPA1#202401

main16363-K0020iM15AFXE..MXPH10,15202002

16363JBOLT(FOR COOLING FAN MOTOR)

main90099-04119×3i1KRFE..KSP210202002-202401

16400RADIATOR ASSY

main16400-15620iM15AFKS..MXPA1#202002-202401

main16400-15630iM15AFXE..MXPH14,17202401

main16400-40230i1KRFE..KSP210202002-202401

16400BPLUG, RADIATOR DRAIN COCK

main16417-21280×2iM15AFXE..MXPH14,17202401

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-21050iM15AFKS..MXPA1#202002-202401

16401ACAP SUB-ASSY, RADIATOR RESERVE TANK

main16401-36020iM15AFKS..MXPA1#202002-202401

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main16377-K0010iM15AFKS..MXPA1#202401

main16377-K0020iM15AFXE..MXPH10,15202002

main16377-K0040i1KRFE..KSP210202401

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i1KRFE..KSP210202401

16471CAP SUB-ASSY, RESERVE TANK

main16471-23010i1KRFE..KSP210202002-202401

16502FILLER SUB-ASSY, WATER

main16502-15020iM15AFKS..MXPA1#202401

main16502-15030iM15AFXE..MXPH14,17202401

16523ACUSHION, RADIATOR SUPPORT

main16523-37010×2iM15AFKS..MXPA1#202002-202401

16535SUPPORT, RADIATOR, LOWER

main90480-40021×2i1KRFE..KSP210202401

16571BHOSE, SLIT(FOR RADIATOR HOSE)

main96136-43901i1KRFE..KSP210202401

16571CHOSE, RADIATOR, NO.1

main16571-15190iM15AFKS..MXPA1#202002-202401

main16571-15200iM15AFXE..MXPH10,15202002

main16571-40070i1KRFE..KSP210202002-202401

16571DCLIP, RADIATOR HOSE, NO.1

main90466-40001×2iM15#..MXPA1#,MXPH14,17202401

main96136-43601i1KRFE..KSP210202401

16572DHOSE, RADIATOR, NO.2

main16572-15220iM15AFKS..MXPA1#202401

main16572-15230iM15AFXE..MXPH10,15202002

main16572-40060i1KRFE..KSP210202002-202401

16572ECLIP, RADIATOR HOSE, NO.2

main90466-40001×2iM15#..MXPA1#,MXPH14,17202401

main96136-43601×2i1KRFE..KSP210202401

16573BHOSE, RADIATOR, NO.3

main16573-15010iM15AFKS..MXPA1#202002-202401

main16573-15020iM15AFXE..MXPH10,15202002

main16573-40030i1KRFE..KSP210202002-202401

16573CCLAMP OR CLIP, RADIATOR HOSE, NO.3

main90466-43002×2i1KRFE..KSP210202401

16574HOSE, RADIATOR, NO.4

main16574-40020i1KRFE..KSP210202401

16574ACLIP, RADIATOR HOSE, NO.4

main90466-40001×2i1KRFE..KSP210202002-202401

16577CPIPE, RADIATOR

main16577-21050i1KRFE..KSP210202002-202401

16581CCLAMP, HOSE(FOR RADIATOR HOSE NO.2)

main16581-25030i1KRFE..KSP210202002-202401

16711SHROUD, FAN

main16711-15290iM15AFKS..MXPA1#202401

main16711-15300iM15AFXE..MXPH10,15202002

main16711-40060i1KRFE..KSP210202002-202401

9009905164

main90099-05164

9613641901

main96136-41901

30 parts on this diagram · 7 diagrams in section
