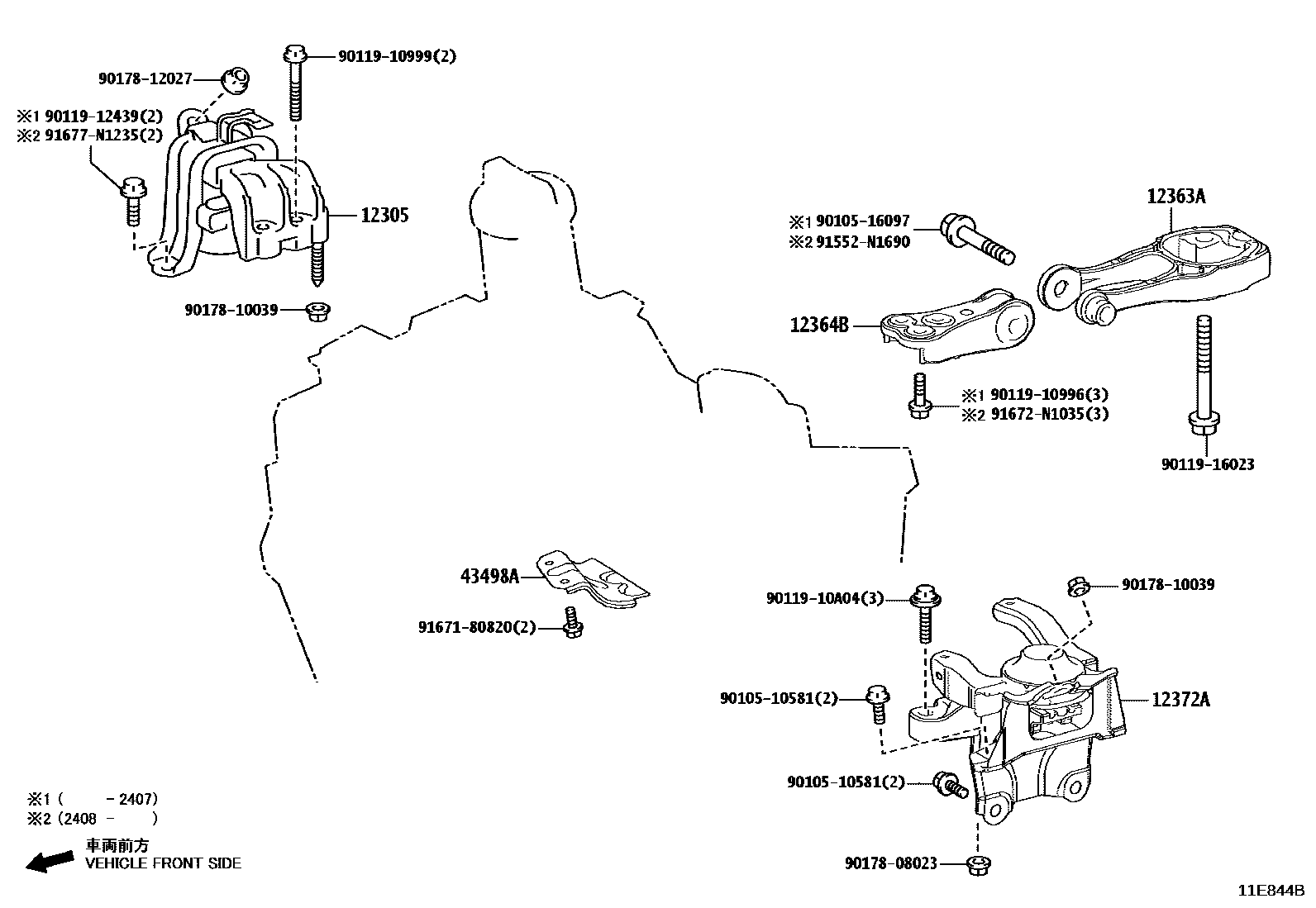

MOUNTING

0001 1 0002 1 0003 1 0004 1 0005 1

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-15090iM15AFXE..MXPH10,15202002

main12305-15100iM15AFKS..MXPA10202002-202401

main12305-15110iM15AFKS..MXPA15202003-202401

main12305-40131i1KRFE..KSP210202002-202401

12363AROD, ENGINE MOVING CONTROL

main12363-15030iM15#..MXPA1#,MXPH1#..CVT202002-202109

main12363-15040iM15AFKS..MXPA10..6F202002-202401

main12363-15060i1KRFE..KSP210202110-202401

12364BROD, ENGINE MOVING CONTROL, NO.2

main12364-15030iM15AFXE..MXPH10,15202002

main12364-15040iM15AFKS..MXPA10..CVT202002-202401

main12364-15050iM15AFKS..MXPA10..6F202002-202401

main12364-15060iM15AFKS..MXPA15202003-202401

main12364-40060i1KRFE..KSP210202002-202401

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-15270iM15AFXE..MXPH14,17202002

main12372-15281iM15AFKS..MXPA10..CVT202002-202401

main12372-15291iM15AFKS..MXPA15202003-202401

main12372-40110i1KRFE..KSP210202002-202403

sub12372-40130

main12372-40130i1KRFE..KSP210202404-202411

main12372-F3050iM15AFKS..MXPA10..6F202002-202401

43498AINSULATOR, DRIVE SHAFT HEAT, NO.1

main43498-52120iKSP210202002-202401

9010510581

main90105-10581

9010516097

main90105-16097

9011910996

main90119-10996

9011910999

main90119-10999

9011910A04

main90119-10A04

9011912439

main90119-12439

9011916023

main90119-16023

9017808023

main90178-08023

9017810039

main90178-10039

9017812027

main90178-12027

91552N1690

main91552-N1690

9167180820

main91671-80820

91672N1035

main91672-N1035

91677N1235

main91677-N1235

19 parts on this diagram · 5 diagrams in section
