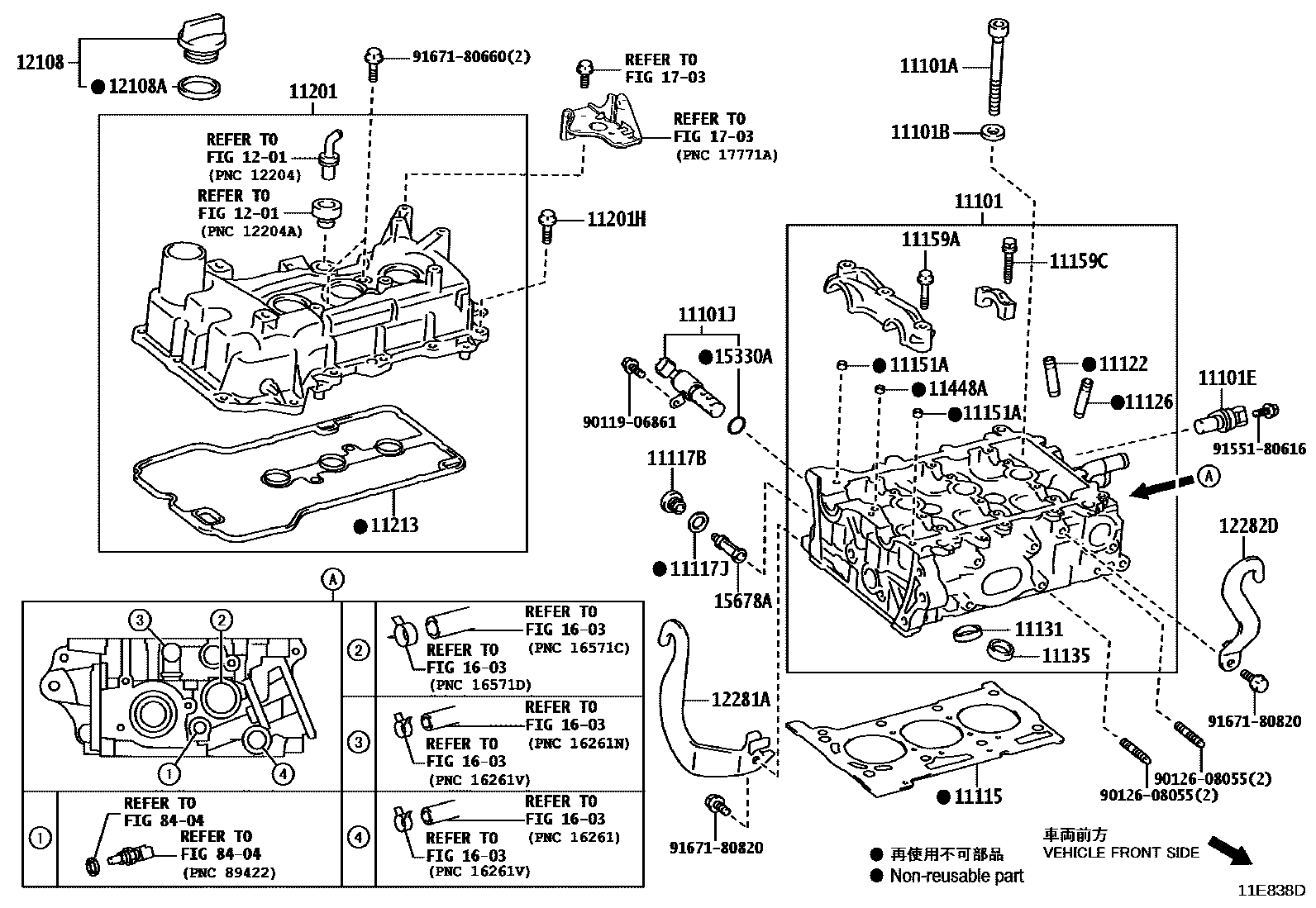

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
11101ABOLT(FOR CYLINDER HEAD SET)
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
11101ESENSOR, CAM POSITION
11101JVALVE ASSY, CAMSHAFT TIMING OIL CONTROL
11115GASKET, CYLINDER HEAD
11117BPLUG, W/HEAD TAPER SCREW, NO.2
11117JGASKET(FOR CYLINDER HEAD SCREW PLUG)
11122BUSH, INTAKE VALVE GUIDE
11131SEAT, INTAKE VALVE
11135SEAT, EXHAUST VALVE
11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
11159CBOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
11201COVER SUB-ASSY, CYLINDER HEAD
11201HBOLT(FOR CYLINDER HEAD COVER)
11213GASKET, CYLINDER HEAD COVER
11448AORIFICE, CYLINDER HEAD OIL
1201
12108CAP SUB-ASSY, OIL FILLER
12108AGASKET(FOR OIL FILLER CAP)
12281AHANGER, ENGINE, NO.1
12282DHANGER, ENGINE, NO.2
15330ARING, O(FOR CAM TIMING OIL CONTROL VALVE)
15678AFILTER, OIL CONTROL VALVE
1603
1703
8404
9011906861
main90119-06861
9012608055
main90126-08055
9155180616
main91551-80616
9167180660
main91671-80660
9167180820
main91671-80820
34 parts on this diagram · 5 diagrams in section
