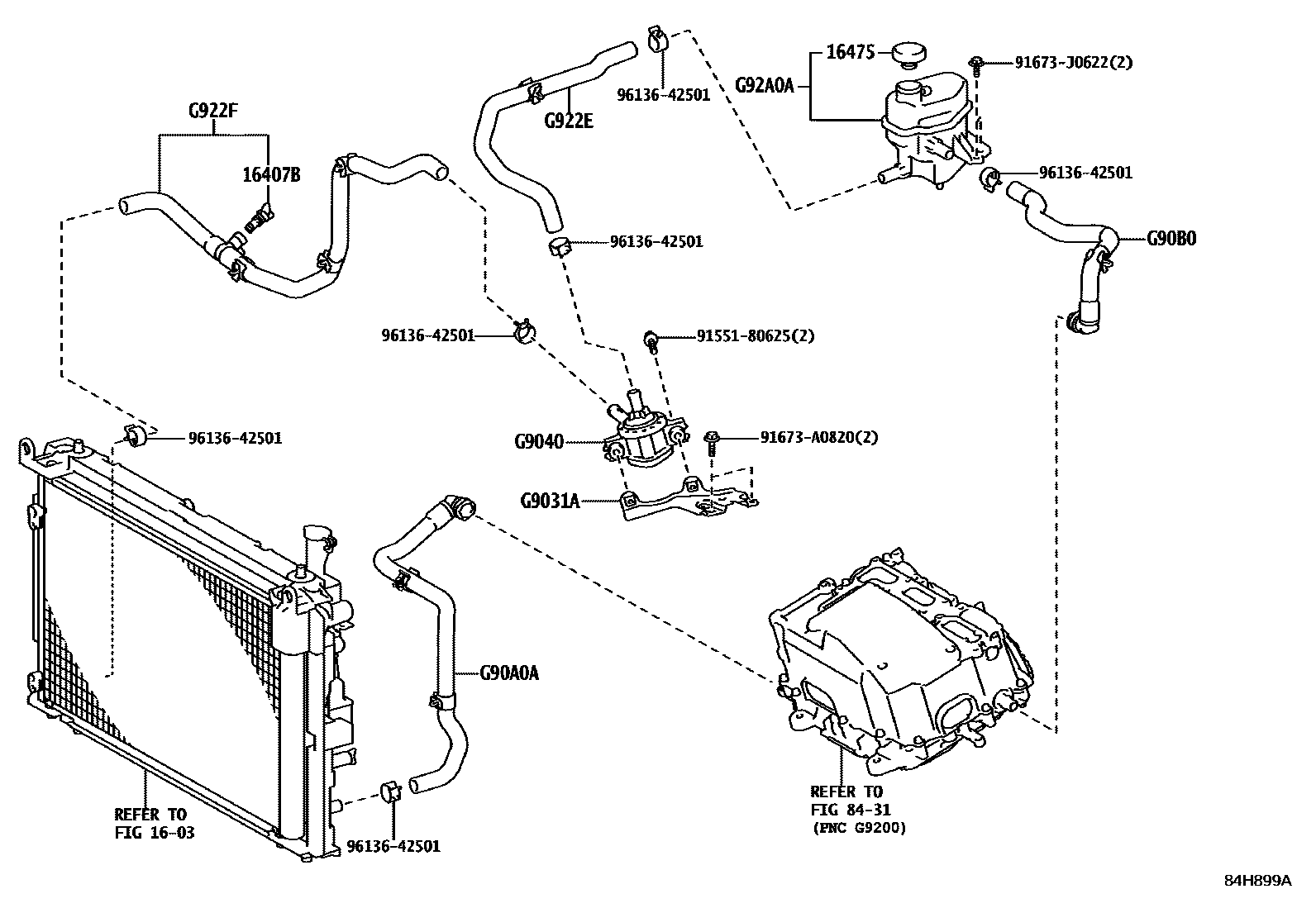

INVERTER COOLING

1603

16407BCOCK SUB-ASSY, RADIATOR DRAIN

main16407-64010i1NZFXE..NHP130..CBU201701

16475CAP, RESERVE TANK

main16475-28140i1NZFXE..NHP130..CBU201701

8431

G9031ABRACKET SUB-ASSY, HV WATER PUMP

mainG914152020iNHP130..CBU201701

G9040INVERTER WATER PUMP ASSY(W/MOTOR)

mainG904052020iNHP130..CBU201701

G90A0AHOSE ASSY, INVERTER COOLING, NO.1

mainG90A052040iNHP130..CBU201701

G90B0HOSE ASSY, INVERTER COOLING, NO.2

mainG90B052010iNHP130..CBU201701

G922EHOSE, HYBRID WATER PUMP INLET

mainG922E52010iNHP130..CBU201701

G922FHOSE, HYBRID WATER PUMP OUTLET, NO.1

mainG922F52010iNHP130..CBU201701

G92A0ATANK ASSY, INVERTER RESERVE

mainG91H015010iNHP130..CBU201701-201809

mainG92A052011iNHP130..CBU201810

9155180625

main91551-80625

91673A0820

main91673-A0820

91673J0622

main91673-J0622

9613642501

main96136-42501

15 parts on this diagram · 1 diagram in section
