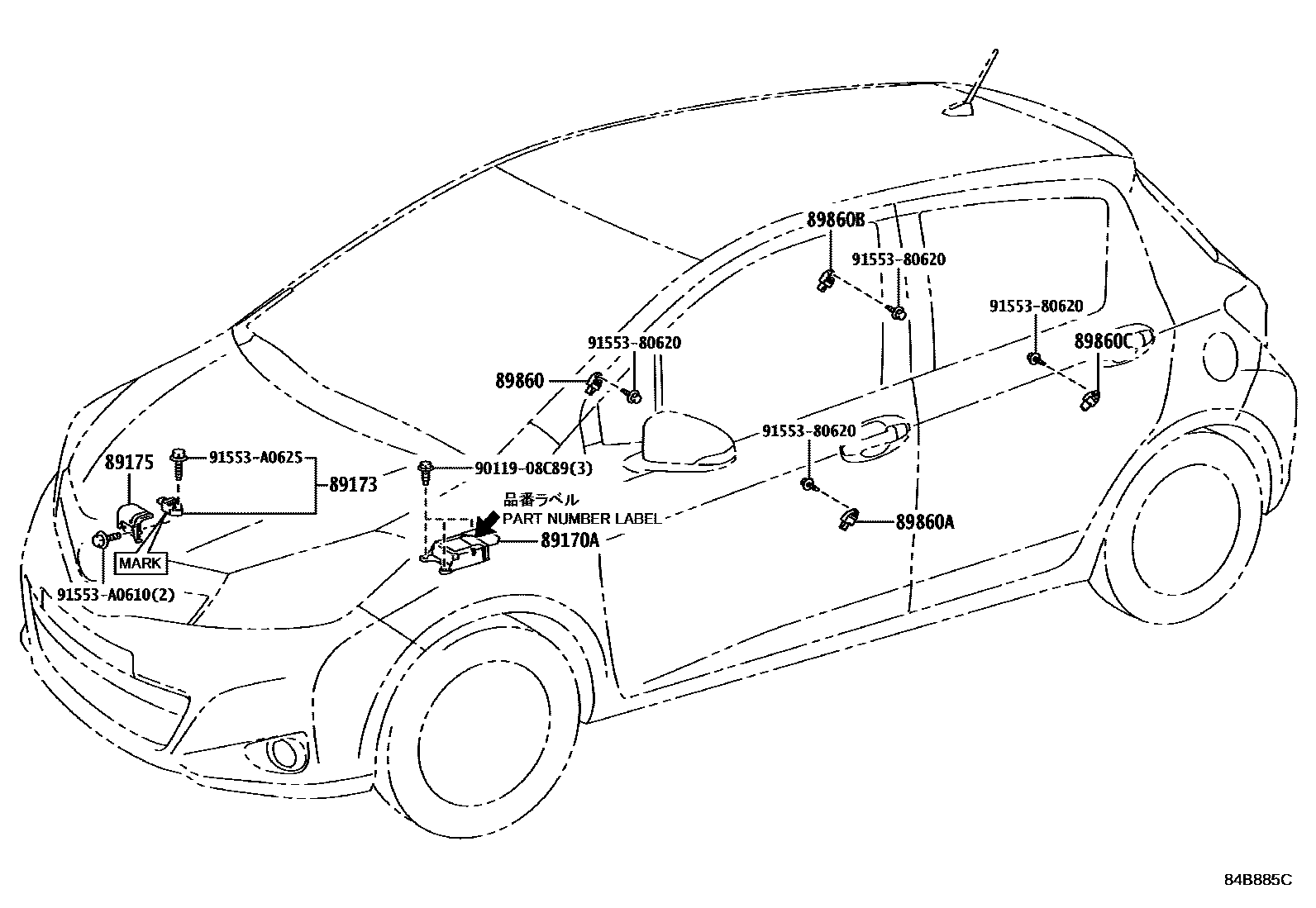

AIR BAG

89170ACOMPUTER ASSY, AIRBAG

main89170-52F10supersedes 89170-52F30iKSP130,NSP13#..(F,U)..CBU201204-201404

main89170-52F20supersedes 89170-52F40iNCP131..RS201012-201404

main89170-52L60supersedes 89170-52L70iKSP130,NCP131,NSP13#..CBU201109-201204

main89170-52N30supersedes 89170-52N40iKSP130,NCP131,NHP130,NSP13#..CBU201701-202001

89173SENSOR, AIRBAG, FRONT

main89173-59265iKSP130,NCP131,NSP13#..CBU201012-201109

main89173-79015iKSP130,NCP131,NSP13#..CBU201109-201204

89175BRACKET, AIRBAG SENSOR

main89175-52020iKSP130,NCP131,NSP13#..CBU201404-201701

89860SENSOR ASSY, SIDE AIRBAG, RH

main89831-52020iKSP130,NCP131,NSP13#..CBU201012-201109

main89831-52090iKSP130,NSP13#..(F,U)..CBU201109-201204

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89831-52020iKSP130,NCP131,NHP130,NSP13#..CBU201701

main89831-52090iKSP130,NSP13#..(F,U)..CBU201109-201204

89860BSENSOR ASSY, SIDE AIRBAG, RH, NO.2

main89831-52020iKSP130,NSP13#..(F,U)..CBU201012-201109

main89831-52090iKSP130,NCP131,NSP13#..CBU201109-201204

89860CSENSOR ASSY, SIDE AIRBAG, LH, NO.2

main89831-52020iKSP130,NCP131,NHP130,NSP13#..CBU201701

main89831-52090iKSP130,NSP13#..(F,U)..CBU201109-201204

9011908C89

main90119-08C89

9155380620

main91553-80620

91553A0610

main91553-A0610

91553A0625

main91553-A0625

11 parts on this diagram · 1 diagram in section
