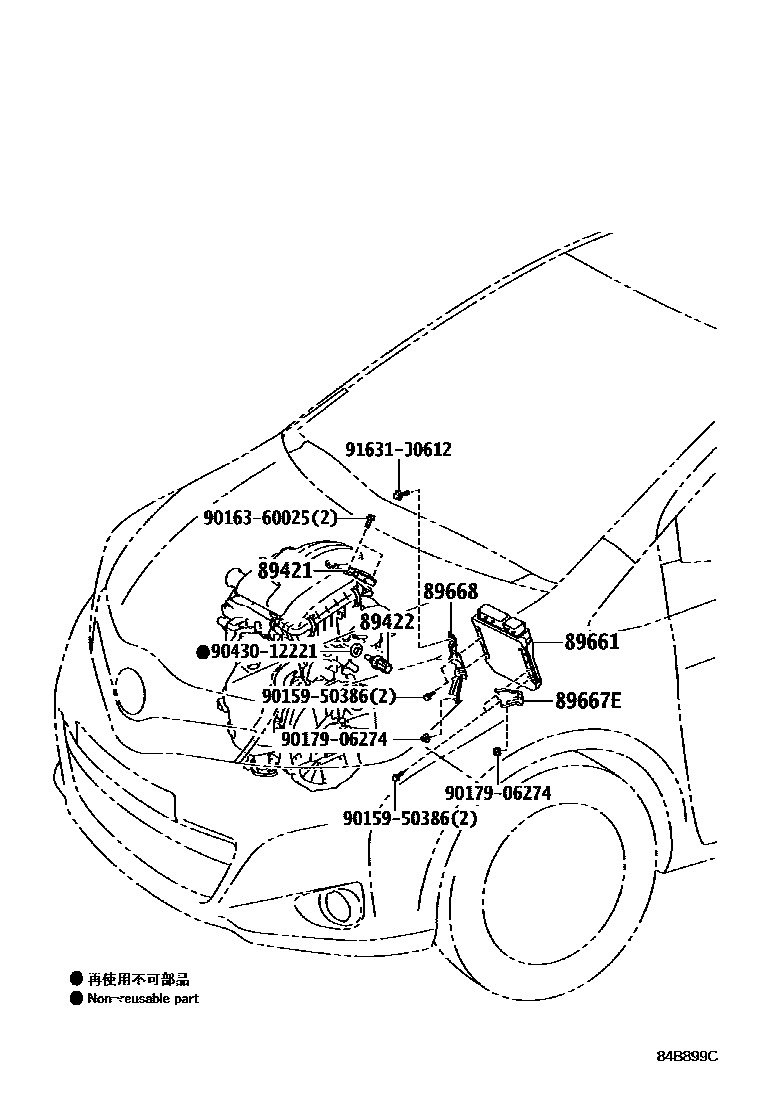

ELECTRONIC FUEL INJECTION SYSTEM
89421SENSOR ASSY, VACUUM (FOR E.F.I.)
89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89661COMPUTER, ENGINE CONTROL
sub89661-52S41
sub89661-52V71
sub89661-5C341
sub89661-5C361
sub89661-5C641
sub89661-5C641
sub89661-5C731
sub89661-5C731
sub89661-5CA21
89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1
89668BRACKET, ENGINE CONTROL COMPUTER, NO.2
9015950386
main90159-50386
9016360025
main90163-60025
9017906274
main90179-06274
9043012221
main90430-12221
91631J0612
main91631-J0612
10 parts on this diagram · 7 diagrams in section
